    PE Insulated, LSZH Sheathed, Overall Screened & Armoured Instrumentation Cables (Multicore)

    Application

    EN 50288-7 PE armour Multicore cables are generally use for indoor installation and suitable for wet and damp areas. The galvanized steel wire armour provides excellent protection. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

    Standards

    Basic design to EN 50288-7

    Fire Performance

    Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
    Reduced Fire Propagation(Vertically-mounted bundled wires & cable test) EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
    Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
    Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
    No Toxic gases NES 02-713; NF C 20-454
    Sunlight Resistance UL 1581 section 1200
    Oil Resistance ICEA S-73-532**

    Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation, *** denotes optional.

    Voltage Rating

    500V

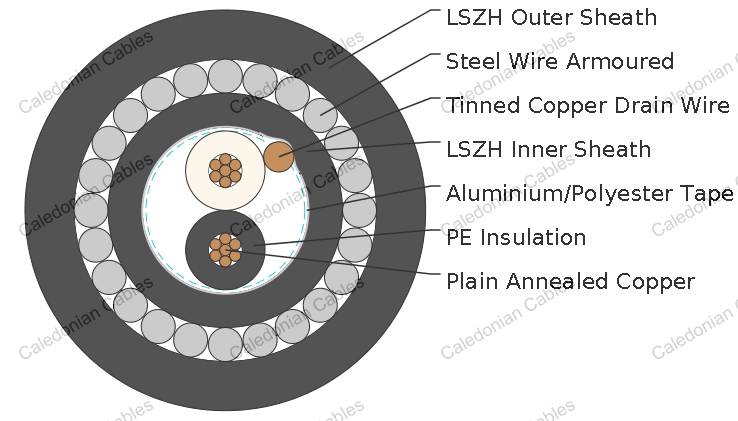

    Cable Construction

    • Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
    • Insulation: PE compound, EN 50290. 2-23.
    • Overall Screen: Aluminium/polyester tape with 0.5mm2?screen (7/0.3mm) tinned copper drain wire.
      Inner Sheath: LSZH compound
      Armouring: Galvanised steel wire
    • Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound typeSW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

    Colour Code

    • Insulation: Black numbered
    • Outer Sheath: Black, blue for intrinsically safe systems

    Physical and Thermal Properties

    • Temperature Range During Operation (Fixed State): -30°C – +90°C
    • Temperature Range During Installation (Mobile State): -5°C – +50°C
    • Minimum Bending Radius: 10 X Overall Diameter

    Electrical Roperties

    Conductor Area Size mm2 0.5 0.75 1.0 1.3 1.5 2.5
    Insulation thickness (nominal) mm 0.55 0.55 0.55 0.6 0.6 0.7
    Conductor resistance (20°C) Ω/km 36.0 24.5 18.1 13.9 12.1 7.4
    Insulation resistance (20°C) MΩ.km(Min.) 5000 5000 5000 5000 5000 2000
    Mutual Capacitance (1 kHz) pF/m(Max.) 115 115 115 115 115 2000
    Inductance mH/km(Max.) 1 1 1 1 1 1
    L / R (ratio) (max.) μH/Ω 25 25 25 40 40 10
    Operating voltage V 500 500 500 500 500 500
    Test Voltage Urms Core to Core V 2000 2000 2000 2000 2000 2000
    Core to Screen V 2000 2000 2000 2000 2000 2000

    Construction Parameterst

    Caledonian Cable Code RE-2Y(St)HSWAH
    No. of Cores x1xCross Section Nominal Insulation Thick- ness Nominal Inner Sheath Thick- ness Nominal
    Overall Diameter Over Inner Sheath    		 Nominal Armour Wire Diameter Nominal Outer Sheath Thick- ness Nominal Overall Diameter Approx. Weight
      No.x1xmm2 mm mm mm mm mm mm kg/km
    0.5mm2, Multicore
    RE-2Y(St)HSWAH 2C0.5 2x1x0.5 0.55 0.9 6.2 0.9 1.3 10.6 217
    RE-2Y(St)HSWAH 3C0.5 3x1x0.5 0.55 0.9 6.5 0.9 1.3 10.9 230
    RE-2Y(St)HSWAH 4C0.5 4x1x0.5 0.55 0.9 7.0 0.9 1.3 11.4 253
    RE-2Y(St)HSWAH 5C0.5 5x1x0.5 0.55 0.9 7.6 0.9 1.3 12.0 283
    RE-2Y(St)HSWAH 8C0.5 8x1x0.5 0.55 1.0 9.1 0.9 1.4 13.7 337
    RE-2Y(St)HSWAH 10C0.5 10x1x0.5 0.55 1.0 10.4 0.9 1.4 15.0 399
    RE-2Y(St)HSWAH 12C0.5 12x1x0.5 0.55 1.0 10.7 0.9 1.4 15.3 442
    RE-2Y(St)HSWAH 14C0.5 14x1x0.5 0.55 1.0 11.3 0.9 1.4 15.9 474
    RE-2Y(St)HSWAH 16C0.5 16x1x0.5 0.55 1.1 11.8 0.9 1.4 16.4 505
    RE-2Y(St)HSWAH 20C0.5 20x1x0.5 0.55 1.1 13.3 0.9 1.5 18.1 569
    RE-2Y(St)HSWAH 24C0.5 24x1x0.5 0.55 1.1 14.7 0.9 1.5 19.5 659
    RE-2Y(St)HSWAH 27C0.5 27x1x0.5 0.55 1.2 15.0 0.9 1.5 19.8 808
    RE-2Y(St)HSWAH 30C0.5 30x1x0.5 0.55 1.2 15.7 0.9 1.5 20.5 848
    RE-2Y(St)HSWAH 37C0.5 37x1x0.5 0.55 1.2 16.9 0.9 1.6 21.9 963
    RE-2Y(St)HSWAH 40C0.5 40x1x0.5 0.55 1.2 17.6 1.25 1.6 23.3 1014
    0.75mm2, Multicore
    RE-2Y(St)HSWAH 2C0.75 2x1x0.75 0.55 0.9 6.5 0.9 1.3 10.9 345
    RE-2Y(St)HSWAH 3C0.75 3x1x0.75 0.55 0.9 6.9 0.9 1.3 11.3 420
    RE-2Y(St)HSWAH 4C0.75 4x1x0.75 0.55 0.9 7.4 0.9 1.3 11.8 507
    RE-2Y(St)HSWAH 5C0.75 5x1x0.75 0.55 0.9 8.1 0.9 1.4 12.7 609
    RE-2Y(St)HSWAH 8C0.75 8x1x0.75 0.55 1.0 9.7 0.9 1.4 14.3 846
    RE-2Y(St)HSWAH 10C0.75 10x1x0.75 0.55 1.0 11.1 0.9 1.4 15.7 1035
    RE-2Y(St)HSWAH 12C0.75 12x1x0.75 0.55 1.0 11.5 0.9 1.4 16.1 1183
    RE-2Y(St)HSWAH 14C0.75 14x1x0.75 0.55 1.1 12.2 0.9 1.5 17.0 1334
    RE-2Y(St)HSWAH 16C0.75 16x1x0.75 0.55 1.1 12.9 0.9 1.5 17.7 1495
    RE-2Y(St)HSWAH 20C0.75 20x1x0.75 0.55 1.1 14.3 0.9 1.5 19.1 1823
    RE-2Y(St)HSWAH 24C0.75 24x1x0.75 0.55 1.2 16.0 0.9 1.5 20.8 2258
    RE-2Y(St)HSWAH 27C0.75 27x1x0.75 0.55 1.2 16.3 0.9 1.6 21.3 2482
    RE-2Y(St)HSWAH 30C0.75 30x1x0.75 0.55 1.2 16.9 0.9 1.6 21.9 2713
    RE-2Y(St)HSWAH 37C0.75 37x1x0.75 0.55 1.2 18.2 1.25 1.6 23.9 3231
    RE-2Y(St)HSWAH 40C0.75 40x1x0.75 0.55 1.3 19.1 1.25 1.6 24.8 3483
    1.0mm2, Multicore
    RE-2Y(St)HSWAH 2C1.0 2x1x1.0 0.55 0.9 6.9 0.9 1.3 11.3 247
    RE-2Y(St)HSWAH 3C1.0 3x1x1.0 0.55 0.9 7.3 0.9 1.3 11.7 270
    RE-2Y(St)HSWAH 4C1.0 4x1x1.0 0.55 0.9 7.9 0.9 1.4 12.5 299
    RE-2Y(St)HSWAH 5C1.0 5x1x1.0 0.55 0.9 8.6 0.9 1.4 13.2 342
    RE-2Y(St)HSWAH 8C1.0 8x1x1.0 0.55 1.0 10.3 0.9 1.4 14.9 417
    RE-2Y(St)HSWAH 10C1.0 10x1x1.0 0.55 1.0 11.9 0.9 1.4 16.5 514
    RE-2Y(St)HSWAH 12C1.0 12x1x1.0 0.55 1.0 12.2 0.9 1.5 17.0 548
    RE-2Y(St)HSWAH 14C1.0 14x1x1.0 0.55 1.1 13.0 0.9 1.5 17.8 590
    RE-2Y(St)HSWAH 16C1.0 16x1x1.0 0.55 1.1 13.7 0.9 1.5 18.5 649
    RE-2Y(St)HSWAH 20C1.0 20x1x1.0 0.55 1.1 15.2 0.9 1.5 20.0 864
    RE-2Y(St)HSWAH 24C1.0 24x1x1.0 0.55 1.2 17.0 0.9 1.6 22.0 1005
    RE-2Y(St)HSWAH 27C1.0 27x1x1.0 0.55 1.2 17.4 1.25 1.6 23.1 1058
    RE-2Y(St)HSWAH 30C1.0 30x1x1.0 0.55 1.2 18.0 1.25 1.6 23.7 1113
    RE-2Y(St)HSWAH 37C1.0 37x1x1.0 0.55 1.2 19.6 1.25 1.6 25.3 1271
    RE-2Y(St)HSWAH 40C1.0 40x1x1.0 0.55 1.3 20.4 1.25 1.7 26.3 1351
    1.3mm2, Multicore
    RE-2Y(St)HSWAH 2C1.3 2x1x1.3 0.6 0.9 7.4 0.9 1.3 11.8 275
    RE-2Y(St)HSWAH 3C1.3 3x1x1.3 0.6 0.9 7.9 0.9 1.3 12.3 301
    RE-2Y(St)HSWAH 4C1.3 4x1x1.3 0.6 0.9 8.5 0.9 1.4 13.1 340
    RE-2Y(St)HSWAH 5C1.3 5x1x1.3 0.6 1.0 9.5 0.9 1.4 14.1 383
    RE-2Y(St)HSWAH 8C1.3 8x1x1.3 0.6 1.0 11.2 0.9 1.4 15.8 436
    RE-2Y(St)HSWAH 10C1.3 10x1x1.3 0.6 1.1 13.2 0.9 1.5 18.0 578
    RE-2Y(St)HSWAH 12C1.3 12x1x1.3 0.6 1.1 13.6 0.9 1.5 18.4 633
    RE-2Y(St)HSWAH 14C1.3 14x1x1.3 0.6 1.1 14.3 0.9 1.5 19.1 698
    RE-2Y(St)HSWAH 16C1.3 16x1x1.3 0.6 1.1 15.0 0.9 1.5 19.8 870
    RE-2Y(St)HSWAH 20C1.3 20x1x1.3 0.6 1.2 16.9 0.9 1.6 21.9 1014
    RE-2Y(St)HSWAH 24C1.3 24x1x1.3 0.6 1.2 18.7 1.25 1.6 24.4 1163
    RE-2Y(St)HSWAH 27C1.3 27x1x1.3 0.6 1.3 19.3 1.25 1.6 25.0 1227
    RE-2Y(St)HSWAH 30C1.3 30x1x1.3 0.6 1.3 20.0 1.25 1.6 25.7 1305
    RE-2Y(St)HSWAH 37C1.3 37x1x1.3 0.6 1.3 21.6 1.25 1.7 27.5 1504
    RE-2Y(St)HSWAH 40C1.3 40x1x1.3 0.6 1.4 22.7 1.25 1.7 28.6 1584
    1.5mm2, Multicore
    RE-2Y(St)HSWAH 2C1.5 2x1x1.5 0.6 0.9 7.7 0.9 1.3 12.1 279
    RE-2Y(St)HSWAH 3C1.5 3x1x1.5 0.6 0.9 8.1 0.9 1.4 12.7 312
    RE-2Y(St)HSWAH 4C1.5 4x1x1.5 0.6 0.9 8.8 0.9 1.4 13.4 358
    RE-2Y(St)HSWAH 5C1.5 5x1x1.5 0.6 1.0 9.8 0.9 1.4 14.4 403
    RE-2Y(St)HSWAH 8C1.5 8x1x1.5 0.6 1.0 11.6 0.9 1.4 16.2 526
    RE-2Y(St)HSWAH 10C1.5 10x1x1.5 0.6 1.1 13.7 0.9 1.5 18.5 630
    RE-2Y(St)HSWAH 12C1.5 12x1x1.5 0.6 1.1 14.1 0.9 1.5 18.9 669
    RE-2Y(St)HSWAH 14C1.5 14x1x1.5 0.6 1.1 14.8 0.9 1.5 19.6 742
    RE-2Y(St)HSWAH 16C1.5 16x1x1.5 0.6 1.1 15.6 0.9 1.5 20.4 925
    RE-2Y(St)HSWAH 20C1.5 20x1x1.5 0.6 1.2 17.6 1.25 1.6 23.3 1090
    RE-2Y(St)HSWAH 24C1.5 24x1x1.5 0.6 1.3 19.6 1.25 1.6 25.3 1218
    RE-2Y(St)HSWAH 27C1.5 27x1x1.5 0.6 1.3 20.1 1.25 1.6 25.8 1320
    RE-2Y(St)HSWAH 30C1.5 30x1x1.5 0.6 1.3 20.8 1.25 1.7 26.7 1385
    RE-2Y(St)HSWAH 37C1.5 37x1x1.5 0.6 1.4 22.6 1.25 1.7 28.5 1586
    RE-2Y(St)HSWAH 40C1.5 40x1x1.5 0.6 1.4 23.6 1.25 1.7 29.5 1723
    2.5mm2, Multicore
    RE-2Y(St)HSWAH 2C2.5 2x1x2.5 0.7 0.9 8.9 0.9 1.4 13.5 370
    RE-2Y(St)HSWAH 3C2.5 3x1x2.5 0.7 1.0 9.7 0.9 1.4 14.3 387
    RE-2Y(St)HSWAH 4C2.5 4x1x2.5 0.7 1.0 10.5 0.9 1.4 15.1 442
    RE-2Y(St)HSWAH 5C2.5 5x1x2.5 0.7 1.0 11.9 0.9 1.4 16.5 568
    RE-2Y(St)HSWAH 8C2.5 8x1x2.5 0.7 1.1 13.9 0.9 1.5 18.7 729
    RE-2Y(St)HSWAH 10C2.5 10x1x2.5 0.7 1.2 16.3 0.9 1.6 21.3 957
    RE-2Y(St)HSWAH 12C2.5 12x1x2.5 0.7 1.2 16.9 0.9 1.6 21.9 1049
    RE-2Y(St)HSWAH 14C2.5 14x1x2.5 0.7 1.2 17.7 1.25 1.6 23.4 1198
    RE-2Y(St)HSWAH 16C2.5 16x1x2.5 0.7 1.3 18.9 1.25 1.6 24.6 1302
    RE-2Y(St)HSWAH 20C2.5 20x1x2.5 0.7 1.3 21.1 1.25 1.7 27.0 1485
    RE-2Y(St)HSWAH 24C2.5 24x1x2.5 0.7 1.4 23.6 1.25 1.7 29.5 1718
    RE-2Y(St)HSWAH 27C2.5 27x1x2.5 0.7 1.4 24.1 1.25 1.8 30.2 1895
    RE-2Y(St)HSWAH 30C2.5 30x1x2.5 0.7 1.5 25.2 1.25 1.8 31.3 2166
    RE-2Y(St)HSWAH 37C2.5 37x1x2.5 0.7 1.5 27.2 1.25 1.8 33.3 2505
    RE-2Y(St)HSWAH 40C2.5 40x1x2.5 0.7 1.6 28.5 1.25 1.9 34.8 2723
