PE Insulated, LSZH Sheathed, Individual and Overall Screened & Armoured Instrumentation Cables (Multipair)

Application

The armoured LSZH sheathed cables are generally used when the risk of mechanical damage is increased. The galvanized steel wire armour provides excellent protection. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for theinterconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

Standards

Basic design to EN 50288-7

Fire Performance

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduced Fire Propagation(Vertically-mounted bundled wires & cable test)	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2; BS 7622-1&2
No Toxic gases	NES 02-713; NF C 20-454
Sunlight Resistance	UL 1581 section 1200
Oil Resistance	ICEA S-73-532**

Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation, *** denotes optional.

Voltage Rating

300V

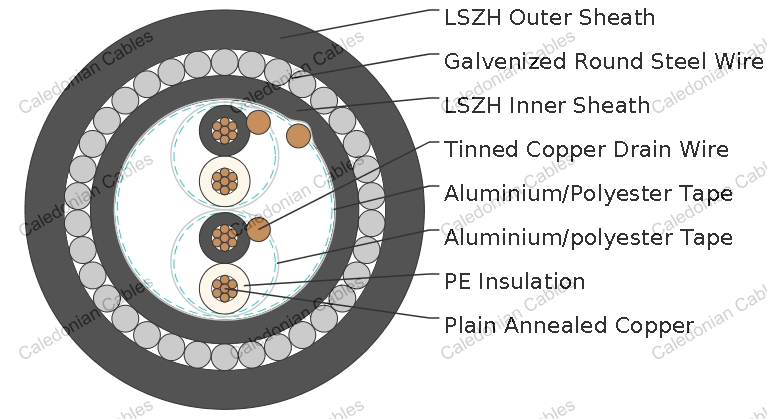

Cable Construction

Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: PE compound, EN 50290. 2-23.
Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
Individual Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm2
Binder tape: PETP transparent tape
Overall Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm2
Inner Sheath: LSZH(Low Smoke Zero Halogen) sheath
Amouring: Galvanized steel wire armour
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

Colour Code

Insulation: Black / White, continuously numbered on white core(1, 2..)for multipair.
Outer Sheath: Black or Blue for intrinsically safe systems

Physical and Thermal Properties

Temperature Range During Operation (Fixed State): -30°C – +90°C
Temperature Range During Installation (Mobile State): -20°C – +50°C
Minimum Bending Radius:10 X Overall Diameter

Electrical Roperties

Conductor Area Size		mm2	0.5	0.75	1.0	1.3	1.5
Insulation thickness (nominal)		mm	0.4	0.4	0.4	0.45	0.45
Conductor resistance (20°C)		Ω/km	36.7	25	18.5	14.2	12.3
Insulation resistance (20°C)		MΩ.km(Min.)	5000
Mutual Capacitance (1 kHz)		pF/m(Max.)	115
Inductance		mH/km (Max.)	1
L / R (ratio) (max.)		μH/Ω	25	25	25	40	40
Operating voltage Urms		V	300
Test Voltage	Core to Core	V	1500
	Core to Screen	V	1500

Construction Parameterst

Caledonian Cable Code	RE-2X(St)HSWAH PiMF
	No. of Pairsx2 xCross Section	Nominal Insulation Thick -ness	Nominal Inner Sheath Thick -ness	Nominal Overall Diameter Over InnerSheath	Nominal Armour Wire Diameter	Nominal Outer Sheath Thick -ness	Nominal Overall Diameter	Approx. Weight
	No.x2xmm2	mm	mm	mm	mm	mm	mm	kg/km
0.5mm2, Multipair
RE-2X(St)HSWAH PiMF 2P0.5	2x2x0.5	0.35	0.9	8.7	0.9	1.4	13.3	311
RE-2X(St)HSWAH PiMF 4P0.5	4x2x0.5	0.35	1.0	10.2	0.9	1.4	14.8	374
RE-2X(St)HSWAH PiMF 5P0.5	5x2x0.5	0.35	1.0	11.2	0.9	1.4	15.8	451
RE-2X(St)HSWAH PiMF 6P0.5	6x2x0.5	0.35	1.0	12.1	0.9	1.6	16.9	484
RE-2X(St)HSWAH PiMF 8P0.5	8x2x0.5	0.35	1.1	13.1	0.9	1.6	17.9	563
RE-2X(St)HSWAH PiMF 10P0.5	10x2x0.5	0.35	1.2	15.1	0.9	1.5	19.9	782
RE-2X(St)HSWAH PiMF 12P0.5	12x2x0.5	0.35	1.2	15.7	0.9	1.5	20.5	804
RE-2X(St)HSWAH PiMF 16P0.5	16x2x0.5	0.35	1.2	17.8	1.25	1.6	23.5	970
RE-2X(St)HSWAH PiMF 20P0.5	20x2x0.5	0.35	1.3	19.7	1.25	1.7	25.6	1145
RE-2X(St)HSWAH PiMF 24P0.5	24x2x0.5	0.35	1.4	21.5	1.25	1.7	27.4	1272
0.75mm2, Multipair
RE-2X(St)HSWAH PiMF 2P0.75	2x2x0.75	0.38	1.0	9.7	0.9	1.4	14.3	342
RE-2X(St)HSWAH PiMF 4P0.75	3x2x0.75	0.38	1.0	11.2	0.9	1.4	15.8	439
RE-2X(St)HSWAH PiMF 5P0.75	4x2x0.75	0.38	1.1	12.5	0.9	1.5	17.3	498
RE-2X(St)HSWAH PiMF 6P0.75	5x2x0.75	0.38	1.1	13.6	0.9	1.5	18.4	565
RE-2X(St)HSWAH PiMF 8P0.75	8x2x0.75	0.38	1.1	14.4	0.9	1.5	19.2	639
RE-2X(St)HSWAH PiMF 10P0.75	10x2x0.75	0.38	1.2	16.6	1.25	1.6	22.3	878
RE-2X(St)HSWAH PiMF 12P0.75	12x2x0.75	0.38	1.2	17.4	1.25	1.6	23.1	944
RE-2X(St)HSWAH PiMF 16P0.75	16x2x0.75	0.38	1.3	19.8	1.25	1.7	25.7	1132
RE-2X(St)HSWAH PiMF 20P0.75	20x2x0.75	0.38	1.4	22.0	1.25	1.7	27.9	1329
RE-2X(St)HSWAH PiMF 24P0.75	24x2x0.75	0.38	1.5	24.0	1.25	1.8	30.1	1488
1.0mm2, Multipair
RE-2X(St)HSWAH PiMF 2P1.0	2x2x1.0	0.4	1.0	10.4	0.9	1.4	15.0	377
RE-2X(St)HSWAH PiMF 4P1.0	3x2x1.0	0.4	1.0	12.1	0.9	1.4	16.7	502
RE-2X(St)HSWAH PiMF 5P1.0	4x2x1.0	0.4	1.1	13.5	0.9	1.5	18.3	567
RE-2X(St)HSWAH PiMF 6P1.0	5x2x1.0	0.4	1.1	14.7	0.9	1.5	19.5	658
RE-2X(St)HSWAH PiMF 8P1.0	8x2x1.0	0.4	1.2	15.8	0.9	1.5	20.6	865
RE-2X(St)HSWAH PiMF 10P1.0	10x2x1.0	0.4	1.2	18.0	1.25	1.6	23.7	994
RE-2X(St)HSWAH PiMF 12P1.0	12x2x1.0	0.4	1.3	19.0	1.25	1.7	24.7	1112
RE-2X(St)HSWAH PiMF 16P1.0	16x2x1.0	0.4	1.3	21.5	1.25	1.7	27.4	1363
RE-2X(St)HSWAH PiMF 20P1.0	20x2x1.0	0.4	1.4	23.9	1.25	1.7	29.8	1512
RE-2X(St)HSWAH PiMF 24P1.0	24x2x1.0	0.4	1.5	26.1	1.25	1.8	32.2	1996
1.3mm2, Multipair
RE-2X(St)HSWAH PiMF 2P1.3	2x2x1.3	0.45	1.0	11.4	0.9	1.4	16.0	452
RE-2X(St)HSWAH PiMF 4P1.3	3x2x1.3	0.45	1.1	13.4	0.9	1.5	18.2	577
RE-2X(St)HSWAH PiMF 5P1.3	4x2x1.3	0.45	1.1	14.8	0.9	1.5	19.6	647
RE-2X(St)HSWAH PiMF 6P1.3	5x2x1.3	0.45	1.2	16.3	0.9	1.6	21.3	858
RE-2X(St)HSWAH PiMF 8P1.3	8x2x1.3	0.45	1.3	17.6	1.25	1.6	23.3	982
RE-2X(St)HSWAH PiMF 10P1.3	10x2x1.3	0.45	1.3	20.0	1.25	1.7	25.9	1153
RE-2X(St)HSWAH PiMF 12P1.3	12x2x1.3	0.45	1.4	21.1	1.25	1.7	27.0	1287
RE-2X(St)HSWAH PiMF 16P1.3	16x2x1.3	0.45	1.5	24.1	1.25	1.8	30.2	1564
RE-2X(St)HSWAH PiMF 20P1.3	20x2x1.3	0.45	1.6	26.8	1.25	1.9	33.1	1960
RE-2X(St)HSWAH PiMF 24P1.3	24x2x1.3	0.45	1.7	29.2	1.25	2.0	36.4	2356
1.5mm2, Multipair
RE-2X(St)HSWAH PiMF 2P1.5	2x2x1.5	0.45	1.0	11.8	0.9	1.5	16.6	475
RE-2X(St)HSWAH PiMF 4P1.5	3x2x1.5	0.45	1.1	13.9	0.9	1.5	18.7	616
RE-2X(St)HSWAH PiMF 5P1.5	4x2x1.5	0.45	1.2	15.5	0.9	1.5	20.3	819
RE-2X(St)HSWAH PiMF 6P1.5	5x2x1.5	0.45	1.2	16.9	1.25	1.6	22.6	941
RE-2X(St)HSWAH PiMF 8P1.5	8x2x1.5	0.45	1.3	18.2	1.25	1.7	24.1	1039
RE-2X(St)HSWAH PiMF 10P1.5	10x2x1.5	0.45	1.4	21.0	1.25	1.7	26.9	1242
RE-2X(St)HSWAH PiMF 12P1.5	12x2x1.5	0.45	1.4	21.9	1.25	1.7	27.8	1387
RE-2X(St)HSWAH PiMF 16P1.5	16x2x1.5	0.45	1.5	25.1	1.25	1.8	31.2	1935
RE-2X(St)HSWAH PiMF 20P1.5	20x2x1.5	0.45	1.6	27.8	1.25	1.9	34.8	2227
RE-2X(St)HSWAH PiMF 24P1.5	24x2x1.5	0.45	1.7	30.4	1.25	2.0	37.6	2545
