These flexible shielded cables with braided copper wire and are resistant to mineral oils. For use inside buildings, especially for connecting parts of machines used for manufacturing, including machine tools. Recommended in installations requiring electromagnetic protection to avoid the generation of parasite currents in other circuits. Easy to handle during installation and laying, they are rodent-proof.
UNE 21031-13
IEC 60332-1
IEC 60332-1
EN 50265
IEC 60502
IEC 60228

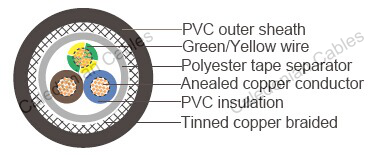

Flexible annealed copper conductor
Class 5 in accordance with IEC 60228.
Polyvinyl chloride (PVC)
Color coded to HD 308
Polyester tape separator
High coverage tinned copper braided screen
Acrylic polyvinyl chloride (flexible PVC)
| Working voltage | 300/500 volts; 600/1000volts |
| Test voltage | 2500 volts(600/1000 volts) |
| Minimum bending radius | 5x Ø |
| Working temperature | -15°C to +70°C |
| Short circuit temperature | +160°C |
| Insulation resistance | 20 MΩ x km |
| Flame retardant | IEC 60332-1, EN 50265-2-1 |
| Non-flame propagating | IEC 60332-3, EN 50266-2 |
| AWG | No. of Cores × Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|
| # × mm² | mm | kg/km | |
| 300/500V | |||
| 17(32/32) | 2x1 | 7.7 | 76 |
| 16(30/30) | 2x1.5 | 8.6 | 95 |
| 14(50/30) | 2x2.5 | 9.8 | 121 |
| 17(32/32) | 3G1 | 8.1 | 88 |
| 16(30/30) | 3G1.5 | 9.3 | 124 |
| 14(50/30) | 3G2.5 | 10.9 | 174 |
| 17(32/32) | 4G1 | 8.8 | 114 |
| 16(30/30) | 4G1.5 | 9.8 | 138 |
| 14(50/30) | 4G2.5 | 11.8 | 213 |
| 17(32/32) | 5G1 | 9.6 | 140 |
| 16(30/30) | 5G1.5 | 11.1 | 185 |
| 17(32/32) | 6G1 | 10.8 | 172 |
| 16(30/30) | 6G1.5 | 12.2 | 224 |
| 17(32/32) | 8G1 | 12 | 218 |
| 16(30/30) | 8G1.5 | 14 | 288 |
| 17(32/32) | 10G1 | 13.1 | 239 |
| 17(32/32) | 12G1 | 13.4 | 271 |
| 16(30/30) | 12G1.5 | 15.7 | 358 |
| 17(32/32) | 16G1 | 14.9 | 350 |
| 17(32/32) | 19G1 | 15.9 | 402 |
| 16(30/30) | 24G1.5 | 22 | 723 |
| 600/1000V | |||
| 14(50/30) | 2x2.5 | 9.6 | 121 |
| 14(50/30) | 3G2.5 | 10.8 | 162 |
| 14(50/30) | 4G2.5 | 11.7 | 204 |
| 14(50/30) | 5G2.5 | 12.8 | 243 |
| 14(50/30) | 7G2.5 | 13.8 | 305 |
| 12(56/28) | 4G4.0 | 12.6 | 272 |
| 10(84/28) | 4G6.0 | 14.4 | 358 |
| 8(80/26) | 4G10 | 17.5 | 570 |
| 6(128/26) | 4G16 | 20.1 | 814 |
| 4(200/26) | 4G25 | 24.5 | 1224 |
| 2(280/26) | 4G35 | 28.2 | 1654 |
| 1(400/26) | 4G50 | 32.3 | 2249 |
| 2/0(356/24) | 4G70 | 37.5 | 3102 |
| 3/0(485/24) | 4G95 | 42.5 | 3931 |
