    RZ1FZ1-K(AS) / RZ1FAZ1-K(AS)

    Application and Description

    The armoured and halogen free cable is a high security cable. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended for public places, in installations in general where the cable is subject to risk of mechanical aggression

    Standard and Approval

    UNE 21123-4

    IEC 60502

    EN 60332-1

    EN 50266

    EN 50267-1

    EN 50267-2

    EN 61034

    IEC 60332-1

    IEC 60332-3

    IEC 60754-1

    IEC 60754-2

    IEC 61034

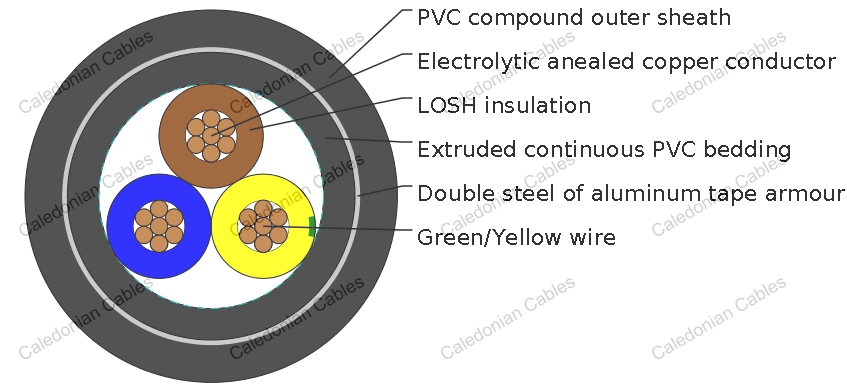

    Cable Construction

    Flexible electrolytic annealed copper conductor

    Class 5 in accordance with IEC 60228.

    Cross-linked polyethylene insulation, low smoke and halogen free, type DIX 3 according to HD 603

    Color coded to HD 308

    Polyolefin inner sheath according to UNE 21123-4

    Double steel or aluminum tape armour

    Polyolefin outer sheath according to UNE 21123-4

    Technical Characteristics

    Working voltage 600/1000 volts
    Test voltage 2000 volts
    Minimum bending radius 10 x Ø
    Working temperature -15°C to +90°C
    Short circuit temperature +250°C
    Flame retardant IEC 60332.1
    Insulation resistance 20 MΩ x km
    Halogen free IEC 60754-1, EN 50267-2-1
    No corrosive gases IEC 60754-2, EN 50267-2-2
    No toxic gases NES 02-713, NF X 70-100
    Low smoke density IEC 61034, EN 50268-2
    Flame retardant IEC 60332-1, EN 50265-2-1
    Non-flame propagating IEC 60332-3, EN 50266-2

    Cable Parameter

    AWG No. of Cores × Nominal Cross Sectional Area Nominal Overall Diameter Nominal Weight
    # × mm² mm kg/km
    RZ1FZ1-K(AS)
    16(30/30) 2×1.5 12.3 232
    14(50/30) 2×2.5 13.2 273
    12(56/28) 2×4 14.3 331
    10(84/28) 2×6 15.1 385
    8(80/26) 2×10 16.9 510
    6(128/26) 2×16 19.3 697
    4(200/26) 2×25 23.0 1004
    2 (280/26) 2×35 25.1 1272
    16(30/30) 3G1.5 13.0 260
    14(50/30) 3G2.5 13.9 309
    12(56/28) 3G4 15.0 378
    10(84/28) 3G6 16.1 406
    8(80/26) 3G10 18.3 636
    6(128/26) 3×16 20.2 846
    4(200/26) 3×25 23.8 1208
    2 (280/26) 3×35 26.6 1578
    1(400/26) 3×50 30.3 2105
    2/0 (356/24) 3×70 34.9 2858
    3/0 (485/24) 3×95 40.1 3992
    4/0 (614/24) 3×120 43.8 4921
    300 MCM (765/24) 3×150 48.8 6033
    350 MCM (944/24) 3×185 53.6 7454
    500MCM (1225/24) 3×240 60.5 9620
    16(30/30) 4G1.5 13.8 293
    14(50/30) 4G2.5 14.6 350
    12(56/28) 4G4 16.0 437
    10(84/28) 4G6 17.4 544
    8(80/26) 4G10 19.7 759
    6(128/26) 4×16 22.1 1031
    4(200/26) 4×25 25.8 1466
    2 (280/26) 4×35 28.5 1929
    1(400/26) 4G50 33.7 2636
    2/0(356/24) 4G70 39.7 3928
    3/0(485/24) 4G95 44.0 4939
    4/0(614/24) 4G120 48.6 6185
    300 MCM (765/24) 4×150 54.3 7657
    350 MCM (944/24) 4×185 60.1 9186
    500MCM (1225/24) 4×240 68.4 11748
    16(30/30) 5G1.5 14.7 330
    14(50/30) 5G2.5 15.6 398
    12(56/28) 5G4 17.2 506
    10(84/28) 5G6 18.7 635
    8(80/26) 5G10 21.2 894
    6(128/26) 5G16 24.0 1232
    4(200/26) 5G25 28.5 1785
    2 (280/26) 5G35 31.5 2348
    RZ1FAZ1-K(AS)
    8(80/26) 1×10 14.7 318
    6(128/26) 1×16 14.8 357
    4(200/26) 1×25 16.2 459
    2(280/26) 1×35 17.3 572
    1(400/26) 1×50 19.0 730
    2/0 (356/24) 1×70 20.9 951
    3/0 (485/24) 1×95 22.6 1177
    4/0 (614/24) 1×120 24.2 1439
    300 MCM (765/24) 1×150 26.3 1737
    350 MCM (944/24) 1×185 28.7 2069
    500MCM (1225/24) 1×240 31.7 2640
    - 1×300 34.4 3220
