CEE/F(EM-CEE)

Application and Description

For supervisory electrical equipment, station control circuits, outdoor, suitable installation in dry or wet cable trenches

Name Code

C : For control

E : Polythylene

F : Flame retardant

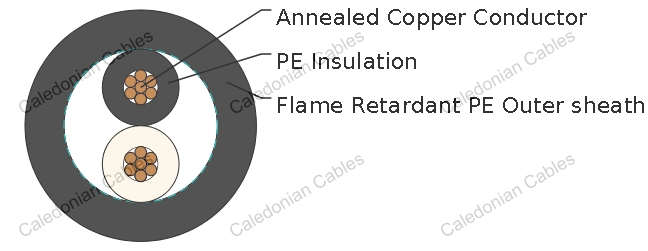

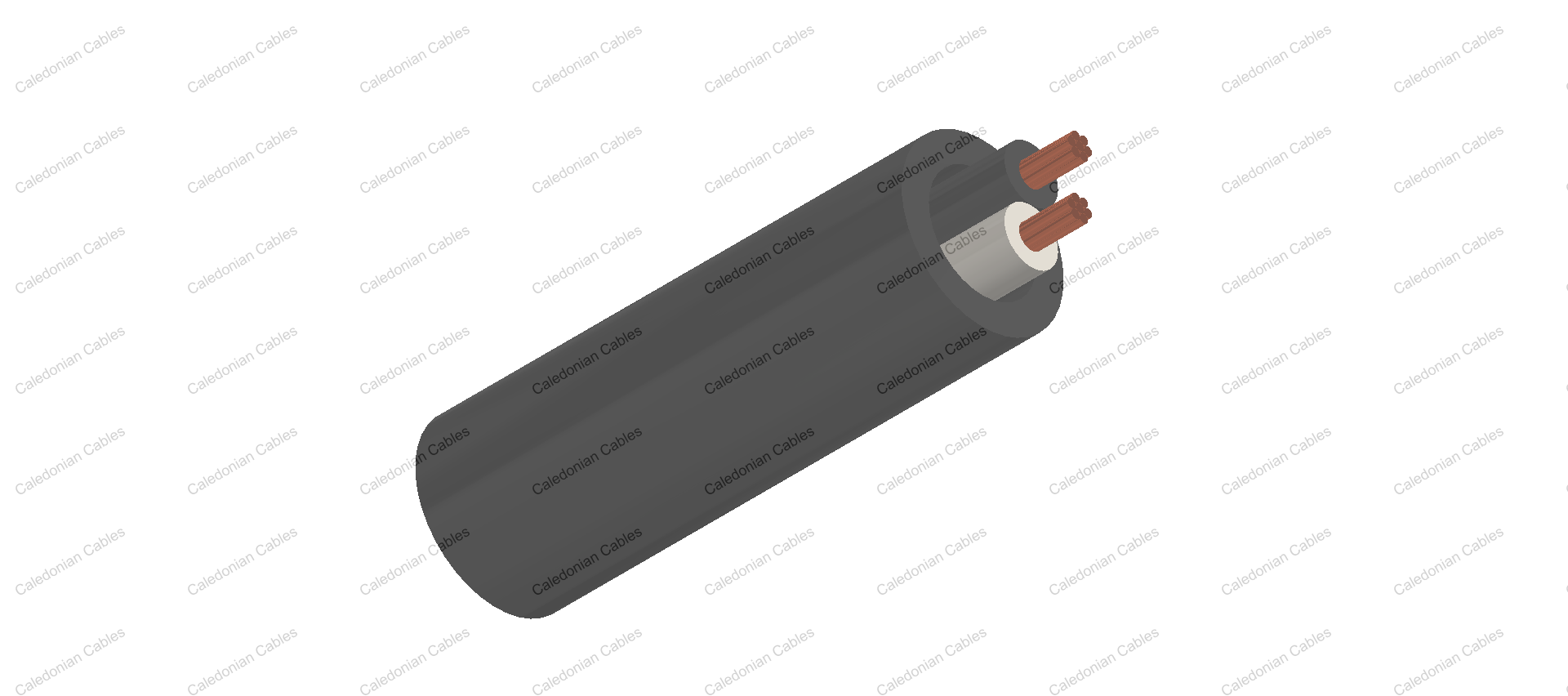

Cable Construction

Conductor	Circular or compacted circuar stranded annealed copper wires
Seperator	A proper separator may be applied to a conductor
Insulation	Polyethylene
Color	2 cores- Black and white
	3 cores- Black, white and red
	4 cores- Black, white, red and green
	More than 4 cores : Black core with marking numbers
Filler	Non-hygroscopic material(optional)
Binding tape	Polyester (Mylar) tape (optional)
Sheath	Flame retardant polyethylene, Black color

Technical Characteristics

Maximum conductor temperature : 90ºC

Circuit voltage not exceeding : 600 volts

Test voltage : 2000 volts

Cable Parameter

No. of cores	Nominal sectional area	No. of wire	Diameter of Conductor (approx.)	Thickness of insulation	Thickness of sheath	Overall diameter (approx.)	Maximum DC. resistance of Cdr. at 20ºC	Cable weight (approx.)
No. of cores	mm²	No. of wire	mm	mm	mm	mm	Ohm / km	kg/km
2	1.25	7/0.45	1.35	0.8	1.5	9.4	16.8	90
	2	7/0.6	1.8	0.8	1.5	10.5	9.42	115
	3.5	7/0.8	2.4	0.8	1.5	11.5	5.3	160
	5.5	7/1.0	3	1	1.5	13.5	3.4	225
	8	7/1.2	3.6	1	1.5	15	2.36	290
	8	compacted	3.4	1	1.5	14.5	2.34	280
	14	7/1.6	4.8	1	1.5	17.5	1.33	440
	14	compacted	4.4	1	1.5	16.5	1.34	425
	22	7/2.0	6	1.2	1.5	2]	0.84	650
	22	compacted	5.5		1.5	19.5	0.849	620
3	1.25	7/0.45	1.35	0.8	1.5	9.9	16.8	105
	2	7/0.6	1.8	0.8	1.5	11	9.42	140
	3.5	7/0.8	2.4	0.8	1.5	12.5	5.3	200
	5.5	7/1.0	3	1	1.5	t4.5	3.4	290
	8	7/1.2	3.6	1	1.5	16	2.36	380
	8	compacted	3.4	1	1.5	15.5	2.34	370
	14	7/1.6	4.8	1	1.5	18.5	1.33	585
	14	compacted	4.4	1	1.5	17.5	1.34	570
	22	7/2.0	6	1.2	1.5	22	0.84	875
	22	compacted	5.5	1.2	1.5	21	0.849	845
4	1.25	7/0.45	1.35	0.8	1.5	11	16.8	125
	2	7/0.6	1.8	0.8	1.5	12	9.42	175
	3.5	7/0.8	2.4	0.8	1.5	13.5	5.3	250
	5.5	7/1.0	3	1	1.5	16	3.4	360
	8	7/1.2	3.6	1	1.5	17	2.36	475
	8	compacted	3.4	1	1.5	16.5	2.34	465
	14	7/1.6	4.8	1	1.5	20	1.33	750
	14	compacted	4.4	1	1.5	19	1.34	730
	22	7/2.0	6	1.2	1.6	24	0.84	1140
	22	compacted	5.5	1.2	1.6	23	0.849	1110
5	1.25	7/0.45	1.35	0.8	1.5	11.5	16.8	150
	2	7/0.6	1.8	0.8	1.5	13	9.42	205
	3.5	7/0.8	2.4	0.8	1.5	14.5	5.3	300
	5.5	7/1.0	3	1	1.5	17	3.4	440
	8	7/ 1.2	3.6	1	1.5	19	2.36	580
	8	compacted	3.4	1	1.5	18.5	2.34	570
	14	7/1.6	4.8	1	1.6	23	1.33	930
	14	compacted	4.4	1	1.5	21	1.34	900
6	1.25	7/0.45	1.35	0.8	1.5	12.5	16.8	175
	2	7/0.6	1.8	0.8	1.5	14	9.42	240
	3.5	7/0.8	2.4	0.8	1.5	15.5	5.3	355
	5.5	7/1.0	3	1	1.5	18.5	3.4	520
	8	7/1.2	3.6	1	1.5	21	2.36	690
	8	compacted	3.4	1	1.5	20	2.34	675
	14	7/1.6	4.8	1	1.6	25	1.33	1110
	14	compacted	4.4	1	1.6	23	1.34	1080
7	1.25	7/0.45	1.35	0.8	1.5	12.5	16.8	185
	2	7/0.6	1.8	0.8	1.5	14	9.42	260
	3.5	7/0.8	2.4	0.8	1.5	15.5	5.3	385
	5.5	7/ 1.0	3	1	1.5	18.5	3.4	570
	8	7/1.2	3.6	1	1.5	21	2.36	765
	8	compacted	3.4	1	1.5	20	2.34	750
8	1.25	7/0.45	1.35	0.8	1.5	13.5	16.8	210
	2	7/0.6	1.8	0.8	1.5	15	9.42	295
	3.5	7/0.8	2.4	0.8	1.5	17	5.3	440
	5.5	7/1.0	3	1	1.5	20	3.4	655
	8	7/ 1.2	3.6	1	1.6	23	2.36	885
	8	compacted	3.4	1	1.5	22	2.34	855
10	1.25	7/0.45	1.35	0.8	1.5	15.5	16.8	265
	2	7/0.6	1.8	0.8	1.5	17.5	9.42	375
	3.5	7/0.8	2.4	0.8	1.5	19.5	5.3	560
	5.5	7/1.0	3	1	1.6	24	3.4	845
	8	7/ 1.2	3.6	1	1.7	27	2.36	1150
	8	compacted	3.4	1	1.7	26	2.34	1120
12	1.25	7/0.45	1.35	0.8	1.5	16	16.8	300
	2	7/0.6	1.8	0.8	1.5	18	9.42	425
	3.5	7/0.8	2.4	0.8	1.5	21	5.3	640
	5.5	7/1.0	3	1	1.7	25	3.4	980
	8	7/ 1.2	3.6	1	1.8	28	2.36	1330
	8	compacted	3.4	1	1.7	27	2.34	1290
15	1.25	7/ 0.45	1.35	0.8	1.5	17	16.8	355
	2	7/0.6	1.8	0.8	1.5	19..0	9.42	510
	3.5	7/0.8	2.4	0.8	1.5	22	5.3	775
	5.5	7/1.0	3	l.0	1.7	27	3.4	I190
20	1.25	7/0.45	1.35	0.8	1.5	19	16.8	445
	2	7/0.6	1.8	0.8	1.5	22	9.42	655
	3.5	7/0.8	2.4	0.8	1.6	25	5.3	1010
	5.5	7/ 1.0	3	1	1.9	3J	3.4	1560
30	1.25	7/0.45	1.35	0.8	1.6	23	16.8	650
	2	7/0.6	1.8	0.8	1.7	26	9.42	970
	3.5	7/0.8	2.4	0.8	1.8	30	5.3	1510
