These cables are suitable for power transport in industry, yards, residential building and handicraft. For installations on masonry and metal structures, on gangways, pipes, ducts and similar systems. For fixed installation indoors and out. Underground laying is acceptable, even if not protected. Shield guarantees an optimal protection from electromagnetic disturbs; suitable for civil and industrial places and for the transport of signals and commands.
CEI 20-13
CEI 20-22 II
CEI 20-35 (EN60332-1)
CEI 20-37 pt.2 (EN50267)

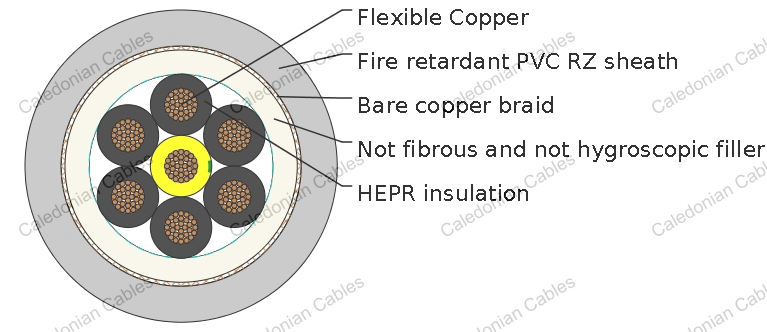

Flexible bare copper conductor to CEI 20-29 cl.5
Rubber HEPR, G7 quality,acc. to CEI 20-11
Not fibrous and not hygroscopic filler
Bare copper tape screen(for FG7OH1R)
Bare copper wire braid(for FG7OH2R)
Grey PVC RZ quality outer jacket
| Working voltage | 600/1000 V |
| Test voltage | 4000 V |
| Minimum bending radius | 8 x Ø |
| Flexing temperature | 0°C to +90°C |
| Static temperature | -25°C to +90°C |
| Maximum short circuit temperature | +250°C |
| Flame retardant | CEI 20-22 II |
| Insulation resistance | 10 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| # × mm² | mm | mm | mm | kg/km | |
| power | |||||
| 16(30/30) | 2 x 1.5 | 0.7 | 1.8 | 12.6 | 241 |
| 14(50/30) | 2 x 2.5 | 0.7 | 1.8 | 13.5 | 280 |
| 12(56/28) | 2 x 4 | 0.7 | 1.8 | 14.5 | 336 |
| 10(84/28) | 2 x 6 | 0.7 | 1.8 | 15.5 | 395 |
| 8(80/26) | 2 x 10 | 0.7 | 1.8 | 18.4 | 567 |
| 6(128/26) | 2 x 16 | 0.7 | 1.8 | 20.5 | 738 |
| 4(200/26) | 2 x 25 | 0.9 | 1.8 | 25.3 | 1107 |
| 2(280/26) | 2 x 35 | 0.9 | 1.8 | 27.7 | 1403 |
| 1(400/26) | 2 x 50 | 1 | 1.8 | 30.6 | 1830 |
| 2/0(356/24) | 2 x 70 | 1.1 | 1.8 | 36.4 | 2571 |
| 3/0(485/24) | 2 x 95 | 1.1 | 1.8 | 39.0 | 3143 |
| 4/0(614/24) | 2 x 120 | 1.2 | 1.8 | 46.3 | 4316 |
| 250MCM | 2 x 150 | 1.4 | 1.8 | 52.8 | 5547 |
| 16(30/30) | 3 x 1.5 | 0.7 | 1.8 | 13.0 | 262 |
| 14(50/30) | 3 x 2.5 | 0.7 | 1.8 | 14.1 | 316 |
| 12(56/28) | 3 x 4 | 0.7 | 1.8 | 15.0 | 380 |
| 10(84/28) | 3 x 6 | 0.7 | 1.8 | 16.1 | 456 |
| 8(80/26) | 3 x 10 | 0.7 | 1.8 | 19.3 | 675 |
| 6(128/26) | 3 x 16 | 0.7 | 1.8 | 22.3 | 939 |
| 4(200/26) | 3 x 25 | 0.9 | 1.8 | 26.6 | 1346 |
| 2(280/26) | 3 x 35 | 0.9 | 1.8 | 29.2 | 1744 |
| 1(400/26) | 3 x 50 | 1 | 1.8 | 32.3 | 2262 |
| 2/0(356/24) | 3 x 70 | 1.1 | 1.9 | 38.5 | 3188 |
| 3/0(485/24) | 3 x 95 | 1.1 | 2 | 44.2 | 4309 |
| 4/0(614/24) | 3 x 120 | 1.2 | 2.1 | 51.6 | 5635 |
| 300MCM | 3 x 150 | 1.4 | 2.3 | 56.6 | 6921 |
| 350MCM | 3 x 185 | 1.6 | 2.4 | 60.2 | 8079 |
| 450MCM | 3 x 240 | 1.7 | 2.6 | 69.7 | 10639 |
| - | 3 x 35 + 25 | 0.9 | 1.8 | 31.1 | 2038 |
| - | 3 x 50 + 25 | 1 | 1.8 | 34.7 | 2606 |
| - | 3 x 70+ 35 | 1.1 | 1.9 | 39.8 | 3540 |
| - | 3 x 95 + 50 | 1.1 | 2.1 | 45.9 | 4818 |
| - | 3 x 120 + 70 | 1.2 | 2.2 | 53.9 | 6358 |
| - | 3 x 150 + 95 | 1.4 | 2.4 | 59.0 | 7852 |
| - | 3 x 185 + 95 | 1.6 | 2.6 | 62.8 | 9066 |
| - | 3 x 240 + 150 | 1.7 | 2.8 | 73.0 | 12078 |
| 16(30/30) | 4 x 1.5 | 0.7 | 1.8 | 13.8 | 298 |
| 14(50/30) | 4 x 2.5 | 0.7 | 1.8 | 14.9 | 357 |
| 12(56/28) | 4 x 4 | 0.7 | 1.8 | 16.1 | 438 |
| 10(84/28) | 4 x 6 | 0.7 | 1.8 | 17.3 | 535 |
| 8(80/26) | 4 x 10 | 0.7 | 1.8 | 20.8 | 802 |
| 6(128/26) | 4 x 16 | 0.7 | 1.8 | 24.6 | 1164 |
| 4(200/26) | 4 x 25 | 0.9 | 1.8 | 28.8 | 1664 |
| 16(30/30) | 5 x 1.5 | 0.7 | 1.8 | 14.9 | 351 |
| 14(50/30) | 5 x 2.5 | 0.7 | 1.8 | 16.2 | 424 |
| 12(56/28) | 5 x 4 | 0.7 | 1.8 | 17.5 | 527 |
| 10(84/28) | 5 x 6 | 0.7 | 1.8 | 18.9 | 635 |
| 8(80/26) | 5 x 10 | 0.7 | 1.8 | 23.7 | 1027 |
| 6(128/26) | 5 x 16 | 0.7 | 1.8 | 26.9 | 1415 |
| 4(200/26) | 5 x 25 | 0.9 | 1.8 | 31.6 | 2022 |
| control | |||||
| 16(30/30) | 7 x 1.5 | 0.7 | 1.8 | 15.7 | 399 |
| 16(30/30) | 10 x 1.5 | 0.7 | 1.8 | 17.8 | 503 |
| 16(30/30) | 12 x 1.5 | 0.7 | 1.8 | 19.2 | 574 |
| 16(30/30) | 16 x 1.5 | 0.7 | 1.8 | 21.0 | 690 |
| 16(30/30) | 19 x 1.5 | 0.7 | 1.8 | 22.6 | 813 |
| 16(30/30) | 24 x 1.5 | 0.7 | 1.8 | 24.6 | 927 |
| 14(50/30) | 7 x2.5 | 0.7 | 1.8 | 17.1 | 496 |
| 14(50/30) | 10 x 2.5 | 0.7 | 1.8 | 19.5 | 644 |
| 14(50/30) | 12 x 2.5 | 0.7 | 1.8 | 21.2 | 732 |
| 14(50/30) | 16 x 2.5 | 0.7 | 1.8 | 24.0 | 950 |
| 14(50/30) | 19 x 2.5 | 0.7 | 1.8 | 25.0 | 1056 |
| 14(50/30) | 24 x 2.5 | 0.7 | 1.8 | 38.3 | 1281 |
* Galvinized steel armouring version (FG7OH1RAR/FG7OH2RAR) is available.
