NAYCY is used in power plants, industrial and switching installations, for street lighting, domestic power supply connections, in secondary distribution networks and other. These cables are preferentially used for underground application as well as for interior installation in room and cable ducts and for outdoor and applications, for indoor installations, in the open air, underground and in water where greater mechanical protection against accidental contact is required if damaged.

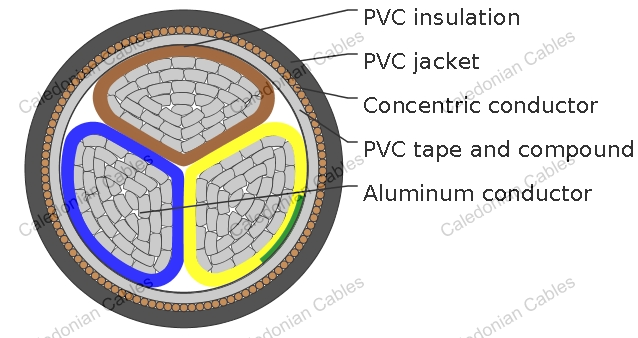

| Aluminium Conductor |
| VDE 0295 cl. 1 or cl. 2 (round and sector shaped), BS 6360/IEC 60228 cl. 1 or cl. 2 |
| PVC insulation type DIV4 acc. VDE0276 |
| Color coded to DIN VDE 0293 |
| Tapes and PVC compound inner sheath |
| Concentric conductor: Copper wires and copper tapes |
| PVC outer sheath type DMV5 acc. VDE 0276 |
| Working voltage | 600/1000 volts |
| Test voltage | 4000 volts |
| Minimum bending radius | 12 x Ø |
| Flexing Temperature | -5º C to +50º C |
| Fixed installation temperature | - 30º C to +70º C |
| Short circuit temperature | +160º C |
| Flame-retardant | to DIN VDE 0472 part 804 class B/IEC 60332-1 |
| Insulation resistance | >20 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Stranded Conductor Type | Stranded Conductor Type | Nominal Overall Diameter | Aluminium Weight | Copper weight | Nominal Cable Weight |
|---|---|---|---|---|---|---|---|
| # x mm² | mm | kg/km | kg/km | kg/km | |||
| 2 | 3 x 35.0 | re | 35 | 27.9 | 291 | 230 | 1143 |
| 1 | 3 x 50.0 | re | 50 | 31.5 | 392 | 335 | 1522 |
| 2/0 | 3 x 70.0 | se | 70 | 33.1 | 567 | 456 | 1675 |
| 3/0 | 3 x 95.0 | se | 95 | 36.9 | 785 | 665 | 2247 |
| 4/0 | 3 x 120.0 | se | 120 | 40.0 | 993 | 849 | 2715 |
| 2/0 | 3 x 70.0 | sm | 35 | 33.1 | 584 | 236 | 1489 |
| 2/0 | 3 x 70.0 | sm | 70 | 34.1 | 584 | 413 | 1648 |
| 3/0 | 3 x 95.0 | sm | 50 | 37.7 | 809 | 296 | 1974 |
| 3/0 | 3 x 95.0 | sm | 95 | 38.7 | 809 | 580 | 2253 |
| 4/0 | 3 x 120.0 | sm | 70 | 40.2 | 1023 | 432 | 2381 |
| 4/0 | 3 x 120.0 | sm | 120 | 40.9 | 1023 | 694 | 2654 |
| 300mcm | 3 x 150.0 | sm | 70 | 44.2 | 1257 | 432 | 2798 |
| 300mcm | 3 x 150.0 | sm | 150 | 45.4 | 1257 | 804 | 3164 |
| 350mcm | 3 x 185.0 | sm | 95 | 48.6 | 1579 | 580 | 3498 |
