LiYY

Application and Description

LiYY cables are data transmission cables which have been developed from well proven types based on the specification VDE 0812. For use in flexible or stationary applications under low mechanical stress with free movement without any tensile stress, loads or forced movements in dry, moist and wet conditions. Commonly used as control and signal cables in the electronics of computers systems, electronic control equipment, office machines and measurement devices in the tool making and machine industries. LiYY is recommended when a small outer diameter is required. Not permitted for outdoor use.

Standard and Approval

VDE 0245, VDE 0812, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

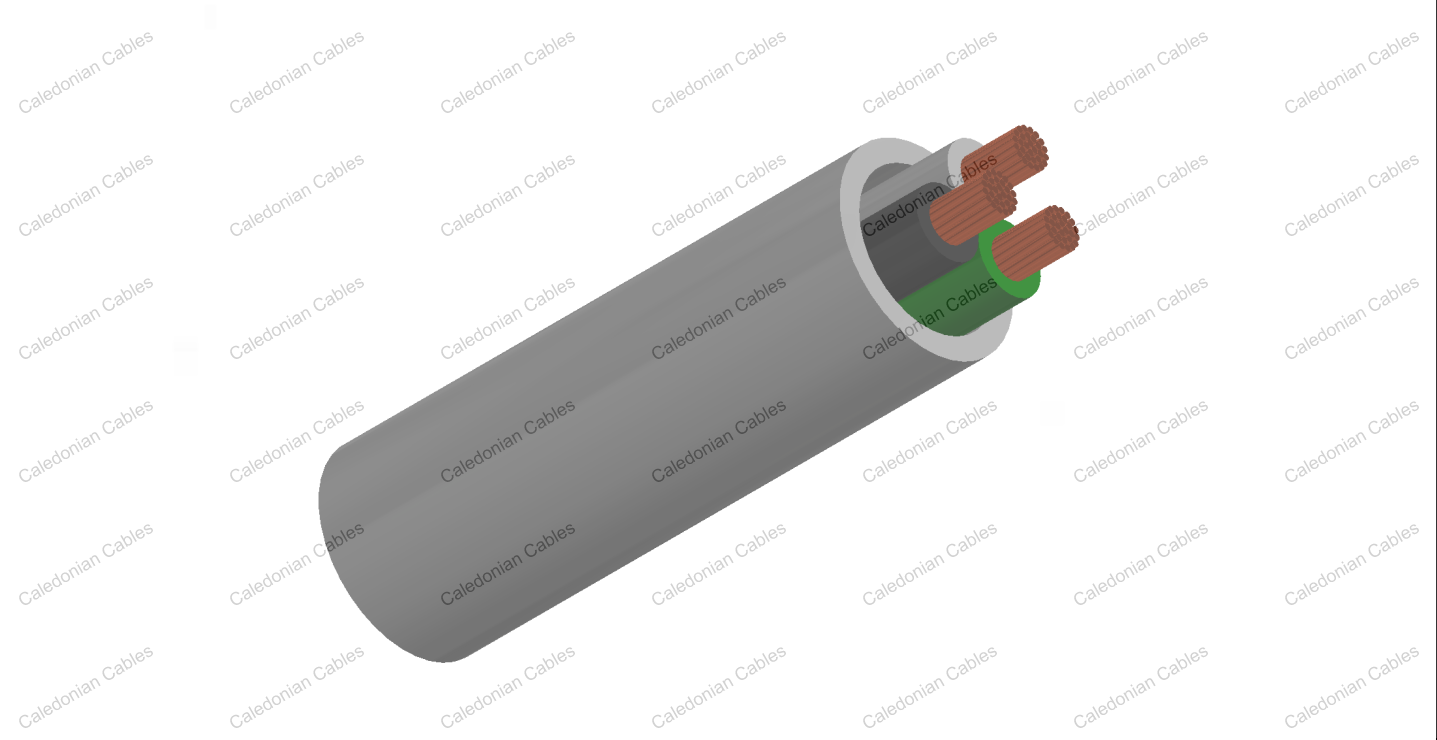

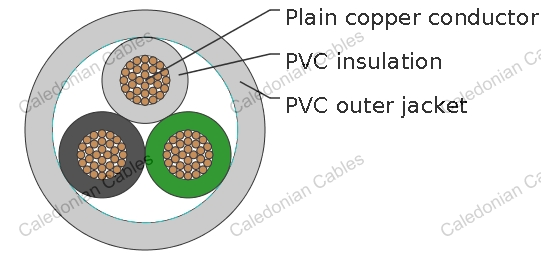

Cable Construction

Plain copper conductor

Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 IEC 60228 cl.5

PVC core insulation type T12 to DIN VDE 0281 part 1

Color coded to DIN 47100, but without color repetition

PVC outer jacket type TM2 to DIN VDE 0281 part 1

Technical Characteristics

Working voltage	300/500 volts
Test voltage	1200/2000 volts
Minimum bending radius	4 x Ø
Flexing Temperature	-5º C to +70º C
Static temperature	-30º C to +80º C
Short circuit temperature	+160º C
Flame retardant	IEC 60332.1
Insulation resistance	20 MΩ x km

Cable Parameter

AWG	No. of Cores x Nominal Cross Sectional Area	Nominal Overall Diameter	Nominal Copper Weight	Cable Weight kg/km
	# x mm²	mm	kg/km	kg/km
26(18/38)	2X0.14	3.2	2.7	13.0
26(18/38)	3X0.14	3.2	4.0	16.0
26(18/38)	4X0.14	3.5	5.4	19.0
26(18/38)	5X0.14	4.0	6.7	22.0
26(18/38)	6X0.14	4.3	8.1	25.0
26(18/38)	7X0.14	4.3	9.4	28.0
26(18/38)	8X0.14	4.6	10.7	35.0
26(18/38)	10X0.14	5.3	13.4	41.0
26(18/38)	12X0.14	5.6	16.1	48.0
26(18/38)	14X0.14	5.9	18.8	53.0
26(18/38)	16X0.14	6.2	21.5	59.0
26(18/38)	18X0.14	6.5	24.2	65.0
26(18/38)	20X0.14	6.5	26.9	70.0
26(18/38)	21X0.14	6.8	28.2	77.0
26(18/38)	24X0.14	7.6	32.3	87.0
26(18/38)	25X0,14	7.6	33.6	91.0
26(18/38)	27X0.14	7.7	36.3	97.0
26(18/38)	30X0.14	8.0	40.3	108.0
26(18/38)	32X0.14	8.2	43.0	114.0
26(18/38)	36X0.14	8.7	48.4	126.0
26(18/38)	40X0.14	9.5	54.0	139.0
26(18/38)	42X0.14	9.8	56.0	146.0
26(18/38)	44X0.14	10.3	59.0	153.0
26(18/38)	48X0.14	10.4	65.0	164.0
26(18/38)	52X0.14	10.7	70.0	173.0
26(18/38)	56X0.14	11.0	75.0	187.0
26(18/38)	61X0.14	11.3	82.0	204.0
26(18/38)	80X0.14	15.5	108.0	280.0
26(18/38)	100X0.14	18.1	135.0	370.0
24(14/34)	2X0.25	3.8	4.8	18.0
24(14/34)	3X0.25	3.9	7.2	22.0
24(14/34)	4X0.25	4.3	9.6	26.0
24(14/34)	5X0.25	4.8	12.0	30.0
24(14/34)	6X0.25	5.2	14.4	36.0
24(14/34)	7X0.25	5.2	16.8	42.0
24(14/34)	8X0.25	5.7	19.2	49.0
24(14/34)	10X0.25	6.4	24.0	57.0
24(14/34)	12X0.25	6.7	28.8	66.0
24(14/34)	14X0.25	7.1	33.6	75.0
24(14/34)	16X0.25	7.5	38.4	84.0
24(14/34)	18X0.25	7.9	43.2	72.0
24(14/34)	19X0.25	8.4	46.0	84.0
24(14/34)	20X0.25	9.1	48.0	101.0
24(14/34)	21X0.25	9.3	50.0	107.0
24(14/34)	24X0.25	9.8	60.0	120.0
24(14/34)	25X0.25	9.9	61.0	132.0
24(14/34)	27X0.25	10.1	65.0	140.0
24(14/34)	30X0.25	10.3	72.0	156.0
24(14/34)	32X0.25	10.5	77.0	164.0
24(14/34)	36X0.25	11.1	86.0	182.0
24(14/34)	37X0.25	11.3	89.0	190.0
24(14/34)	40X0.25	11.5	96.0	200.0
24(14/34)	42X0.25	11.8	101.0	211.0
24(14/34)	44X0.25	12.6	106.0	225.0
24(14/34)	48X0.25	12.7	115.0	245.0
24(14/34)	52X0.25	13.6	125.0	263.0
24(14/34)	56X0.25	14.0	134.0	280.0
24(14/34)	61X0.25	14.4	146.0	305.0
24(14/34)	80X0.25	19.6	192.0	450.0
24(14/34)	100X0.25	23.1	240.0	590.0
22(7/30)	2X0.34	4.2	6.5	22.0
22(7/30)	3X0.34	4.4	9.8	30.0
22(7/30)	4X0.34	4.9	13.1	43.0
22(7/30)	5X0.34	5.3	16.3	54.0
22(7/30)	6X0.34	5.8	19.6	58.0
22(7/30)	7X0.34	5.9	22.8	61.0
22(7/30)	8X0.34	6.3	26.1	73.0
22(7/30)	10X0.34	7.2	32.6	82.0
22(7/30)	12X0.34	7.6	39.2	102.0
22(7/30)	14XO.34	8.0	45.7	108.0
22(7/30)	16X0.34	8.4	52.0	126.0
22(7/30)	18X0.34	8.9	59.0	143.0
22(7/30)	20X0.34	9.8	65.0	160.0
22(7/30)	21X0.34	9.8	69.0	166.0
22(7/30)	24X0.34	11.0	78.0	186.0
22(7/30)	25X0.34	11.2	82.0	192.0
22(7/30)	27X0.34	11.2	88.0	206.0
22(7/30)	30X0.34	11.6	98.0	226.0
22(7/30)	32X0.34	11.9	104.0	245.0
22(7/30)	36X0.34	12.6	118.0	285.0
22(7/30)	37X0.34	12.9	121.0	292.0
22(7/30)	40X0.34	13.5	131.0	318.0
22(7/30)	42X0.34	14.0	137.0	330.0
22(7/30)	44X0.34	14.7	144.0	370.0
22(7/30)	48X0.34	14.9	157.0	405.0
22(7/30)	52X0.34	15.3	170.0	430.0
22(7/30)	53X0.34	15.5	183.0	440.0
22(7/30)	61X0.34	16.2	199.0	610.0
22(7/30)	80X0.34	22.0	264.0	880.0
22(7/30)	100X0.34	25.4	327.0	1050.0
20(16/32)	2X0.5	4.8	9.6	40.0
20(16/32)	3X0.5	5.1	14.4	46.0
20(16/32)	4X0.5	5.7	19.2	55.0
20(16/32)	5X0.5	6.2	24.0	64.0
20(16/32)	6X0.5	6.7	28.8	73.0
20(16/32)	7X0.5	7.4	33.6	81.0
20(16/32)	8X0.5	8.0	38.4	97.0
20(16/32)	10X0.5	8.8	48.0	116.0
20(16/32)	12X0.5	9.1	58.0	135.0
20(16/32)	16X0.5	10.0	77.0	168.0
20(16/32)	20X0.5	11.2	96.0	213.0
20(16/32)	24X0.5	12.3	116.0	241.0
20(16/32)	30X0.5	13.5	144.0	303.0
20(16/32)	40X0.5	15.8	192.0	391.0
18(24/32)	2X0.75	5.2	14.4	47.0
18(24/32)	3X0.75	5.5	21.6	54.0
18(24/32)	4X0.75	6.2	29.0	66.0
18(24/32)	5X0.75	6.8	36.0	80.0
18(24/32)	7X0.75	8.1	50.0	110.0
18(24/32)	8X0.75	8.9	58.0	125.0
18(24/32)	10X0.75	9.6	72.0	148.0
18(24/32)	12X0.75	9.9	86.0	176.0
18(24/32)	16X0.75	11.6	115.0	220.0
18(24/32)	20X0.75	12.6	144.0	276.0
17(32/32)	2X1.0	5.5	19.2	56.0
17(32/32)	3X1.0	6.0	29.0	71.0
16(30/30)	2X1.5	6.5	29.0	75.0
16(30/30)	3X1.5	6.9	43.0	90.0
