These cables are suited for medium mechanical stress in damp and wet environments such as refrigerators, washing machines, spin dryers and other appliances, as long as it meets applicable equipment specifications.
These cables are also suited for cooking and heating apparatus, provided that the cable does not come into direct contact with the hot parts of the apparatus or with any other heat source. Further applications of this cable include: Fixed installation in furniture, partition walls, decorative covering, and in the hollow spaces of prefabricated building parts.
They are not suitable for outdoor use, industrial (except clothing manufacture) or farming applications. Max operating voltage in single or three phase system is Uo/U 318/550 volts. In a direct system, max operating voltage is Uo/U 413/825 volts.
Technical Characteristics

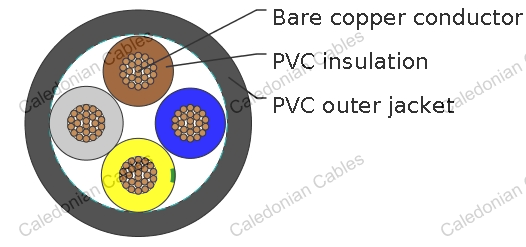

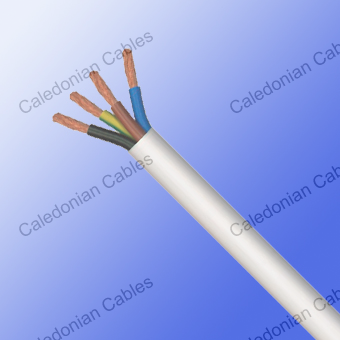

| Bare copper fine wire conductor |
| Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383 |
| PVC core insulation TI2 to VDE-0281 Part 1 |
| Color coded to VDE-0293-308 |
| Green-yellow grounding (3 conductors and above) |
| PVC outer jacket TM2 |
| Working voltage | 300/500 volts |
| Test voltage | 2000 volts |
| Flexing bending radius | 7.5 x O |
| Static bending radius | 4 x O |
| Flexing temperature | -5oC to +70oC |
| Static temperature | -40oC to +70oC |
| Short circuit temperature | +160oC |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 20 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | mm | kg/km | kg/km | |
| H05VV-F | ||||||
| 18(24/32) | 2 x 0.75 | 0.6 | 0.8 | 6.4 | 14.4 | 57 |
| 18(24/32) | 3 x 0.75 | 0.6 | 0.8 | 6.8 | 21.6 | 68 |
| 18(24/32) | 4 x 0.75 | 0.6 | 0.8 | 7.4 | 29 | 84 |
| 18(24/32) | 5 x 0.75 | 0.6 | 0.9 | 8.5 | 36 | 106 |
| 17(32/32) | 2 x 1.00 | 0.6 | 0.8 | 6.8 | 19 | 65 |
| 17(32/32) | 3 x 1.00 | 0.6 | 0.8 | 7.2 | 29 | 79 |
| 17(32/32) | 4 x 1.00 | 0.6 | 0.9 | 8.0 | 38 | 101 |
| 17(32/32) | 5 x 1.00 | 0.6 | 0.9 | 8.8 | 48 | 123 |
| 16(30/30) | 2 x 1.50 | 0.7 | 0.8 | 7.6 | 29 | 87 |
| 16(30/30) | 3 x 1.50 | 0.7 | 0.9 | 8.2 | 43 | 111 |
| 16(30/30) | 4 x 1.50 | 0.7 | 1.0 | 9.2 | 58 | 142 |
| 16(30/30) | 5 x 1.50 | 0.7 | 1.1 | 10.5 | 72 | 176 |
| 14(50/30) | 2 x 2.50 | 0.8 | 1.0 | 9.2 | 48 | 134 |
| 14(50/30) | 3 x 2.50 | 0.8 | 1.1 | 10.1 | 72 | 169 |
| 14(50/30) | 4 x 2.50 | 0.8 | 1.1 | 11.2 | 96 | 211 |
| 14(50/30) | 5 x 2.50 | 0.8 | 1.2 | 12.4 | 120 | 262 |
| 12(56/28) | 3 x 4.00 | 0.8 | 1.2 | 11.3 | 115 | 233 |
| 12(56/28) | 4 x 4.00 | 0.8 | 1.2 | 12.5 | 154 | 292 |
| 12(56/28) | 5 x 4.00 | 0.8 | 1.4 | 13.7 | 192 | 369 |
| 10(84/28) | 3 x 6.00 | 0.8 | 1.1 | 13.1 | 181 | 328 |
| 10(84/28) | 4 x 6.00 | 0.8 | 1.3 | 13.9 | 230 | 490 |

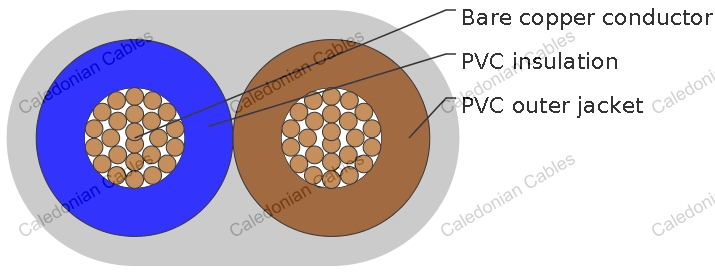

| H05VVH2-F | ||||||
| 18(24/32) | 2 x 0.75 | 0.6 | 0.8 | 4.2 x 6.8 | 14.4 | 48 |
| 17(32/32) | 2 x 1.00 | 0.6 | 0.8 | 4.4 x 7.2 | 19.2 | 57 |
