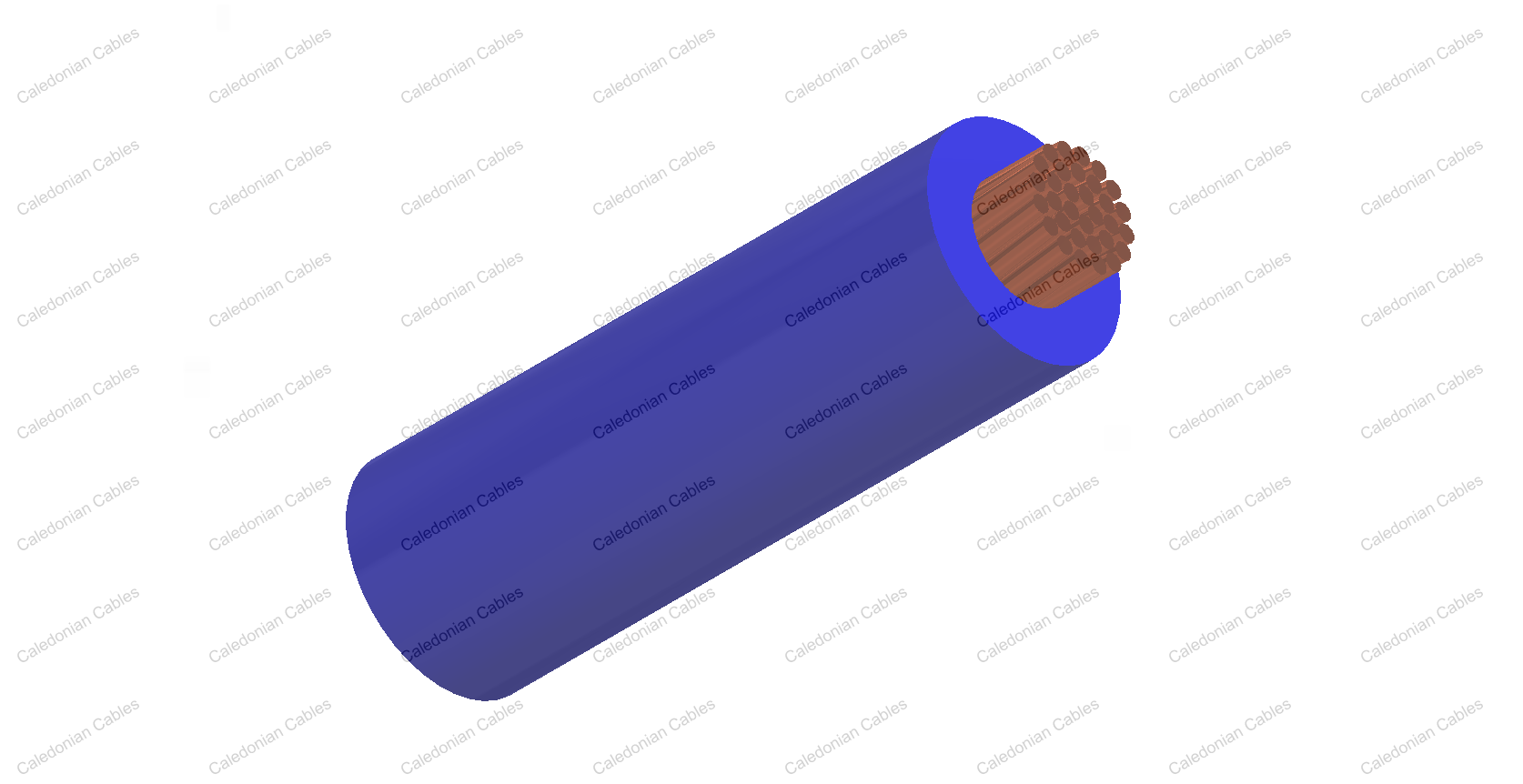

These insulated wires are determined for installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributors boards, in tubes, under and surface mounting of plasters.
Technical Characteristics

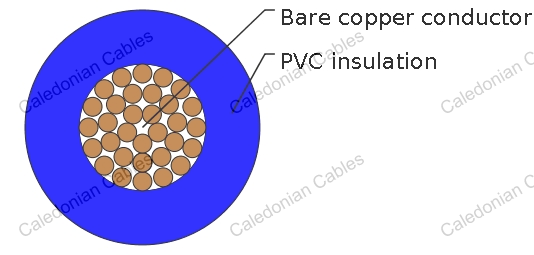

| Fine bare copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
| Special PVC TI1 core insulation |
| Cores to VDE-0293 colors on chart |
| Working voltage | 300/500v |
| Test voltage | 2000 volts |
| Flexing bending radius | 12.5 x O |
| Static bending radius | 12.5 x O |
| Flexing temperature | -5oC to +70oC |
| Static temperature | -30oC to +80oC |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 10 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | kg/km | kg/km | |
| 20(16/32) | 1 x 0.5 | 0.6 | 2.1 | 4.9 | 10 |
| 18(24/32) | 1 x 0.75 | 0.6 | 2.4 | 7.2 | 13 |
| 17(32/32) | 1 x 1 | 0.6 | 2.6 | 9.6 | 15 |
