H03RT-H

Application and Description

These cables are suitable for power connecting wire and complete lines between indoor household appliances, generally used for electric iron or electric saucepan.

Not suitable for outdoor use nor power supply to electrical tools.Ozone, oxygen, UV rays and heat resistant.

Standard and Approval

CEI 20-19/14, HD22.14, ROHS compliant

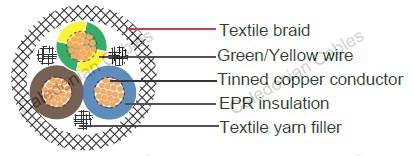

Cable Construction

Technical Characteristics

Flexible bare or tinned copper strand conductor acc. to DIN VDE 0295 class 5. IEC 60228 class 5

EPR insulation type EI4 of HD22.1

Color coded to VDE 0293-308/HD 308 / UNE 21089-1(3 conductors and above with yellow/green wire)

Textile yarn filler

Textile braid of HD22.1

Working voltage	300/300 V
Test voltage	2000V
Minimum bending radius	10× cable diameter
Temperature range	- 25℃ to + 60℃
Short circuit temperature	200℃

Cable Parameter

AWG	No. of Cores x Nominal Cross Sectional Area	Nominal Thickness of Insulation	Nominal Overall Diameter	Nominal Weight
	# x mm^2	mm	mm	kg/Km
18(24/32)	2×0.75	0.80	6.30±0.20	36
17(32/32)	2×1.0	0.80	6.80±0.20	52
16(30/30)	2×1.5	0.80	7.20±0.20	42
18(24/32)	3×0.75	0.80	6.80±0.20	60
17(32/32)	3×1.0	0.80	7.20±0.20	54
16(30/30)	3×1.5	0.80	7.80±0.20	74
