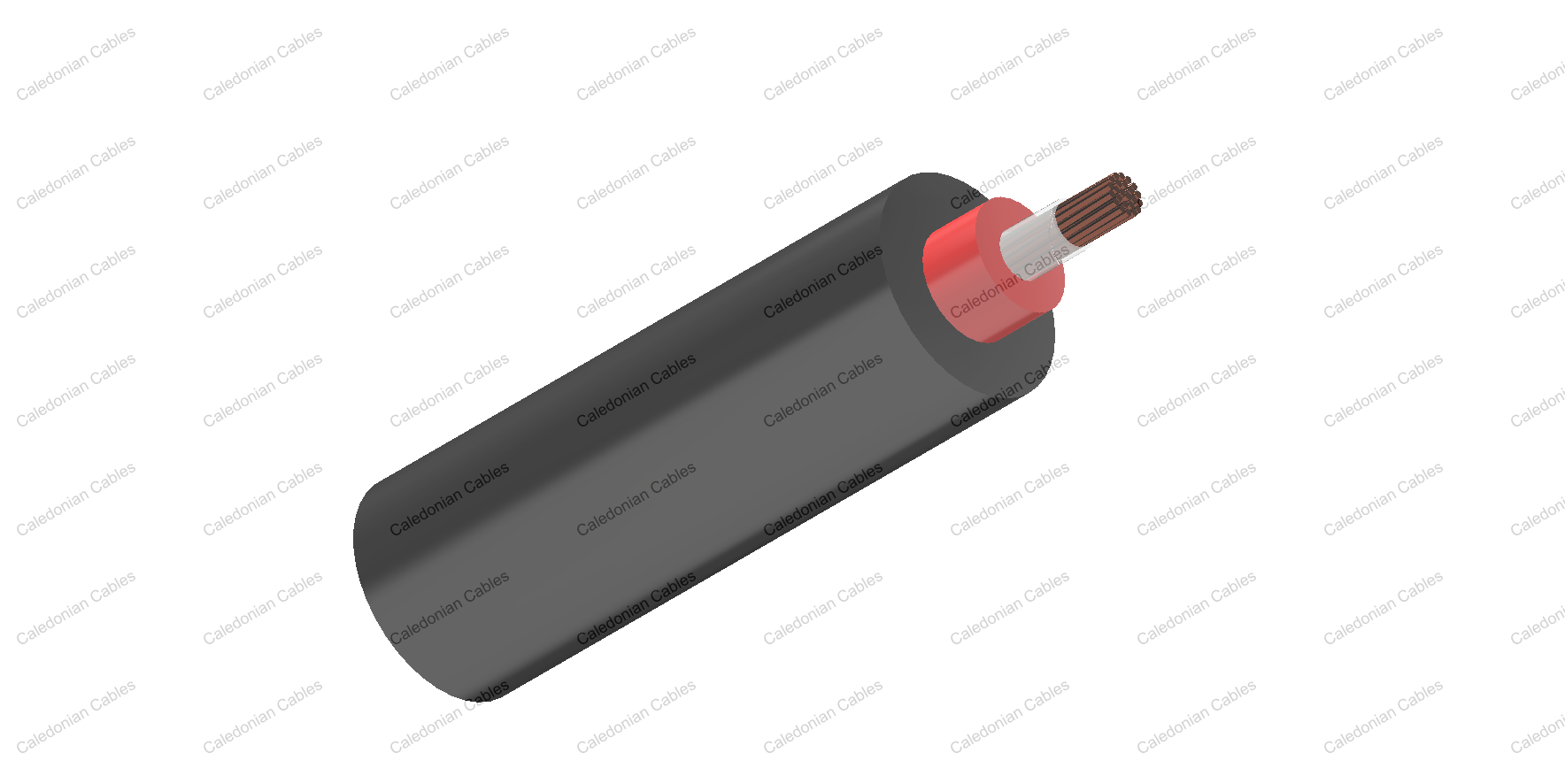

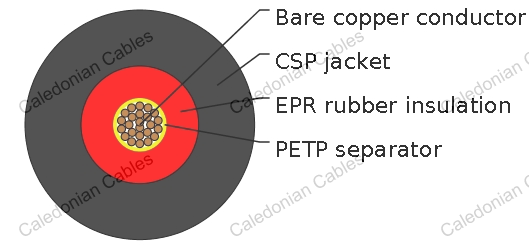

These cables are designed as power leads for permanent connection to coil winding motors, panel wiring and electrical machinery. They are able to withstand high temperature and immersion in varnish. Other applications include vehicle wiring, The HOFR sheath resists oil and varnish and the stranding is designed as a compromise between flexibility and positional stability. Also they are suitable for use as an alternative to tri-rated and bi-rated cable in certain applications.
| AWG (No of Strands/ Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area #xmm^2 |
Nominal Thickness of Insulation mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| TYPE 4A | ||||
| 18(24/32) | 1x0.75 | 0.8 | 3.5 | 16 |
| 17(32/32) | 1x1 | 0.8 | 3.7 | 19 |
| 16(30/30) | 1x1.5 | 0.8 | 4 | 25 |
| 14(50/30) | 1x2.5 | 0.9 | 4.6 | 37 |
| 12(56/28) | 1x4 | 1 | 5.4 | 57 |
| 10(84/28) | 1x6 | 1 | 6.5 | 80 |
| 8(80/26) | 1x10 | 1.2 | 7.9 | 130 |
| TYPE 4C | ||||
| 20(16/32) | 1x0.5 | 1.4 | 4.5 | 17 |
| 18(24/32) | 1x0.75 | 1.4 | 4.7 | 21 |
| 17(32/32) | 1x1 | 1.4 | 4.9 | 24 |
| 16(30/30) | 1x1.5 | 1.4 | 5.2 | 30 |
| 14(50/30) | 1x2.5 | 1.4 | 5.6 | 41 |
| 12(56/28) | 1x4 | 1.4 | 6.3 | 66 |
| 10(84/28) | 1x6 | 1.5 | 7.5 | 93 |
| 8(80/26) | 1x10 | 1.5 | 8.5 | 136 |
| 6(128/26) | 1x16 | 1.5 | 9.6 | 206 |
| 4(200/26) | 1x25 | 1.6 | 11.4 | 300 |
| 2(280/26) | 1x35 | 1.6 | 12.8 | 406 |
| 1(400/26) | 1x50 | 1.7 | 14.8 | 573 |
| 2/0(356/24) | 1x70 | 1.8 | 17.2 | 793 |
| 3/0(485/24) | 1x95 | 2 | 19.7 | 1028 |
| 4/0(614/24) | 1x120 | 2.2 | 21.9 | 1285 |
| 300 MCM (765/24) | 1x150 | 2.3 | 24.1 | 1562 |
| 350 MCM (944/24) | 1x185 | 2.4 | 26.3 | 1914 |
| 500MCM(1225/24) | 1x240 | 2.4 | 28.3 | 2431 |
| (1525/24) | 1x300 | 2.6 | 33 | 3024 |
| (2013/24) | 1x400 | 2.8 | 37.4 | 3948 |
| TYPE 4D | ||||
| 6(128/26) | 1x16 | 2.8 | 12.4 | 255 |
| 4(200/26) | 1x25 | 2.8 | 13.8 | 351 |
| 2(280/26) | 1x35 | 2.8 | 15.2 | 458 |
| 1(400/26) | 1x50 | 2.8 | 17.1 | 616 |
| 2/0(356/24) | 1x70 | 2.8 | 19.2 | 820 |
| 3/0(485/24) | 1x95 | 3 | 22 | 1097 |
| 4/0(614/24) | 1x120 | 3 | 23.5 | 1340 |
| 300 MCM (765/24) | 1x150 | 3 | 25.5 | 1635 |
| 350 MCM (944/24) | 1x185 | 3 | 27.5 | 1973 |
| 500MCM(1225/24) | 1x240 | 3 | 30.6 | 2504 |
| (1525/24) | 1x300 | 3 | 33.8 | 3098 |
| (2013/24) | 1x400 | 3 | 37.8 | 4045 |
| TYPE 4E | ||||
| 6(128/26) | 1x16 | 5 | 17.2 | 384 |
| 4(200/26) | 1x25 | 5 | 18.6 | 495 |
| 2(280/26) | 1x35 | 5 | 20 | 613 |
| 1(400/26) | 1x50 | 5 | 22.1 | 796 |
| 2/0(356/24) | 1x70 | 5 | 24.2 | 1020 |
| 3/0(485/24) | 1x95 | 5 | 26.3 | 1287 |
| 4/0(614/24) | 1x120 | 5 | 27.8 | 1542 |
| 300 MCM (765/24) | 1x150 | 5 | 29.8 | 1853 |
| 350 MCM (944/24) | 1x185 | 5 | 32.1 | 2225 |
| 500MCM(1225/24) | 1x240 | 5 | 35.1 | 2782 |
| TYPE 4F | ||||
| 6(128/26) | 1x16 | 7.6 | 22.9 | 566 |
| 4(200/26) | 1x25 | 7.6 | 24.1 | 680 |
| 2(280/26) | 1x35 | 7.6 | 25.5 | 810 |
| 1(400/26) | 1x50 | 7.6 | 27.3 | 997 |
| 2/0(356/24) | 1x70 | 7.6 | 29.4 | 1237 |
| 3/0(485/24) | 1x95 | 7.6 | 31.5 | 1520 |
| 4/0(614/24) | 1x120 | 7.6 | 33.3 | 1804 |
| 300 MCM (765/24) | 1x150 | 7.6 | 35.3 | 2131 |
| 350 MCM (944/24) | 1x185 | 7.6 | 37.3 | 2503 |
| 500MCM(1225/24) | 1x240 | 7.6 | 40.3 | 3081 |
