    658TQ to BS 6883

    Application and Description

    These cables are designed for use in offshore applications where mechanical protection is not required. Examples of application include fixed wiring in ships and fixed offshore drilling rigs and oil platforms.

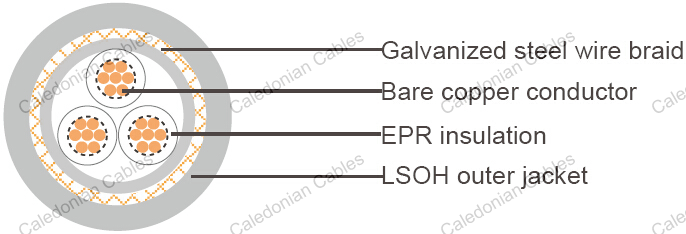

    Cable Construction

    • - Fine bare copper strands
    • - Stranding to BS 6360 CL-2 or IEC 60228 CL-2
    • - EPR(Ethylene Propylene Rubber) rubber insulation to BS 7655
    • - GSWB (Galvanized steel wire braid) armour
    • - LSOH(Low Smoke Zero Halogen), type SW4 to BS 7655

    Core Identification

    • 2 core: Black, red
    • 3 core: Red, yellow, blue
    • 4 core: Red, yellow, blue, black
    • 5 cores and above: white insulation with black numerals

    Technical Characteristics

    • - Working voltage: 600/1000 volts
    • - Test voltage: 3500 volts
    • - Minimum bending radius: up to 10mm^2 - 3xOverall diameter
      10mm^2-25mm^2 - 4xOverall diameter
      Above 25mm^2 - 6xOverall diameter
    • - Temperature Range: -25o C to +85o C
    • - Oxygen Index32%, HCL 5%
    • - Flame retardant: IEC 60332.3

    Cable Parameter

    AWG
    (No of Strands/
    Strand Diameter)    		 No. of Cores x
    Nominal Cross
    Sectional Area
    #xmm^2    		 Nominal
    Thickness of
    Insulation
    mm    		 Nominal
    Thickness
    of
    Bedding
    mm    		 Diameter
    of Braid
    Wire
    mm    		 Nominal
    Thickness of
    Sheath
    mm    		 Nominal
    Overall
    Diameter
    mm    		 Nominal
    Weight
    kg/km
    6582TQ
    17(7/26) 2x1.0 0.8 1 0.3 1.2 12.1 230
    16(7/24) 2x1.5 0.8 1.1 0.3 1.2 12.7 250
    14(7/22) 2x2.5 0.8 1.1 0.3 1.2 13.9 305
    12(7/20) 2x4 1 1.2 0.3 1.3 16.3 420
    10(7/18) 2x6 1 1.2 0.3 1.4 17.6 515
    8(7/16) 2x10 1.2 1.3 0.3 1.5 20.7 725
    6(7/14) 2x16 1.2 1.4 0.3 1.6 23.4 975
    4(7/12) 2x25 1.4 1.5 0.3 1.7 28.1 1340
    2(7/10) 2x35 1.4 1.6 0.3 1.8 30.1 1540
    1(19/13) 2x50 1.6 1.7 0.45 2 35.1 2140
    2/0(19/11) 2x70 1.6 1.9 0.45 2.2 39.3 2820
    3/0(19/10) 2x95 1.8 2.1 0.45 2.3 44.4 3690
    4/0(37/12) 2x120 1.8 2.2 0.45 2.5 48.5 4380
    300MCM
    (37/11)    		 2x150 2 2.3 0.45 2.7 53.4 5360
    350MCM
    (37/10)    		 2x185 2.2 2.5 0.45 2.9 58.8 6550
    500MCM
    (61/11)    		 2x240 2.4 2.8 0.45 3.2 65.8 8310
    -(61/10) 2x300 2.6 3 0.45 3.4 72.7 10200
    6583TQ
    17(7/26) 3x1.0 0.8 1.1 0.3 1.2 12.5 245
    16(7/24) 3x1.5 0.8 1.1 0.3 1.2 13.4 280
    14(7/22) 3x2.5 0.8 1.1 0.3 1.3 14.7 360
    12(7/20) 3x4 1 1.2 0.3 1.3 17 475
    10(7/18) 3x6 1 1.2 0.3 1.4 18.4 586
    8(7/16) 3x10 1.2 1.3 0.3 1.5 22.1 860
    6(7/14) 3x16 1.2 1.4 0.3 1.6 24.6 1150
    4(7/12) 3x25 1.4 1.6 0.3 1.8 29.8 1640
    2(7/10) 3x35 1.4 1.7 0.45 1.9 33.1 2030
    1(19/13) 3x50 1.6 1.8 0.45 2.2 37.2 2640
    2/0(19/11) 3x70 1.6 2 0.45 2.2 41.9 3480
    3/0(19/10) 3x95 1.8 2.2 0.45 2.5 47.6 4650
    4/0(37/12) 3x120 1.8 2.3 0.45 2.6 52 5540
    300MCM
    (37/11)    		 3x150 2 2.5 0.45 2.8 57.9 6770
    350MCM
    (37/10)    		 3x185 2.2 2.7 0.45 3 62.9 8310
    500MCM
    (61/11)    		 3x240 2.4 2.9 0.45 3.3 70.6 10680
    -(61/10) 3x300 2.6 3.2 0.45 3.6 77.9 13100
    6584TQ
    17(7/26) 4x1.0 0.8 1.1 0.3 1.2 13.4 300
    16(7/24) 4x1.5 0.8 1.1 0.3 1.2 14.2 320
    14(7/22) 4x2.5 0.8 1.1 0.3 1.3 15.7 410
    12(7/20) 4x4 1 1.2 0.3 1.4 18.4 570
    10(7/18) 4x6 1 1.3 0.3 1.5 20.1 720
    8(7/16) 4x10 1.2 1.4 0.3 1.6 24 1050
    6(7/14) 4x16 1.2 1.5 0.3 1.7 26.9 1410
    4(7/12) 4x25 1.4 1.7 0.45 1.9 33.6 2160
    2(7/10) 4x35 1.4 1.8 0.45 2 36.1 2510
    1(19/13) 4x50 1.6 1.9 0.45 2.2 41 3290
    2/0(19/11) 4x70 1.6 2.1 0.45 2.4 46.1 4410
    3/0(19/10) 4x95 1.8 2.3 0.45 2.6 52.6 5880
    4/0(37/12) 4x120 1.8 2.5 0.45 2.8 57.4 7050
    300MCM
    (37/11)    		 4x150 2 2.7 0.45 3 63.1 8620
    350MCM
    (37/10)    		 4x185 2.2 2.9 0.45 3.5 69.6 10620
    500MCM
    (61/11)    		 4x240 2.4 3.2 0.45 3.6 78.3 13580
    -(61/10) 4x300 2.6 3.5 0.45 3.9 82.6 16760
    6585TQ
    16(7/24) 5x1.5 0.8 0.8 0.3 1.3 15.6 370
    14(7/22) 5x2.5 0.8 0.8 0.3 1.3 17.4 470
    12(7/20) 5x4 1 1 0.3 1.5 20.3 680
    6586TQ
    16(7/24) 6x1.5 0.8 1.2 0.3 1.3 17 420
    14(7/22) 6x2.5 0.8 1.2 0.3 1.4 18.5 545
    12(7/20) 6x4 1 1.3 0.3 1.5 21.7 765
    6588TQ
    16(7/24) 8x1.5 0.8 1.2 0.3 1.3 18.1 545
    14(7/22) 8x2.5 0.8 1.3 0.3 1.4 20.5 735
    12(7/20) 8x4 1 1.4 0.3 1.5 23.7 1000
    65812TQ
    16(7/24) 12x1.5 0.8 1.3 0.3 1.3 21.7 685
    14(7/22) 12x2.5 0.8 1.4 0.3 1.4 24 919
    12(7/20) 12x4 1 1.6 0.3 1.5 28.2 1240
    65816TQ
    16(7/24) 16x1.5 0.8 1.4 0.3 1.3 23.1 791
    14(7/22) 16x2.5 0.8 1.5 0.3 1.4 25.9 840
    65820TQ
    16(7/24) 20x1.5 0.8 1.4 0.3 1.3 23.9 871
    14(7/22) 20x2.5 0.8 1.5 0.3 1.4 26.9 1190
    65821TQ
    16(7/24) 21x1.5 0.8 1.5 0.3 1.3 25.4 984
    14(7/22) 21x2.5 0.8 1.6 0.3 1.4 28.5 1320
    65824TQ
    16(7/24) 24x1.5 0.8 1.6 0.3 1.3 27.9 1130
    14(7/22) 24x2.5 0.8 1.7 0.45 1.4 32.2 1650
    65827TQ
    16(7/24) 27x1.5 0.8 1.6 0.3 1.3 28.3 1210
    14(7/22) 27x2.5 0.8 1.7 0.45 1.4 32.6 1760
