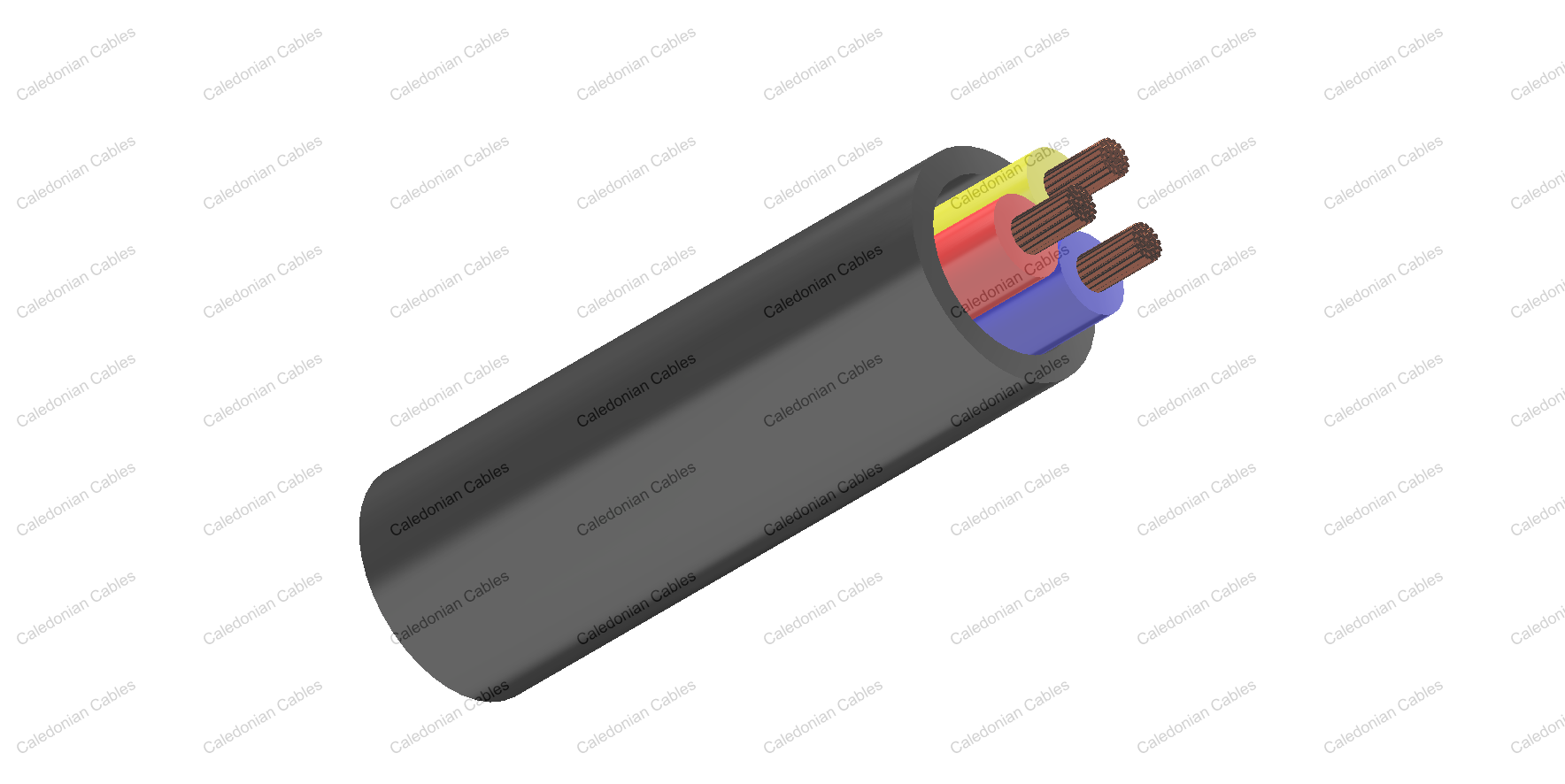

These cables are designed for use in offshore applications where mechanical protection is not required. Examples of application include fixed wiring in ships and fixed offshore drilling rigs and oil platforms.
| AWG (No of Strands/ Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area #xmm^2 |
Nominal Thickness of Insulation mm |
Nominal Thickness of Sheath mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| 6571TQ | |||||
| 17(7/26) | 1X1.0 | 0.8 | 1 | 5.2 | 41 |
| 16(7/24) | 1X1.5 | 0.8 | 1 | 5.5 | 47 |
| 14(7/22) | 1X2.5 | 0.8 | 1 | 6 | 55 |
| 12(7/20) | 1X4 | 1 | 1 | 6.9 | 84 |
| 10(7/18) | 1X6 | 1 | 1 | 7.5 | 110 |
| 8(7/16) | 1X10 | 1.2 | 1.1 | 9 | 165 |
| 6(7/14) | 1X16 | 1.2 | 1.1 | 101 | 235 |
| 4(7/12) | 1X25 | 1.4 | 1.2 | 12.4 | 375 |
| 2(7/10) | 1X35 | 1.4 | 1.2 | 13.3 | 460 |
| 1(19/13) | 1X50 | 1.6 | 1.3 | 15.2 | 670 |
| 2/0(19/11) | 1X70 | 1.6 | 1.4 | 17.2 | 835 |
| 3/0(19/10) | 1X95 | 1.8 | 1.4 | 19.3 | 1200 |
| 4/0(37/12) | 1X120 | 1.8 | 1.5 | 21.4 | 1410 |
| 300MCM(37/11) | 1X150 | 2 | 1.6 | 23.5 | 1890 |
| 350MCM(37/10) | 1X185 | 2.2 | 1.7 | 26 | 2360 |
| 500MCM(61/11) | 1X240 | 2.4 | 1.8 | 29.2 | 3050 |
| -(61/10) | 1X300 | 2.6 | 1.9 | 32.3 | 3700 |
| -(61/9) | 1X400 | 2.8 | 2.1 | 36.4 | 4400 |
| -(61/8) | 1X500 | 3 | 2.2 | 40.2 | 5360 |
| -(127/10) | 1X630 | 3 | 2.3 | 44.1 | 6660 |
| 6572TQ | |||||
| 17(7/26) | 2X1.0 | 0.8 | 1 | 8 | 85 |
| 16(7/24) | 2X1.5 | 0.8 | 1 | 8.6 | 115 |
| 14(7/22) | 2X2.5 | 0.8 | 1.1 | 9.8 | 147 |
| 12(7/20) | 2X4 | 1 | 1.2 | 12 | 225 |
| 10(7/18) | 2X6 | 1 | 1.2 | 13.1 | 285 |
| 8(7/16) | 2X10 | 1.2 | 1.3 | 16 | 440 |
| 6(7/14) | 2X16 | 1.2 | 1.4 | 18.3 | 635 |
| 4(7/12) | 2X25 | 1.4 | 1.6 | 22.9 | 1020 |
| 2(7/10) | 2X35 | 1.4 | 1.6 | 24.7 | 1230 |
| 1(19/13) | 2X50 | 1.6 | 1.8 | 28.4 | 1650 |
| 2/0(19/11) | 2X70 | 1.6 | 1.9 | 32.3 | 2200 |
| 3/0(19/10) | 2X95 | 1.8 | 2.1 | 37 | 2940 |
| 4/0(37/12) | 2X120 | 1.8 | 2.2 | 40.8 | 3680 |
| 300MCM(37/11) | 2X150 | 2 | 2.4 | 45.1 | 4450 |
| 350MCM(37/10) | 2X185 | 2.2 | 2.6 | 50 | 5600 |
| 500MCM(61/11) | 2X240 | 2.4 | 2.8 | 56.6 | 7260 |
| -(61/10) | 2X300 | 2.6 | 3 | 62.7 | 9020 |
| 6573TQ | |||||
| 17(7/26) | 3X1.0 | 0.8 | 1 | 8.4 | 95 |
| 16(7/24) | 3X1.5 | 0.8 | 1.1 | 9.3 | 130 |
| 14(7/22) | 3X2.5 | 0.8 | 1.1 | 10.4 | 175 |
| 12(7/20) | 3X4 | 1 | 1.2 | 12.7 | 270 |
| 10(7/18) | 3X6 | 1 | 1.2 | 13.9 | 355 |
| 8(7/16) | 3X10 | 1.2 | 1.4 | 17.2 | 570 |
| 6(7/14) | 3X16 | 1.2 | 1.4 | 19.5 | 790 |
| 4(7/12) | 3X25 | 1.4 | 1.6 | 24.4 | 1290 |
| 2(7/10) | 3X35 | 1.4 | 1.7 | 26.5 | 1590 |
| 1(19/13) | 3X50 | 1.6 | 1.8 | 30.3 | 2150 |
| 2/0(19/11) | 3X70 | 1.6 | 2 | 34.7 | 2920 |
| 3/0(19/10) | 3X95 | 1.8 | 2.2 | 39.7 | 3790 |
| 4/0(37/12) | 3X120 | 1.8 | 2.3 | 43.8 | 4790 |
| 300MCM(37/11) | 3X150 | 2 | 2.5 | 48.4 | 5860 |
| 350MCM(37/10) | 3X185 | 2.2 | 2.7 | 53.9 | 7290 |
| 500MCM(61/11) | 3X240 | 2.4 | 3 | 61.1 | 9500 |
| -(61/10) | 3X300 | 2.6 | 3.2 | 67.6 | 11960 |
| 6574TQ | |||||
| 17(7/26) | 4X1.0 | 0.8 | 1.1 | 9.3 | 130 |
| 16(7/24) | 4X1.5 | 0.8 | 1.1 | 10.1 | 160 |
| 14(7/22) | 4X2.5 | 0.8 | 1.1 | 11.4 | 220 |
| 12(7/20) | 4X4 | 1 | 1.2 | 13.9 | 345 |
| 10(7/18) | 4X6 | 1 | 1.3 | 15.4 | 450 |
| 8(7/16) | 4X10 | 1.2 | 1.4 | 18.9 | 700 |
| 6(7/14) | 4X16 | 1.2 | 1.5 | 21.7 | 1020 |
| 4(7/12) | 4X25 | 1.4 | 1.7 | 27.1 | 1630 |
| 2(7/10) | 4X35 | 1.4 | 1.8 | 29.4 | 2058 |
| 1(19/13) | 4X50 | 1.6 | 2 | 33.9 | 2700 |
| 2/0(19/11) | 4X70 | 1.6 | 2.1 | 38.5 | 3730 |
| 3/0(19/10) | 4X95 | 1.8 | 2.4 | 44.5 | 4960 |
| 4/0(37/12) | 4X120 | 1.8 | 2.5 | 48.9 | 6240 |
| 300MCM(37/11) | 4X150 | 2 | 2.7 | 54.1 | 7600 |
| 350MCM(37/10) | 4X185 | 2.2 | 2.9 | 60 | 9510 |
| 500MCM(61/11) | 4X240 | 2.4 | 3.2 | 68 | 12410 |
| -(61/10) | 4X300 | 2.6 | 3.5 | 75.7 | 15200 |
| 6575TQ | |||||
| 17(7/26) | 5X1.0 | 0.8 | 1.1 | 10.1 | 155 |
| 16(7/24) | 5X1.5 | 0.8 | 1.1 | 11 | 190 |
| 14(7/22) | 5X2.5 | 0.8 | 1.2 | 12.6 | 280 |
| 12(7/20) | 5X4 | 1 | 1.3 | 15.3 | 425 |
| 6576TQ | |||||
| 17(7/26) | 6X1.0 | 0.8 | 1.1 | 11.1 | 180 |
| 16(7/24) | 6X1.5 | 0.8 | 1.2 | 12.2 | 240 |
| 14(7/22) | 6X2.5 | 0.8 | 1.2 | 13.7 | 330 |
| 12(7/20) | 6X4 | 1 | 1.3 | 16.7 | 505 |
| 6577TQ | |||||
| 17(7/26) | 7X1.5 | 0.8 | 1.2 | 12.2 | 260 |
| 16(7/24) | 7X2.5 | 0.8 | 1.2 | 14 | 365 |
| 65712TQ | |||||
| 17(7/26) | 12X1.5 | 0.8 | 1.2 | 15.9 | 380 |
| 16(7/24) | 12X2.5 | 0.8 | 1.2 | 18.6 | 589 |
| 65716TQ | |||||
| 17(7/26) | 16X1.5 | 0.8 | 1.2 | 17.8 | 500 |
| 16(7/24) | 16X2.5 | 0.8 | 1.2 | 20.9 | 750 |
| 65719TQ | |||||
| 17(7/26) | 19X1.5 | 0.8 | 1.2 | 18.8 | 590 |
| 16(7/24) | 19X2.5 | 0.8 | 1.2 | 22 | 860 |
| 65724TQ | |||||
| 17(7/26) | 24X1.5 | 0.8 | 1.2 | 21.8 | 740 |
| 16(7/24) | 24X2.5 | 0.8 | 1.2 | 25.9 | 1090 |
