    6181B/6182B/6183B/6184B/6185B to BS 7211

    • 6181B/6182B/6183B/6184B/6185B to BS 7211
    • 6181B/6182B/6183B/6184B/6185B to BS 7211
    • 6181B/6182B/6183B/6184B/6185B to BS 7211

    Application and Description

    These cables are designed for fixed wiring purposes in domestic and industrial power/lighting applications. They can be installed in trunking or conduit, or may be surface mounted when used for earthing. They are suitable for use in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. When mechanical protection is required, they can be embedded in concrete.

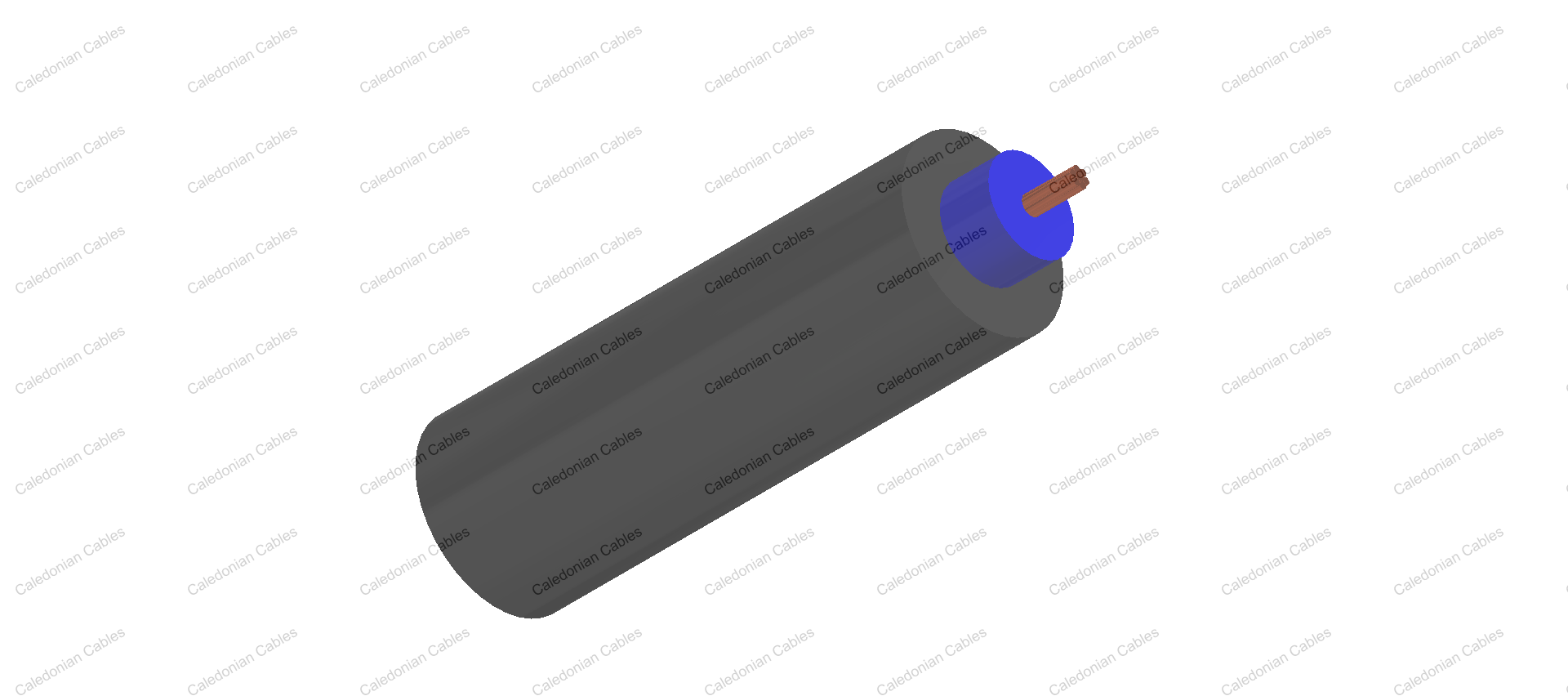

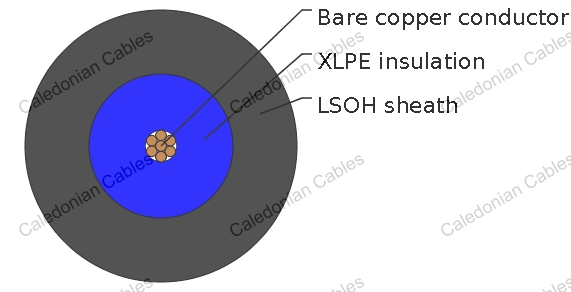

    Cable Construction

    • - Bare copper made of strands conductor
    • - Stranding to IEC 60228 CL-1/2
    • - Thermosetting insulation, type EI 5 or type GP 8 insulation
    • - For 2 cores and above, the cores shall be laid up together. Centre filler may be used; the laid up cores
      may be covered by an optional extruded inner covering or separating tape
    • - LSOH type LTS4 sheath

    Core Identification

    • 2-core: brown and blue;
    • 3-core: brown, black and grey;
    • 4-core: blue, brown, black and grey;
    • 5-core: greenlyellow, blue, brown, black and grey

    Technical Characteristics

    • - Working voltage: 450/750v
    • - Operating temperature: -15o C to +90o C
    • - Insulation resistance: 10 MΩxkm
    • - Halogen free acc. to EN 50267-2-1 / IEC 60754-1
    • - Smoke density acc. to EN 50268-2 / IEC 61034-2
    • - Corrosivity of gases acc. to EN 50267-2-2, IEC 60754-2
    • - Flame retardancy acc. to EN 50265-2-1, IEC 60332-1

    Cable Parameter

    AWG
    (No of Strands/
    Strand Diameter)
    No. of Cores x
    Nominal Cross
    Sectional Area
    #xmm^2
    Nominal
    Thickness of
    Insulation
    mm
    Nominal
    Thickness
    of inner
    Covering
    mm
    Nominal
    Thickness
    of Sheath
    mm
    Nominal
    Overall
    Diameter
    lower limit
    mm
    Nominal
    Overall
    Diameter
    upper limit
    mm
    6181B
    18(solid) 1x1.0 0.7 - 0.8 3.9 4.8
    18(7/26) 1x1.0 0.7 - 0.8 4 4.9
    16(solid) 1x1.5 0.7 - 0.8 4.2 5
    16(7/24) 1x1.5 0.7 - 0.8 4.3 5.2
    14(solid) 1x2.5 0.7 - 0.8 4.6 5.5
    14(7/22) 1x2.5 0.7 - 0.8 4.7 5.6
    12(solid) 1x4 0.7 - 0.9 5.2 6.3
    12(7/20) 1x4 0.7 - 0.9 5.3 6.4
    10(solid) 1x6 0.7 - 0.9 5.7 6.8
    10(7/18) 1x6 0.7 - 0.9 5.9 7.1
    8(7/16) 1x10 0.7 - 0.9 6.7 8.1
    6(7/14) 1x16 0.7 - 0.9 7.6 9.2
    4(7/12) 1x25 0.9 - 1 9.7 11.4
    2(7/10) 1x35 0.9 - 1.1 10.6 12.8
    6182B
    18(solid) 2x1.0 0.7 0.4 1.2 7.1 9.5
    18(7/26) 2x1.0 0.7 0.4 1.2 7.3 9.7
    16(solid) 2x1.5 0.7 0.4 1.2 7.6 10.1
    16(7/24) 2x1.5 0.7 0.4 1.2 7.8 10.3
    14(solid) 2x2.5 0.7 0.4 1.2 8.4 11
    14(7/22) 2x2.5 0.7 0.4 1.2 8.5 11.3
    12(solid) 2x4 0.7 0.4 1.2 9.2 12.1
    12(7/20) 2x4 0.7 0.4 1.2 9.5 12.4
    10(solid) 2x6 0.7 0.4 1.2 10.2 13.2
    10(7/18) 2x6 0.7 0.4 1.2 10.6 13.7
    8(solid) 2x10 0.7 0.4 1.4 12.1 16
    8(7/16) 2x10 0.7 0.6 1.4 12.7 16.7
    6(7/14) 2x16 0.7 0.6 1.4 14.4 18.8
    4(7/12) 2x25 0.9 0.8 1.4 17.7 23.2
    2(7/10) 2x35 0.9 0.8 1.6 20 26
    6183B
    18(solid) 3x1.0 0.7 0.4 1.2 7.5 10.0
    18(7/26) 3x1.0 0.7 0.4 1.2 7.7 10.2
    16(solid) 3x1.5 0.7 0.4 1.2 8.0 10.6
    16(7/24) 3x1.5 0.7 0.4 1.2 8.2 10.9
    14(solid) 3x2.5 0.7 0.4 1.2 8.8 11.6
    14(7/22) 3x2.5 0.7 0.4 1.2 9.0 11.9
    12(solid) 3x4 0.7 0.4 1.2 9.8 12.7
    12(7/20) 3x4 0.7 0.4 1.2 10.1 13.1
    10(solid) 3x6 0.7 0.4 1.2 11.2 14.4
    10(7/18) 3x6 0.7 0.4 1.4 11.6 15.0
    8(solid) 3x10 0.7 0.6 1.4 12.8 16.9
    8(7/16) 3x10 0.7 0.6 1.4 13.5 17.7
    6(7/14) 3x16 0.7 0.6 1.4 15.3 19.9
    4(7/12) 3x25 0.9 0.8 1.4 18.9 24.6
    2(7/10) 3x35 0.9 0.8 1.6 2 1.3 27.6
    6184B
    18(solid) 4x1.0 0.7 0.4 1.2 8.1 10.7
    18(7/26) 4x1.0 0.7 0.4 1.2 8.3 11.0
    16(solid) 4x1.5 0.7 0.4 1.2 8.7 11.4
    16(7/24) 4x1.5 0.7 0.4 1.2 8.9 11.7
    14(solid) 4x2.5 0.7 0.4 1.2 9.6 12.6
    14(7/22) 4x2.5 0.7 0.4 1.2 9.9 12.8
    12(solid) 4x4 0.7 0.4 1.2 10.7 13.8
    12(7/20) 4x4 0.7 0.4 1.2 11.0 14.2
    10(solid) 4x6 0.7 0.4 1.4 12.2 16.1
    10(7/18) 4x6 0.7 0.6 1.4 12.7 16.7
    8(solid) 4x10 0.7 0.6 1.4 14.1 18.4
    8(7/16) 4x10 0.7 0.6 1.4 14.8 19.2
    6(7/14) 4x16 0.7 0.6 1.4 16.9 21.8
    4(7/12) 4x25 0.9 0.8 1.6 21.2 27.5
    2(7/10) 4x35 0.9 1.0 1.6 23.5 30.7
    6185B
    18(solid) 5x1.0 0.7 0.4 1.2 8.8 11.5
    18(7/26) 5x1.0 0.7 0.4 1.2 9.0 11.9
    16(solid) 5x1.5 0.7 0.4 1.2 9.4 12.3
    16(7/24) 5x1.5 0.7 0.4 1.2 9.7 12.6
    14(solid) 5x2.5 0.7 0.4 1.2 10.5 13.6
    14(7/22) 5x2.5 0.7 0.4 1.2 10.7 13.9
    12(solid) 5x4 0.7 0.4 1.4 12.0 15.9
    12(7/20) 5x4 0.7 0.6 1.4 12.4 16.4
    10(solid) 5x6 0.7 0.6 1.4 13.3 17.5
    10(7/18) 5x6 0.7 0.6 1.4 13.8 18.1
    8(solid) 5x10 0.7 0.6 1.4 15.4 20.0
    8(7/16) 5x10 0.7 0.6 1.4 16.2 20.9
    6(7/14) 5x16 0.7 0.8 1.4 18.5 24.2
    4(7/12) 5x25 0.9 1.0 1.6 23.3 30.5
    2(7/10) 5x35 0.9 1.0 1.6 25.9 33.6
