Application and Description

These cables may be used as an indoor general wiring cable primarily for installations in public areas. Examples include use on pendant lighting drops or as a general supply lead within hospital or airport projects. They are suitable for installations where fire, smoke emission and toxic fumes create a potential threat to life and equipment. 318B is equivalent to harmonized code H05Z1Z1-F.

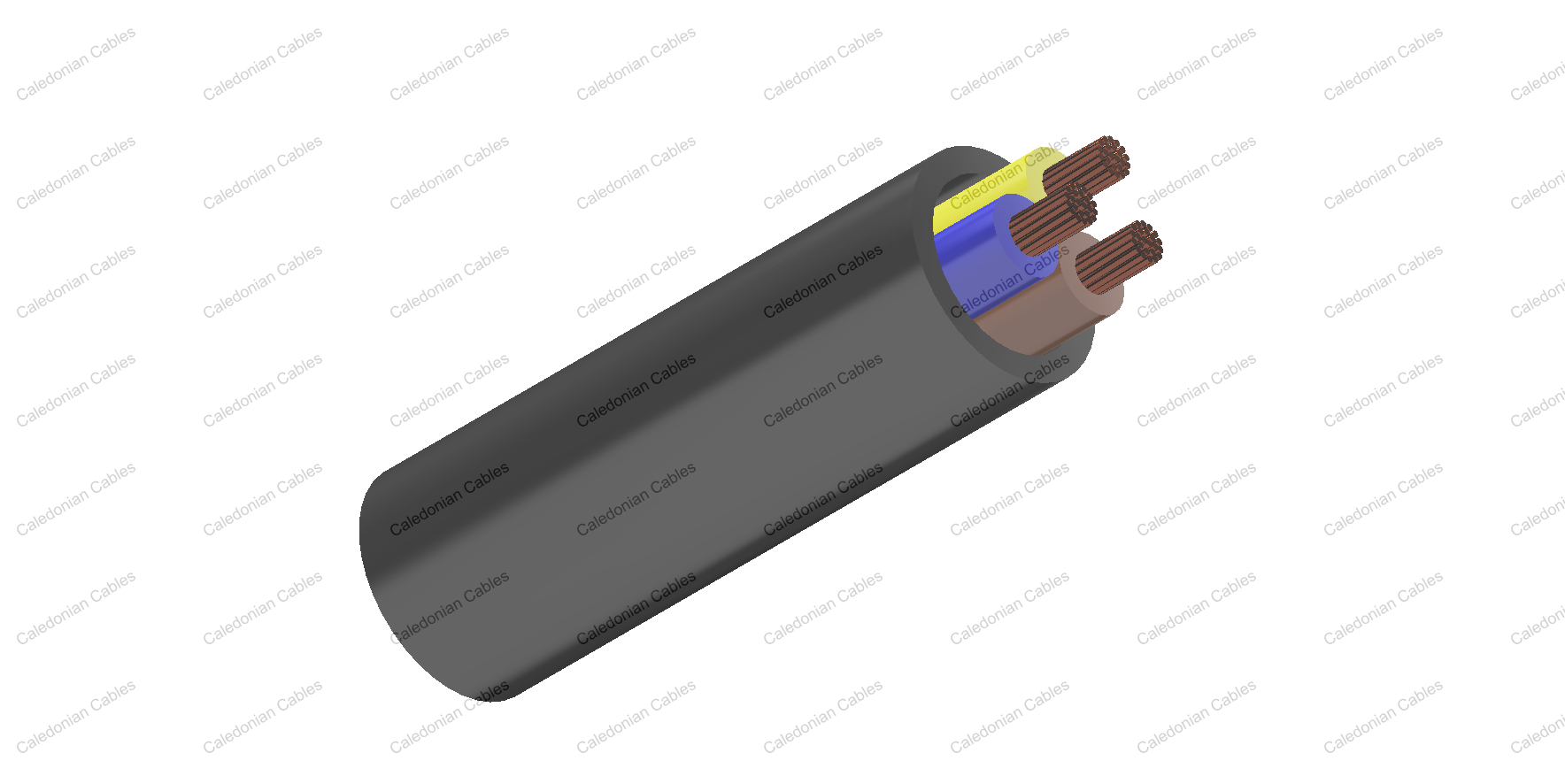

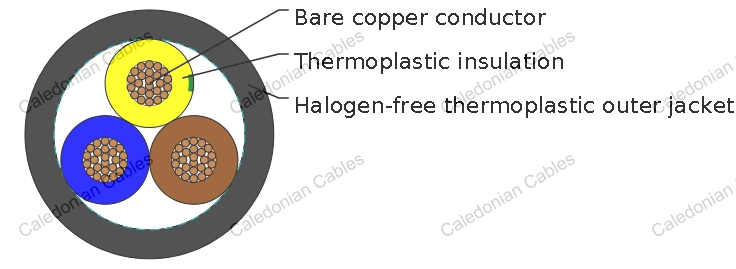

Cable Construction

• - Fine bare copper strands
• - Stranding to BS 6360 CL-5 or IEC 60228 CL-5
• - Halogen-fee thermoplastic TI6 core insulation
• - Green/Yellow grounding (3 conductors and above)
• - Halogen-fee thermoplastic TM7 outer jacket

Core Identification

• 2 Cores: Brown, Blue
• 3 Cores: Brown, Blue and Green/Yellow
• 4 Cores: Brown, Grey, Black and Green/Yellow
• 5 Cores: Brown, Blue, Grey, Black and Green/Yellow

Technical Characteristics

• - Working voltage: 300/500 volts
• - Test voltage: 2000 volts
• - Flexing bending radius: 6xOverall diameter
• - Fixed bending radius: 4xOverall diameter
• - Operating temperature: -30o C to +90o C
• - Short circuit temperature: +160o C
• - Insulation resistance: 20 MΩxkm
• - Halogen free acc. to EN 50267-2-1 / IEC 60754-1
• - Smoke density acc. to EN 50268-2 / IEC 61034-2
• - Corrosivity of gases acc. to EN 50267-2-2, IEC 60754-2
• - Flame retardancy acc. to EN 50265-2-1, IEC 60332-1

Cable Parameter
