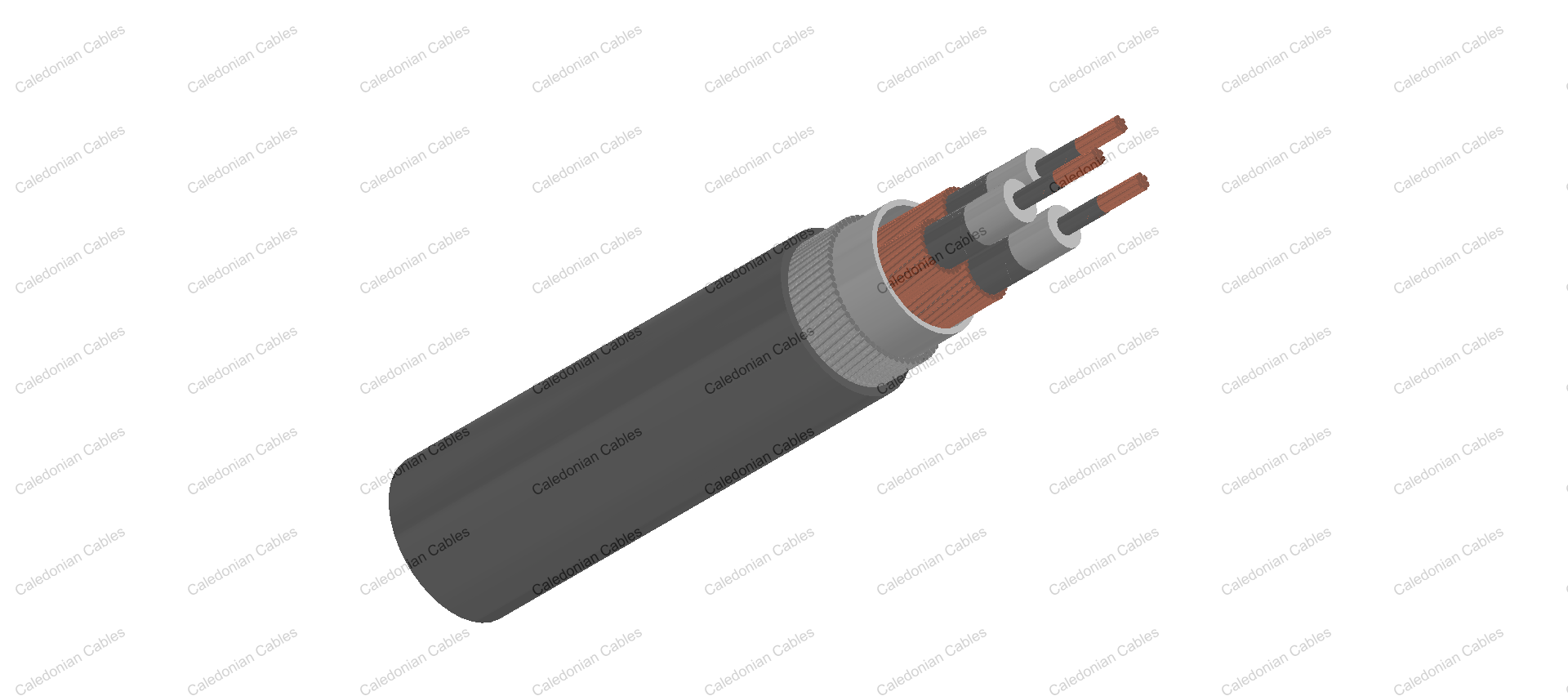

    6.35/11kV Three Core Individual Screened & PVC/SWA/PVC Sheathed (Cu Conductor)

    • 6.35/11kV Three Core Individual Screened & PVC/SWA/PVC Sheathed (Cu Conductor)
    • 6.35/11kV Three Core Individual Screened & PVC/SWA/PVC Sheathed (Cu Conductor)

    Application

    These cables are designed to be used for the supply of electrical energy in fixed applications up to the rated voltages at a nominal power frequency between 49Hz and 61Hz., they are suitable for use in distribution installation, electrical power station , they are applied for installation, outdoors, underground where subject to mechanical damage.

    Standard

    AS/NZS 1429.1

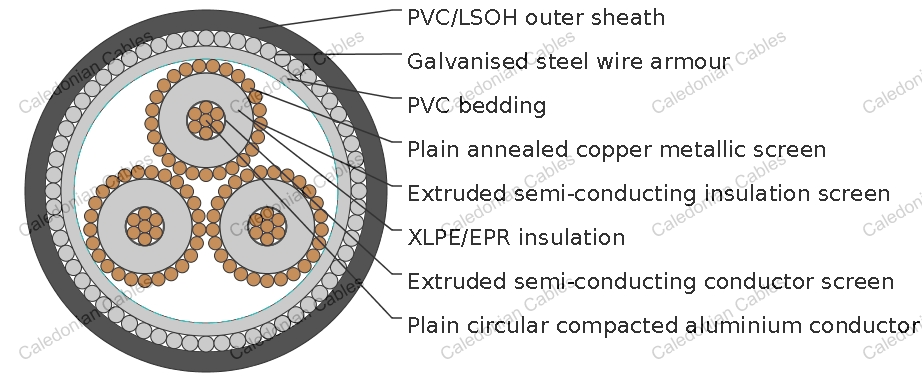

    Cable Construction

    • CONDUCTOR: Plain circular compacted copper to AS/NZS1125 Maximum Continuous Operating Temperature: 90°C
    • CONDUCTOR SCREEN: Extruded semi-conducting compound, bonded to the insulation and applied in the same operation as the insulation
    • INSULATION: Cross Linked Polyethylene (XLPE) – standard Ethylene Propylene Rubber (EPR) – alternative
    • INSULATION SCREEN: Extruded semi-conducting compound
    • METALLIC SCREEN: Plain annealed copper wire: 10kA for nominal 1 second(HEAVY DUTY)
    • BEDDING: PVC
    • ARMOURING:Galvanised steel wires
    • SHEATH: Black 5V-90 polyvinyl chloride (PVC) – standard
    • Orange 5V-90 PVC inner plus black high density polyethylene (HDPE) outer – alternative Low smoke zero halogen (LSOH) – alternative

    Technical Characteristics

    NOMINAL CONDUCTOR AREA MAXIMUM CONDUCTOR DC RESISTANCE AT 20°C COND. AC RESISTANCE AT 50HZ AND 90°C INDUCTIVE REACTANCE AT 50HZ INSULATION RESISTANCE AT 20°C CONDUCTOR TO SCREEN CAPA CITANCE CHARGING CURRENT PER PHASE DIELE CTRIC LOSS PER PHRASE MAXI MUM DIAEL ECTRIC STRESS SCREENDC RESISTANCE AT 20°C ARMOURDC RESISTANCE AT 20°C ZERO SEQUENCE RESISTANCE AT 20°C ZERO SEQ. REACT. AT 50HZ
    MM2 OHM/KM OHM/KM OHM/KM MEGOHM. KM ΜF? X KM A X KM W X? KM KV X? MM OHM /KM OHM/KM OHM/KM OHM/KM
    16 1.15 1.47 0.142 14000 0.177 0.354 8.98 2.77 1.06 0.77 2.49 0.0922
    25 0.727 0.927 0.134 12000 0.198 0.394 10 2.65 0.707 0.629 1.73 0.0845
    35 0.524 0.668 0.127 11000 0.219 0.436 11.1 2.55 0.53 0.592 1.36 0.0782
    50 0.387 0.494 0.121 10000 0.242 0.484 12.3 2.46 0.366 0.559 1.05 0.0725
    70 0.268 0.342 0.115 8800 0.275 0.549 13.9 2.37 0.265 0.521 0.795 0.0663
    95 0.193 0.247 0.106 7700 0.314 0.626 15.9 2.3 0.265 0.479 0.706 0.058
    120 0.153 0.196 0.102 7000 0.346 0.689 17.5 2.25 0.265 0.451 0.655 0.0543
    150 0.124 0.16 0.099 6400 0.374 0.747 19 2.21 0.266 0.425 0.616 0.0515
    185 0.0991 0.128 0.0961 5900 0.407 0.811 20.6 2.17 0.265 0.403 0.58 0.0488
    240 0.0754 0.0985 0.0926 5300 0.456 0.909 23.1 2.13 0.266 0.293 0.495 0.0455
    300 0.0601 0.0796 0.0904 4800 0.503 1 25.5 2.1 0.265 0.272 0.464 0.0434
    400 0.047 0.0638 0.087 4300 0.561 1.12 28.5 2.07 0.265 0.25 0.435 0.0403
    500 0.0373 0.0525 0.0847 3900 0.62 1.24 31.4 2.05 0.265 0.232 0.411 0.0381

    Cable Parameter

    SECTIONAL AREA OF CONDUCTOR NOM. CONDUCTOR DIAMETER NOM. INSULATION THICKNESS NOM. DIAMETE OVER INSULATION SCREEN AREA ON CORES NO. AND DIAMTER OF SCREENED WIRES NOM. DIAMETE OVER SCREENED WIRES NOM. DIAMETE OVER BEDDING NOM. DIAMETE OF ARMOUR NOM. DIAMETE OVER ARMOUR NOM. OVERALL DIAMETER ? APPROX. MASS
    MM2 MM MM MM MM2 NO X MM MM MM MM MM MM KG/100M
    16 4.8 3.4 12.8 17 10 x 0.85 16.1 37.9 2 41.9 46.9 330
    25 5.8 3.4 13.8 25.5 15 x 0.85 17.1 40.2 2.5 45.2 50.4 430
    35 6.8 3.4 14.8 34 20 x 0.85 18.1 42.6 2.5 47.6 53 490
    50 8 3.4 16 49.4 29 x 0.85 19.3 45.1 2.5 50.1 55.7 565
    70 9.6 3.4 17.6 68.1 40 x 0.85 20.9 48.8 2.5 53.8 59.6 680
    95 11.5 3.4 19.4 68.1 40 x 0.85 22.7 53 2.5 58 64.1 795
    120 13.1 3.4 21 68.1 40 x 0.85 24.3 56.4 2.5 61.4 67.9 910
    150 14.5 3.4 22.4 68.1 40 x 0.85 25.7 59.9 2.5 64.9 71.5 1020
    185 16.1 3.4 24.1 68.1 40 x 0.85 27.4 63.3 2.5 68.3 75.2 1150
    240 18.5 3.4 26.5 68.1 40 x 0.85 29.8 68.8 3.15 75.1 82.3 1470
    300 20.7 3.4 28.9 68.1 40 x 0.85 32.2 74.1 3.15 80.4 88 1710
    400 23.6 3.4 31.8 68.1 40 x 0.85 35.3 81.2 3.15 87.5 95.5 2070
    500 26.5 3.4 34.7 68.1 40 x 0.85 38.2 87.6 3.15 93.9 102.4 2450
