    6.35/11kV Three Core Individual Screened & PVC/SWA/PVC Sheathed (Al Conductor)

    • 6.35/11kV Three Core Individual Screened & PVC/SWA/PVC Sheathed (Al Conductor)
    • 6.35/11kV Three Core Individual Screened & PVC/SWA/PVC Sheathed (Al Conductor)

    Application

    These cables are designed to be used for the supply of electrical energy in fixed applications up to the rated voltages at a nominal power frequency between 49Hz and 61Hz., they are suitable for use in distribution installation, electrical power station , they are applied for installation, outdoors, underground where subject to mechanical damage.

    Standard

    AS/NZS 1429.1

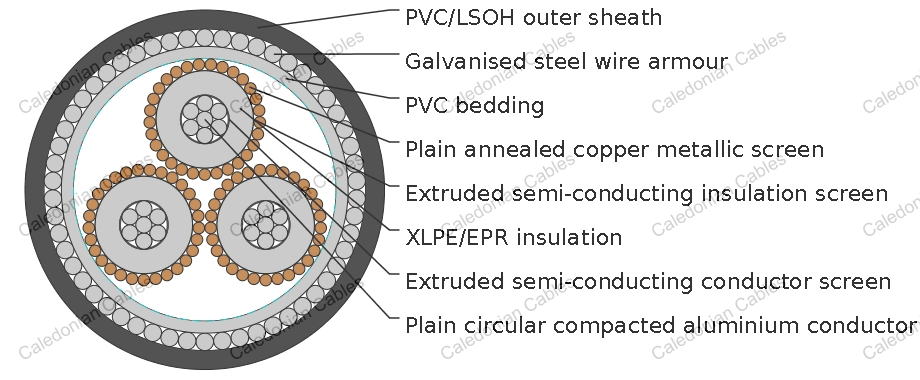

    Cable Construction

    • CONDUCTOR: Plain circular compacted aluminium to AS/NZS1125 Maximum Continuous Operating Temperature: 90°C
    • CONDUCTOR SCREEN: Extruded semi-conducting compound, bonded to the insulation and applied in the same operation as the insulation
    • INSULATION: Cross Linked Polyethylene (XLPE) – standard Ethylene Propylene Rubber (EPR) – alternative
    • INSULATION SCREEN: Extruded semi-conducting compound
    • METALLIC SCREEN: Plain annealed copper wire: 10kA for nominal 1 second(HEAVY DUTY)
    • BEDDING: PVC
    • ARMOURING: Galvanised steel wires
    • SHEATH: Black 5V-90 polyvinyl chloride (PVC) – standard
    • Orange 5V-90 PVC inner plus black high density polyethylene (HDPE) outer – alternative Low smoke zero halogen (LSOH) – alternative

    Technical Characteristics

    NOMINAL CONDUCTOR AREA MAXIMUM CONDUCTOR DC RESISTANCE AT 20°C COND. AC RESISTANCE AT 50HZ AND 90°C INDUCTIVE REACTANCE AT 50HZ INSULATION RESISTANCE AT 20°C CONDUCTOR TO SCREEN CAPACITANCE CHARGING CURRENT PER PHASE DIELEC TRIC LOSS PER PHRASE MAXIMUM DIAELECTRIC STRESS SCREEN DC RESIST ANCE AT 20°C ARMOURDC RESISTANCE AT 20°C ZERO SEQUENCE RESISTANCE AT 20°C ? ZERO SEQ. REACT. AT 50HZ
    MM2 OHM/KM OHM/KM OHM/KM MEGOHM. KM ΜF X KM A X KM W X KM KV X MM OHM /KM OHM/KM OHM/KM ? OHM/KM
    35 0.868 1.11 0.127 11000 0.22 0.439 11.1 2.54 0.758 0.592 1.87 0.0779
    50 0.641 0.821 0.121 9900 0.243 0.486 12.3 2.46 0.559 0.559 1.48 0.0723
    70 0.443 0.569 0.112 8700 0.276 0.551 14 2.37 0.393 0.521 1.12 0.0634
    95 0.32 0.41 0.106 7800 0.311 0.62 15.8 2.3 0.295 0.479 0.868 0.0583
    120 0.253 0.325 0.103 7100 0.339 0.677 17.2 2.25 0.265 0.458 0.757 0.0549
    150 0.206 0.265 0.0996 6600 0.368 0.734 18.6 2.22 0.265 0.431 0.699 0.052
    185 0.164 0.211 0.0968 6100 0.398 0.794 20.2 2.18 0.265 0.408 0.646 0.0494
    240 0.125 0.161 0.0933 5400 0.445 0.887 22.5 2.14 0.266 0.297 0.546 0.0461
    300 0.1 0.13 0.091 4900 0.491 0.98 24.9 2.11 0.266 0.28 0.51 0.0441
    400 0.0778 0.102 0.0876 4400 0.548 1.09 27.8 2.08 0.266 0.254 0.468 0.0409
    500 0.0617 0.0823 0.0847 3900 0.62 1.24 31.4 2.05 0.265 0.232 0.434 0.0381

    Cable Parameter

    SECTIONAL AREA OF CONDUCTOR NOM. CONDUCTOR DIAMETER NOM. INSULATION THICKNESS NOM. DIAMETE OVER INSULATION SCREEN AREA ON CORES NO. AND DIAMTER OF SCREENED WIRES NOM. DIAMETE OVER SCREENED WIRES NOM. DIAMETE OVER BEDDING NOM. DIAMETE OF ARMOUR NOM. DIAMETE OVER ARMOUR NOM. OVERALL DIAMETER ? APPROX. MASS
    MM2 MM MM MM MM2 NO X MM MM MM MM MM MM KG/100M
    35 6.9 3.4 14.9 23.8 14 x 0.85 18.2 42.6 2.5 47.6 53 415
    50 8.1 3.4 16 32.3 19 x 0.85 19.3 45.2 2.5 50.2 55.8 460
    70 9.6 3.4 17.6 46 27 x 0.85 20.9 48.9 2.5 53.9 59.7 530
    95 11.4 3.4 19.3 61.3 36 x 0.85 22.6 52.8 2.5 57.8 63.8 610
    120 12.8 3.4 20.7 68.1 40 x 0.85 24 55.8 2.5 60.8 67.2 675
    150 14.2 3.4 22.1 68.1 40 x 0.85 25.4 59 2.5 64 70.7 730
    185 15.7 3.4 23.6 68.1 40 x 0.85 26.9 62.3 2.5 67.3 74.1 800
    240 18 3.4 25.9 68.1 40 x 0.85 29.2 67.4 3.15 73.7 81 990
    300 20.1 3.4 28.3 68.1 40 x 0.85 31.6 72.6 3.15 78.9 86.6 1110
    400 23 3.4 31.1 68.1 40 x 0.85 34.6 79.8 3.15 86.1 94.1 1290
    500 26.5 3.4 34.7 68.1 40 x 0.85 38.2 87.6 3.15 93.9 102.4 1500
