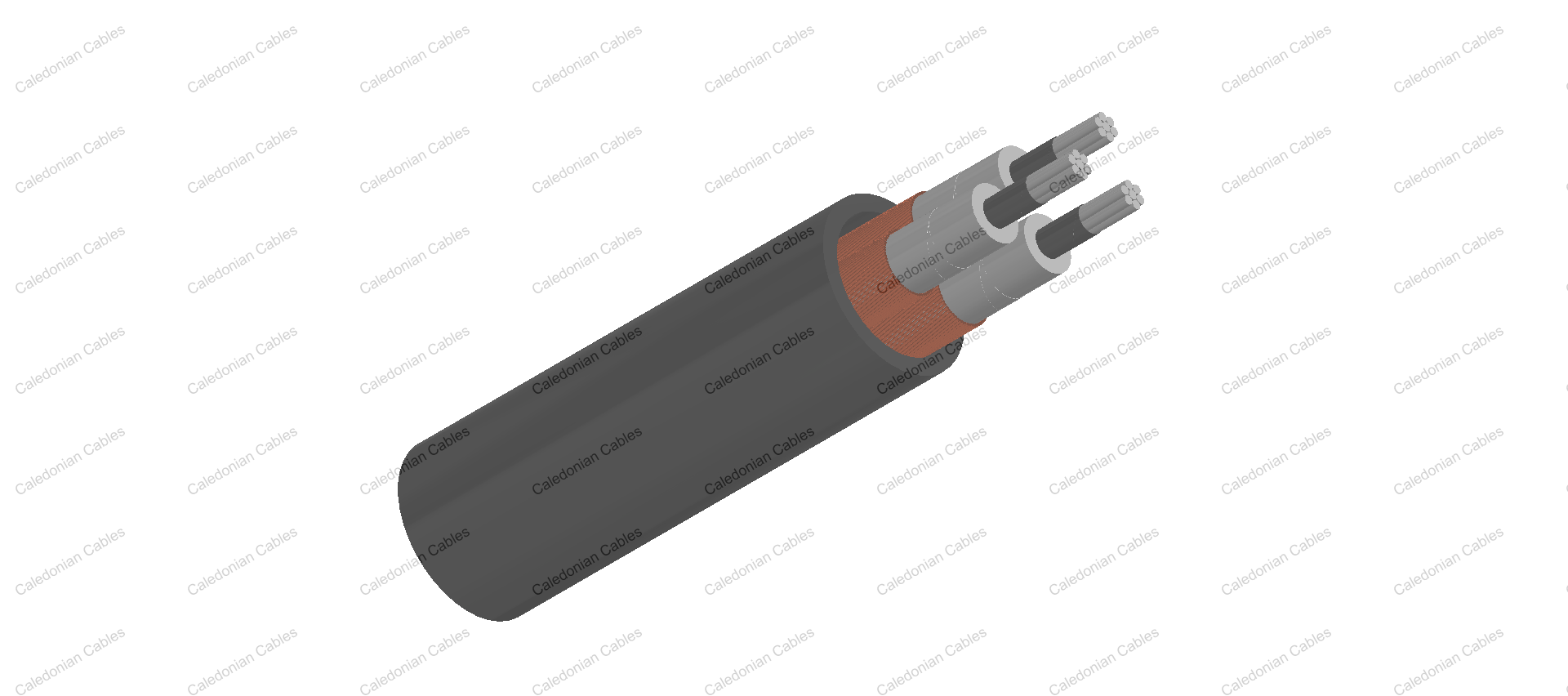

    6.35/11kV Three Core Individual Screened & PVC Sheathed (Al Conductor)

    • 6.35/11kV Three Core Individual Screened & PVC Sheathed (Al Conductor)
    • 6.35/11kV Three Core Individual Screened & PVC Sheathed (Al Conductor)

    Application

    These cables are designed to be used for the supply of electrical energy in fixed applications up to the rated voltages at a nominal power frequency between 49Hz and 61Hz., they are suitable for use in distribution installation, electrical power station , they are applied for installation, outdoors, underground where subject to mechanical damage.

    Standard

    AS/NZS 1429.1

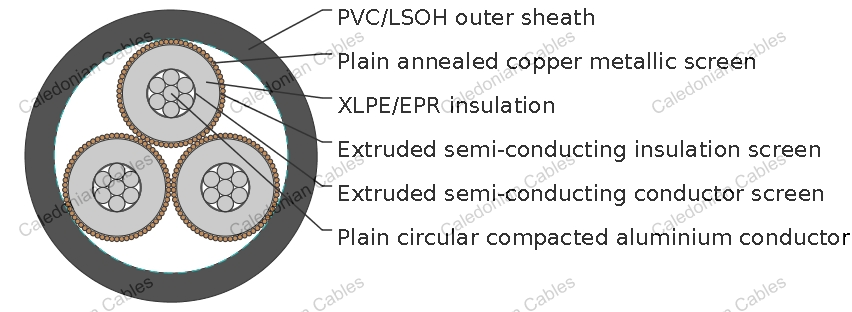

    Cable Construction

    • CONDUCTOR: Plain circular compacted aluminium to AS/NZS1125 Maximum Continuous Operating Temperature: 90°C
    • CONDUCTOR SCREEN: Extruded semi-conducting compound, bonded to the insulation and applied in the same operation as the insulation
    • INSULATION: Cross Linked Polyethylene (XLPE) – standard Ethylene Propylene Rubber (EPR) – alternative
    • INSULATION SCREEN: Extruded semi-conducting compound
    • METALLIC SCREEN: Plain annealed copper wire: 3kA for nominal 1 second(LIGHT DUTY) Plain annealed copper wire: 10kA for nominal 1 second(HEAVY DUTY)
    • SHEATH: Black 5V-90 polyvinyl chloride (PVC) – standard
    • Orange 5V-90 PVC inner plus black high density polyethylene (HDPE) outer – alternative Low smoke zero halogen (LSOH) – alternative

    Technical Characteristics

    LIGHT DUTY

    NOMINAL CONDUCTOR AREA MAXIMUM CONDUCTOR DC RESISTANCE AT 20°C COND. AC RESISTANCE AT 50HZ AND 90°C INDUCTIVE REACTANCE AT 50HZ INSULATION RESISTANCE AT 20°C CONDUCTOR TO SCREEN CAPACITANCE MAXIMUM DIAELECTRIC STRESS CURRENT RATINGS
    UNENCLOSED IN AIR UNENCLOSED IN AIR UNENCLOSED IN AIR
    MM2 OHM/KM OHM/KM OHM/KM MEGOHM.KM ΜF X KM KV X MM A A A
    35 0.868 1.11 0.127 11000 0.22 2.54 136 133 111
    50 0.641 0.821 0.121 9900 0.243 2.46 162 157 130
    70 0.443 0.569 0.112 8700 0.276 2.37 201 191 160
    95 0.32 0.41 0.106 7800 0.311 2.3 244 228 191
    120 0.253 0.325 0.103 7100 0.339 2.25 280 259 220
    150 0.206 0.265 0.0996 6600 0.368 2.22 317 290 246
    185 0.164 0.211 0.0968 6100 0.398 2.18 363 328 279
    240 0.125 0.161 0.0933 5400 0.445 2.14 426 379 323
    300 0.1 0.13 0.091 4900 0.491 2.11 486 427 370
    400 0.0778 0.102 0.0876 4400 0.548 2.08 562 487 423

    Cable Parameter

    LIGHT DUTY

    SECTIONAL AREA OF CONDUCTOR NOM. CONDUCTOR DIAMETER NOM. INSULATION THICKNESS NOM. DIAMETE OVER INSULATION SCREEN AREA ON EACH CORE NO. AND DIAMTER OF SCREENED WIRES NOM. DIAMETE OVER SCREENED WIRES NOM. OVERALL DIAMETER ? APPROX. MASS
    MM2 MM MM MM MM2 NO X MM MM MM KG/100M
    35 6.9 3.4 14.9 6.8 12 x 0.85 16.3 43.9 153
    50 8.1 3.4 16 6.8 12 x 0.85 17.5 46.7 175
    70 9.6 3.4 17.6 7.4 13 x 0.85 19.0 50.4 211
    95 11.4 3.4 19.3 7.9 14 x 0.85 20.7 54.2 251
    120 12.8 3.4 20.7 8.5 15 x 0.85 22.1 57.5 289
    150 14.2 3.4 22.1 8.5 15 x 0.85 23.5 60.7 326
    185 15.7 3.4 23.6 9.6 17 x 0.85 25.2 64.6 379
    240 18 3.4 25.9 10.2 18 x 0.85 27.6 70.2 459
    300 20.1 3.4 28.3 10.8 19 x 0.85 29.6 74.7 535
    400 23 3.4 31.1 11.9 21 x 0.85 32.7 82.3 655

    Technical Characteristics

    HEAVY DUTY

    NOMINAL CONDUCTOR AREA MAXIMUM CONDUCTOR DC RESISTANCE AT 20°C COND. AC RESISTANCE AT 50HZ AND 90°C INDUCTIVE REACTANCE AT 50HZ INSULATION RESISTANCE AT 20°C CONDUCTOR TO SCREEN CAPACITANCE MAXIMUM DIAELECTRIC STRESS CURRENT RATINGS
    UNENCLOSED IN AIR UNENCLOSED IN AIR UNENCLOSED IN AIR
    MM2 OHM/KM OHM/KM OHM/KM MEGOHM.KM ΜF X KM KV X MM A A A
    35 0.868 1.11 0.127 11000 0.22 2.54 136 133 111
    50 0.641 0.821 0.121 9900 0.243 2.46 162 157 130
    70 0.443 0.569 0.112 8700 0.276 2.37 201 191 160
    95 0.32 0.41 0.106 7800 0.311 2.3 244 228 191
    120 0.253 0.325 0.103 7100 0.339 2.25 280 259 220
    150 0.206 0.265 0.0996 6600 0.368 2.22 317 290 246
    185 0.164 0.211 0.0968 6100 0.398 2.18 363 328 279
    240 0.125 0.161 0.0933 5400 0.445 2.14 426 379 323
    300 0.1 0.13 0.091 4900 0.491 2.11 486 427 370
    400 0.0778 0.102 0.0876 4400 0.548 2.08 562 487 423

    Cable Parameter

    HEAVY DUTY

    SECTIONAL AREA OF CONDUCTOR NOM. CONDUCTOR DIAMETER NOM. INSULATION THICKNESS NOM. DIAMETE OVER INSULATION SCREEN AREA ON EACH CORE NO. AND DIAMTER OF SCREENED WIRES NOM. DIAMETE OVER SCREENED WIRES NOM. OVERALL DIAMETER ? APPROX. MASS
    MM2 MM MM MM MM2 NO X MM MM MM KG/100M
    35 6.9 3.4 14.9 7.9 14 x 0.85 18.2 44.6 165
    50 8.1 3.4 16 10.8 19 x 0.85 19.3 47.5 195
    70 9.6 3.4 17.6 15.3 27 x 0.85 20.9 51.1 245
    95 11.4 3.4 19.3 20.4 36 x 0.85 22.6 55 295
    120 12.8 3.4 20.7 22.7 40 x 0.85 24 58.2 340
    150 14.2 3.4 22.1 22.7 40 x 0.85 25.4 61.5 375
    185 15.7 3.4 23.6 22.7 40 x 0.85 26.9 64.9 420
    240 18 3.4 25.9 22.7 40 x 0.85 29.2 70.3 490
    300 20.1 3.4 28.3 22.7 40 x 0.85 31.6 75.5 570
    400 23 3.4 31.1 22.7 40 x 0.85 34.6 82.8 690
