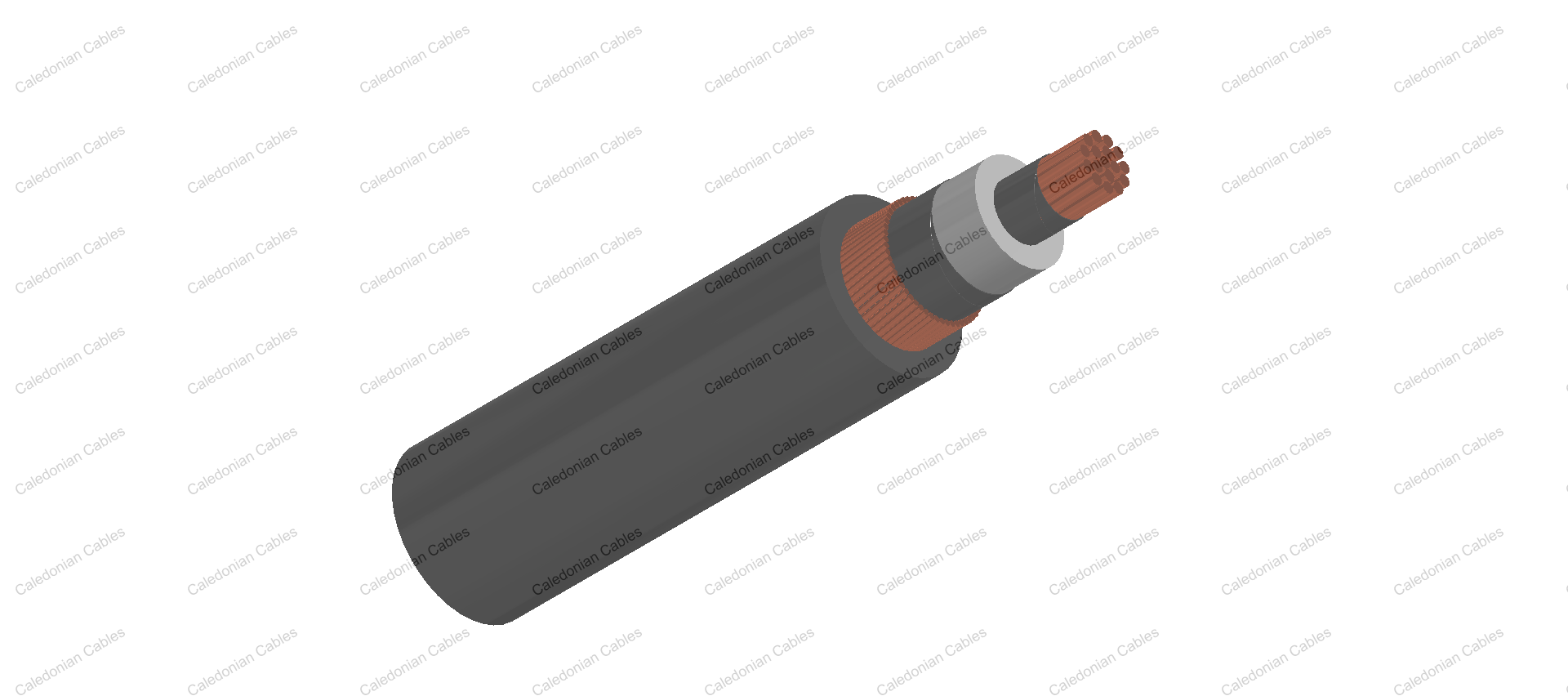

    6.35/11kV Single Core Screened & PVC Sheathed (Cu Conductor)

    • 6.35/11kV Single Core Screened & PVC Sheathed (Cu Conductor)
    • 6.35/11kV Single Core Screened & PVC Sheathed (Cu Conductor)

    Application

    These cables are designed to be used for the supply of electrical energy in fixed applications up to the rated voltages at a nominal power frequency between 49Hz and 61Hz., they are suitable for use in distribution installation, electrical power station , they are applied for installation, outdoors, underground where subject to mechanical damage.

    Standard

    AS/NZS 1429.1

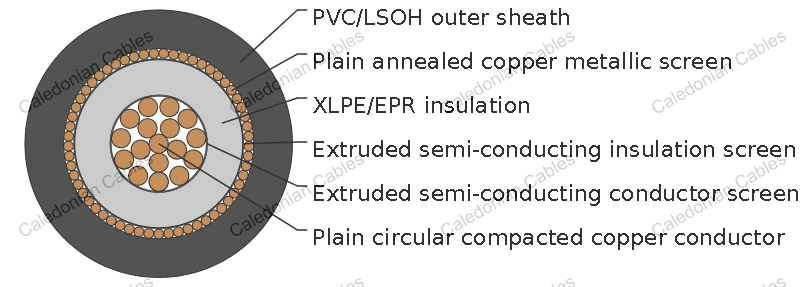

    Cable Construction

    • CONDUCTOR: Plain circular compacted copper to AS/NZS1125 Maximum Continuous Operating Temperature: 90°C
    • CONDUCTOR SCREEN: Extruded semi-conducting compound, bonded to the insulation and applied in the same operation as the insulation
    • INSULATION: Cross Linked Polyethylene (XLPE) – standard Ethylene Propylene Rubber (EPR) – alternative
    • INSULATION SCREEN: Extruded semi-conducting compound
    • METALLIC SCREEN: Plain annealed copper wire: 3kA for nominal 1 second(LIGHT DUTY) Plain annealed copper wire: 10kA for nominal 1 second(HEAVY DUTY)
    • SHEATH: Black 5V-90 polyvinyl chloride (PVC) – standard
    • Orange 5V-90 PVC inner plus black high density polyethylene (HDPE) outer – alternative Low smoke zero halogen (LSOH) – alternative

    Technical Characteristics

    LIGHT DUTY

    NOMINAL COND UCTOR AREA MAXIMUM COND UCTOR COND. AC RESISTANCE AT 50HZ AND 90°C INDUCTIVEREACTANCE AT 50HZ AND 90°C INSUL ATION RESIST ANCE AT 20°C CONDUCTOR TO SCREEN CAPACI TANCE MAXIMUM DIAELECTRIC STRESS CURRENTRATINGS
    DC RESISTANCE AT 20°C TREFOIL OR FLAT TOUC HING FLAT SPACED TREFOIL TOUC HING FLAT TOUC HING FLAT SPACED UNENC LOSED? IN AIR BURIED DIRECT BURIED IN DUCTS (C)
    MM2 OHM/KM OHM/KM OHM/KM OHM/KM OHM/KM OHM/KM MEG OHM. KM ΜF X KM KV X MM A A A
    16 1.15 1.47 1.47 0.161 0.176 0.222 14000 0.177 2.77 125 120 101
    25 0.727 0.927 0.927 0.152 0.167 0.213 12000 0.198 2.65 163 154 129
    35 0.524 0.668 0.668 0.147 0.163 0.208 11000 0.219 2.55 197 183 153
    50 0.387 0.494 0.494 0.14 0.155 0.201 10000 0.242 2.46 237 216 181
    70 0.268 0.342 0.342 0.135 0.15 0.196 8800 0.275 2.37 294 263 221
    95 0.193 0.247 0.247 0.122 0.138 0.183 7700 0.314 2.3 359 313 264
    120 0.153 0.196 0.195 0.117 0.133 0.178 7000 0.346 2.25 413 355 305
    150 0.124 0.16 0.159 0.114 0.129 0.175 6400 0.374 2.21 470 397 341
    185 0.0991 0.128 0.127 0.111 0.126 0.172 5900 0.407 2.17 539 447 384
    240 0.0754 0.098 0.0973 0.106 0.122 0.167 5300 0.456 2.13 637 516 443
    300 0.0601 0.0791 0.0781 0.104 0.119 0.165 4800 0.503 2.1 730 579 509
    400 0.047 0.0631 0.0618 0.0988 0.115 0.161 4300 0.561 2.07 848 655 575
    500 0.0366 0.0508 0.0489 0.097 0.112 0.158 3900 0.62 2.05 978 737 647
    630 0.0283 0.0412 0.0389 0.0953 0.111 0.156 3500 0.694 2.02 1122 823 722

    Cable Parameter

    LIGHT DUTY

    SECTIONAL AREA OF CONDUCTOR NOM. CONDUCTOR DIAMETER NOM. INSULATION THICKNESS NOM. DIAMETE OVER INSULATION SCREEN AREA ON EACH CORE NO. AND DIAMTER OF SCREENED WIRES NOM. DIAMETE OVER SCREENED WIRES NOM. OVERALL DIAMETER APPROX. MASS
    MM2 MM MM MM MM2 NO X MM MM MM KG/100M
    16 4.8 3.4 12.8 16 28 x 0.85 14.1 20.3 58
    25 5.8 3.4 13.8 20 36 x 0.85 15.3 21.5 73
    35 6.8 3.4 14.8 20 36 x 0.85 16.3 22.5 84
    50 8 3.4 16 20 36 x 0.85 17.6 23.8 98
    70 9.6 3.4 17.6 20 36 x 0.85 19.0 25.2 121
    95 11.5 3.4 19.4 20 36 x 0.85 20.7 26.9 148
    120 13.1 3.4 21 20 36 x 0.85 22.1 28.3 174
    150 14.5 3.4 22.4 20 36 x 0.85 23.5 29.7 202
    185 16.1 3.4 24.1 20 36 x 0.85 25.3 31.5 240
    240 18.5 3.4 26.5 20 36 x 0.85 27.6 33.8 298
    300 20.7 3.4 28.9 20 36 x 0.85 29.8 36.2 360
    400 23.6 3.4 31.8 20 36 x 0.85 33.2 39.8 449
    500 26.5 3.4 34.7 20 36 x 0.85 36.5 43.3 550
    630 29.9 3.4 38.4 20 36 x 0.85 40.1 47.1 690

    Technical Characteristics

    HEAVY DUTY

    NOMINAL COND UCTOR AREA MAXI MUM COND UCTOR COND. AC RESISTANCE AT 50HZ AND 90°C INDUCTIVE REACTANCE AT 50HZ AND 90°C INSULATION RESISTANCE AT 20°C CONDUCTOR TO SCREEN CAPACI TANCE MAXIMUM DIAELECTRIC STRESS CURRENT RATINGS
    DC RESIST ANCE AT 20°C TREFOIL OR FLAT TOUC HING FLAT SPACED TREFOIL TOUCH ING FLAT TOUCH ING FLAT SPACED UNENCL OSED IN AIR BURIED DIRECT BURIED IN DUCTS (C)
    MM2 OHM/KM OHM/KM OHM/KM OHM /KM OHM /KM OHM /KM MEGOHM. KM ΜF X KM KV X MM A A A
    16 1.15 1.47 1.47 0.161 0.176 0.222 14000 0.177 2.77 125 120 101
    25 0.727 0.927 0.927 0.152 0.167 0.213 12000 0.198 2.65 164 154 129
    35 0.524 0.668 0.668 0.147 0.163 0.208 11000 0.219 2.55 200 184 154
    50 0.387 0.494 0.494 0.14 0.155 0.201 10000 0.242 2.46 242 217 183
    70 0.268 0.342 0.342 0.135 0.15 0.196 8800 0.275 2.37 298 262 221
    95 0.193 0.247 0.247 0.122 0.138 0.183 7700 0.314 2.3 362 311 267
    120 0.153 0.196 0.195 0.117 0.133 0.178 7000 0.346 2.25 413 351 301
    150 0.124 0.16 0.159 0.114 0.129 0.175 6400 0.374 2.21 467 391 336
    185 0.0991 0.128 0.127 0.111 0.126 0.172 5900 0.407 2.17 535 439 377
    240 0.0754 0.098 0.0973 0.106 0.122 0.167 5300 0.456 2.13 627 503 432
    300 0.0601 0.0791 0.0781 0.104 0.119 0.165 4800 0.503 2.1 715 561 493
    400 0.047 0.0631 0.0618 0.0988 0.115 0.161 4300 0.561 2.07 824 630 553
    500 0.0366 0.0508 0.0489 0.097 0.112 0.158 3900 0.62 2.05 943 702 616
    630 0.0283 0.0412 0.0389 0.0953 0.111 0.156 3500 0.694 2.02 1072 777 681

    Cable Parameter

    HEAVY DUTY

    SECTIONAL AREA OF CONDUCTOR NOM. CONDUCTOR DIAMETER NOM. INSULATION THICKNESS NOM. DIAMETE OVER INSULATION SCREEN AREA ON EACH CORE NO. AND DIAMTER OF SCREENED WIRES NOM. DIAMETE OVER SCREENED WIRES NOM. OVERALL DIAMETER APPROX. MASS
    MM2 MM MM MM MM2 NO X MM MM MM KG/100M
    16 4.8 3.4 12.8 15.9 28 x 0.85 16.1 20.3 59
    25 5.8 3.4 13.8 24.4 43 x 0.85 17.1 21.2 78
    35 6.8 3.4 14.8 34.4 24 x 1.35 19.1 23.2 99
    50 8 3.4 16 48.7 34 x 1.35 20.3 24.4 125
    70 9.6 3.4 17.6 68 30 x 1.70 22.6 26.9 165
    95 11.5 3.4 19.4 69 48 x 1.35 23.7 27.9 195
    120 13.1 3.4 21 69 48 x 1.35 25.3 29.4 225
    150 14.5 3.4 22.4 69 48 x 1.35 26.7 31.1 255
    185 16.1 3.4 24.1 69 48 x 1.35 28.4 32.7 285
    240 18.5 3.4 26.5 69 48 x 1.35 30.8 35.3 345
    300 20.7 3.4 28.9 69 48 x 1.35 33.2 37.9 410
    400 23.6 3.4 31.8 69 48 x 1.35 36.3 41.2 505
    500 26.5 3.4 34.7 69 48 x 1.35 39.2 44.3 605
    630 29.9 3.4 38.4 69 48 x 1.35 42.9 48.7 730
    800 35.9 3.4 44.5 69 48 x 1.35 49 55 925
