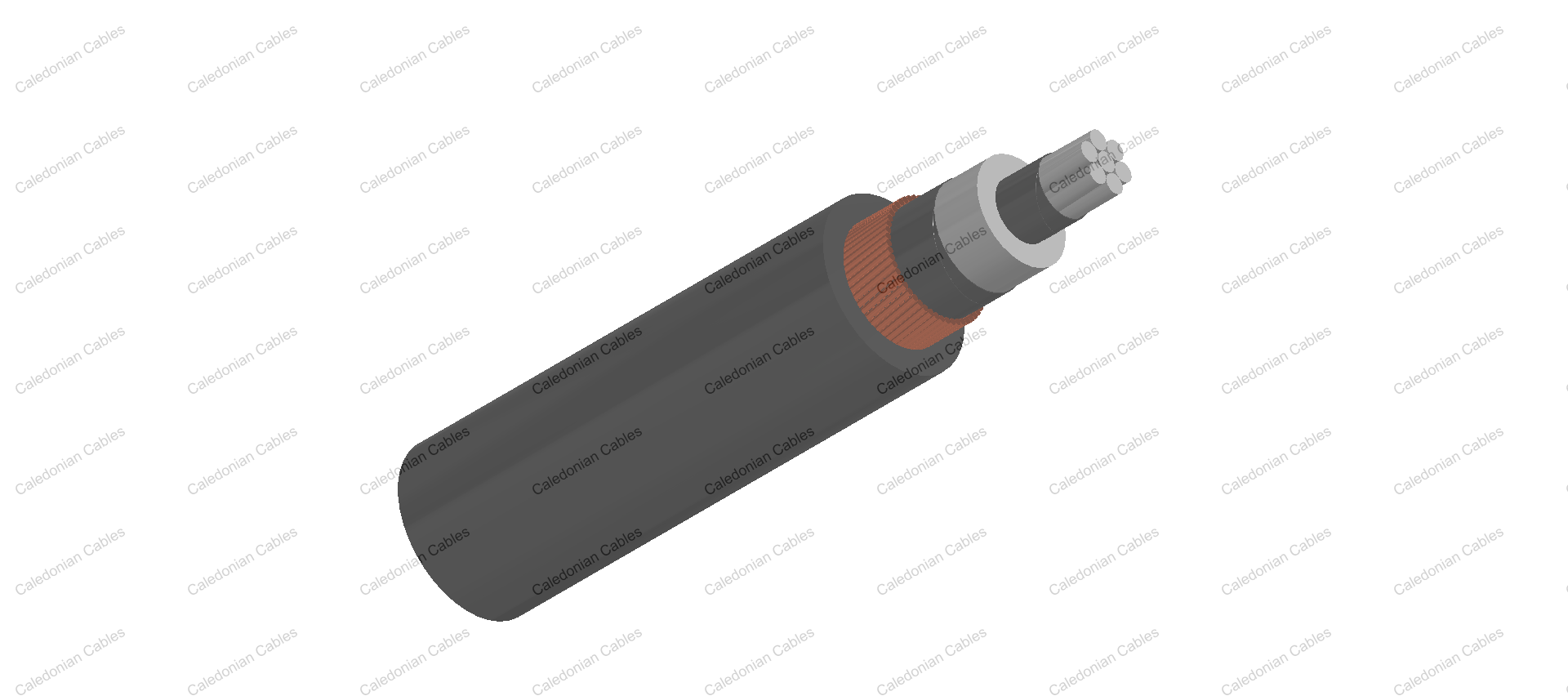

    6.35/11kV Single Core Screened & PVC Sheathed (Al Conductor)

    • 6.35/11kV Single Core Screened & PVC Sheathed (Al Conductor)
    • 6.35/11kV Single Core Screened & PVC Sheathed (Al Conductor)

    Application

    These cables are designed to be used for the supply of electrical energy in fixed applications up to the rated voltages at a nominal power frequency between 49Hz and 61Hz., they are suitable for use in distribution installation, electrical power station , they are applied for installation, outdoors, underground where subject to mechanical damage.

    Standard

    AS/NZS 1429.1

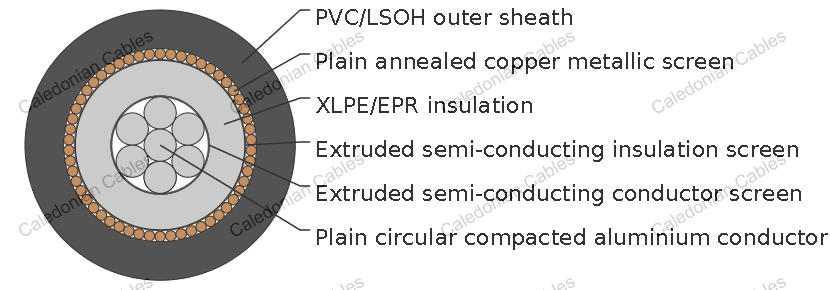

    Cable Construction

    • CONDUCTOR: Plain circular compacted aluminium to AS/NZS1125 Maximum Continuous Operating Temperature: 90°C
    • CONDUCTOR SCREEN: Extruded semi-conducting compound, bonded to the insulation and applied in the same operation as the insulation
    • INSULATION: Cross Linked Polyethylene (XLPE) – standard Ethylene Propylene Rubber (EPR) – alternative
    • INSULATION SCREEN: Extruded semi-conducting compound
    • METALLIC SCREEN: Plain annealed copper wire: 3kA for nominal 1 second(LIGHT DUTY) Plain annealed copper wire: 10kA for nominal 1 second(HEAVY DUTY)
    • SHEATH: Black 5V-90 polyvinyl chloride (PVC) – standard
    • Orange 5V-90 PVC inner plus black high density polyethylene (HDPE) outer – alternative Low smoke zero halogen (LSOH) – alternative

    Technical Characteristics

    LIGHT DUTY

    NOMINAL COND UCTOR AREA MAXIMUM COND UCTOR DC RESIST ANCE AT 20°C COND. AC RESISTANCE AT 50HZ AND 90°C INDUCTIVE REACTANCE AT 50HZ AND 90°C INSULATION RESISTANCE AT 20°C CONDUCTOR TO SCREEN CAPAC ITANCE MAXIMUM DIAELECTRIC STRESS ? CURRENT RATINGS
    TREFOIL OR FLAT TOUC HING FLAT SPACED TREFOIL TOUC HING FLAT TOUCH ING FLAT SPACED UNEN CLOSED IN AIR BURIED DIRECT BURIED IN DUCTS (C)
    MM2 OHM/KM OHM/KM OHM/KM OHM/KM OHM/KM OHM /KM MEGOHM. KM ΜF X KM KV X MM A A A
    35 0.868 1.11 1.11 0.144 0.159 0.205 11000 0.22 2.54 153 142 119
    50 0.641 0.821 0.821 0.14 0.155 0.201 9900 0.243 2.46 184 167 140
    70 0.443 0.568 0.568 0.129 0.145 0.19 8700 0.276 2.37 229 204 172
    95 0.32 0.41 0.41 0.123 0.138 0.184 7800 0.311 2.3 279 243 205
    120 0.253 0.325 0.325 0.118 0.134 0.179 7100 0.339 2.25 322 276 237
    150 0.206 0.265 0.264 0.115 0.13 0.176 6600 0.368 2.22 365 309 265
    185 0.164 0.211 0.211 0.112 0.127 0.172 6100 0.398 2.18 421 349 300
    240 0.125 0.161 0.161 0.107 0.123 0.168 5400 0.445 2.14 499 404 347
    300 0.1 0.13 0.129 0.105 0.12 0.166 4900 0.491 2.11 572 455 399
    400 0.0778 0.102 0.101 0.101 0.116 0.162 4400 0.548 2.08 669 519 456
    500 0.0605 0.0803 0.079 0.097 0.112 0.158 3900 0.62 2.05 779 590 518
    630 0.0469 0.0636 0.062 0.095 0.11 0.156 3500 0.695 2.02 907 669 587
    800 0.0367 0.0516 0.0494 0.092 0.107 0.153 3100 0.782 2 1050 752 687

    Cable Parameter

    LIGHT DUTY

    SECTIONAL AREA OF CONDUCTOR NOM. CONDUCTOR DIAMETER NOM. INSULATION THICKNESS NOM. DIAMETE OVER INSULATION SCREEN AREA ON EACH CORE NO. AND DIAMTER OF SCREENED WIRES NOM. DIAMETE OVER SCREENED WIRES NOM. OVERALL DIAMETER APPROX. MASS
    MM2 MM MM MM MM2 NO X MM MM MM KG/100M
    35 6.9 3.4 14.9 20 36 x 0.85 16.3 22.5 62
    50 8.1 3.4 16 20 36 x 0.85 17.5 23.7 68
    70 9.6 3.4 17.6 20 36 x 0.85 19.0 25.2 78
    95 11.4 3.4 19.3 20 36 x 0.85 20.7 26.9 89
    120 12.8 3.4 20.7 20 36 x 0.85 22.1 28.3 99
    150 14.2 3.4 22.1 20 36 x 0.85 23.5 29.7 109
    185 15.7 3.4 23.6 20 36 x 0.85 25.2 31.4 123
    240 18 3.4 25.9 20 36 x 0.85 27.6 33.8 145
    300 20.1 3.4 28.3 20 36 x 0.85 29.6 36.0 168
    400 23 3.4 31.1 20 36 x 0.85 32.7 39.3 202
    500 26.5 3.4 34.7 20 36 x 0.85 35.8 42.6 239
    630 29.9 3.4 38.4 20 36 x 0.85 39.4 46.4 289
    800 34.2 3.4 42.8 20 36 x 0.85 44.0 51.3 351

    Technical Characteristics

    HEAVY DUTY

    NOMINAL COND UCTOR AREA MAXIMUM CONDUCTOR DC RESIST ANCE AT 20°C COND. AC RESISTANCE AT 50HZ AND 90°C INDUCTIVE REACTANCE AT 50HZ AND 90°C INSULATION RESISTANCE AT 20°C CONDUCTOR TO SCREEN CAPAC ITANCE ? MAXIMUM DIAELECTRIC STRESS ? CURRENT RATINGS
    TREFOIL OR FLAT TOUCH ING FLAT SPACED TREFOIL TOUC HING FLAT TOUCH ING FLAT SPACED UNENC LOSED IN AIR BURIED DIRECT BURIED IN DUCTS (C)
    MM2 OHM/KM OHM/KM OHM/KM OHM/KM OHM /KM OHM /KM MEGOHM. KM ΜF X KM KV X MM A A A
    35 0.868 1.11 1.11 0.144 0.159 0.205 11000 0.22 2.54 153 142 119
    50 0.641 0.821 0.821 0.14 0.155 0.201 9900 0.243 2.46 185 168 141
    70 0.443 0.568 0.568 0.129 0.145 0.19 8700 0.276 2.37 229 204 172
    95 0.32 0.41 0.41 0.123 0.138 0.184 7800 0.311 2.3 281 243 205
    120 0.253 0.325 0.325 0.118 0.134 0.179 7100 0.339 2.25 323 275 236
    150 0.206 0.265 0.264 0.115 0.13 0.176 6600 0.368 2.22 366 307 263
    185 0.164 0.211 0.211 0.112 0.127 0.172 6100 0.398 2.18 420 346 297
    240 0.125 0.161 0.161 0.107 0.123 0.168 5400 0.445 2.14 496 399 342
    300 0.1 0.13 0.129 0.105 0.12 0.166 4900 0.491 2.11 567 447 392
    400 0.0778 0.102 0.101 0.101 0.116 0.162 4400 0.548 2.08 659 507 445
    500 0.0605 0.0803 0.079 0.097 0.112 0.158 3900 0.62 2.05 763 572 502
    630 0.0469 0.0636 0.062 0.095 0.11 0.156 3500 0.695 2.02 881 644 565
    800 0.0367 0.0516 0.0494 0.092 0.107 0.153 3100 0.782 2 1013 718 656

    Cable Parameter

    HEAVY DUTY

    SECTIONAL AREA OF CONDUCTOR NOM. CONDUCTOR DIAMETER NOM. INSULATION THICKNESS NOM. DIAMETE OVER INSULATION SCREEN AREA ON EACH CORE NO. AND DIAMTER OF SCREENED WIRES NOM. DIAMETE OVER SCREENED WIRES ? NOM. OVERALL DIAMETER ? APPROX. MASS
    MM2 MM MM MM MM2 NO X MM MM MM KG/100M
    35 6.9 3.4 14.9 23 40 x 0.85 18.2 22.3 66
    50 8.1 3.4 16 33 23 x 1.35 20.3 24.4 82
    70 9.6 3.4 17.6 46 32 x 1.35 21.9 26 105
    95 11.4 3.4 19.3 62 43 x 1.35 23.6 27.7 130
    120 12.8 3.4 20.7 69 48 x 1.35 25 29.1 145
    150 14.2 3.4 22.1 69 48 x 1.35 26.4 30.7 155
    185 15.7 3.4 23.6 69 48 x 1.35 27.9 32.2 170
    240 18 3.4 25.9 69 48 x 1.35 30.2 34.7 190
    300 20.1 3.4 28.3 69 48 x 1.35 32.6 37.3 215
    400 23 3.4 31.1 69 48 x 1.35 35.6 40.5 250
    500 26.5 3.4 34.7 69 48 x 1.35 39.2 44.3 295
    630 29.9 3.4 38.4 69 48 x 1.35 42.9 48.4 345
    800 34.2 3.4 42.8 69 48 x 1.35 47.3 53 405
