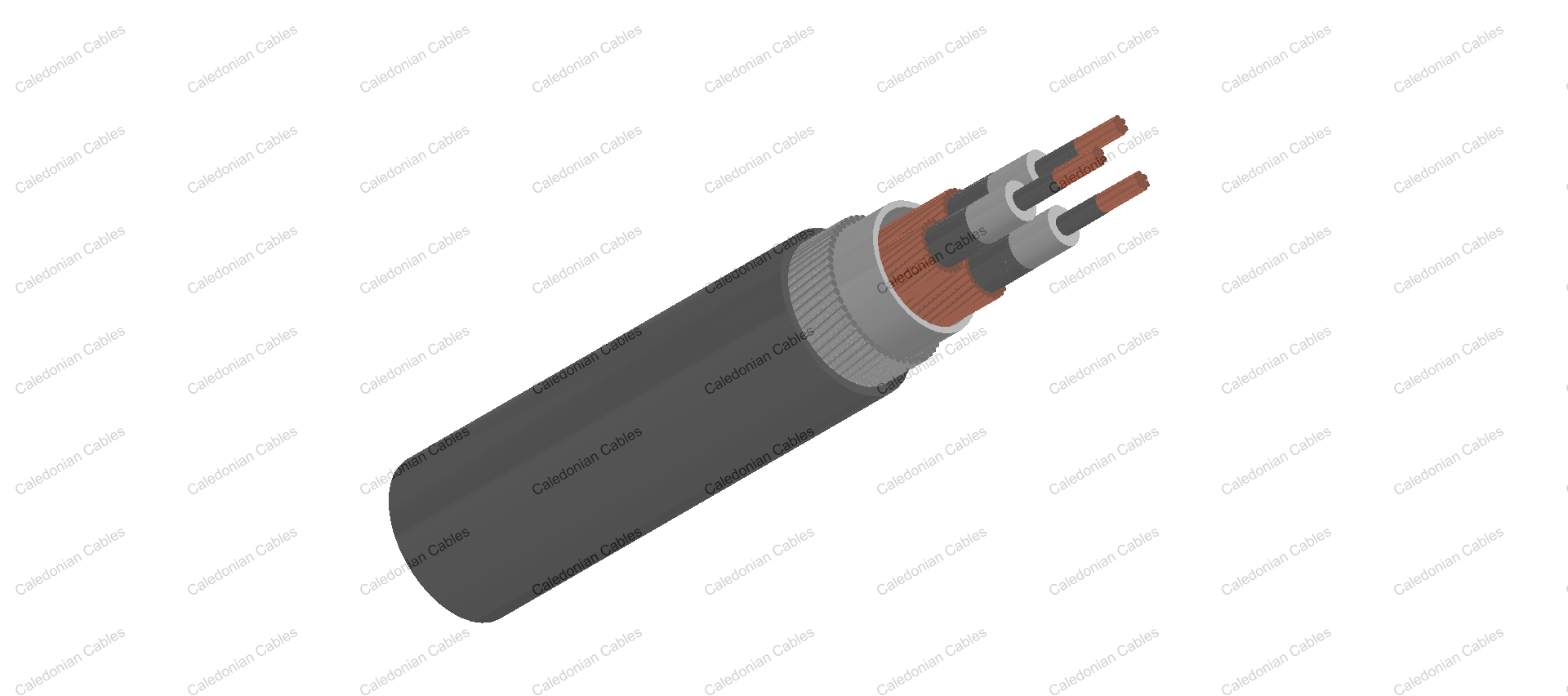

3.8/6.6kV Three Core Individual Screened & PVC/SWA/PVC Sheathed (Cu Conductor)

Application

These cables are designed to be used for the supply of electrical energy in fixed applications up to the rated voltages at a nominal power frequency between 49Hz and 61Hz., they are suitable for use in distribution installation, electrical power station , they are applied for installation, outdoors, underground where subject to mechanical damage.

Standard

AS/NZS 1429.1

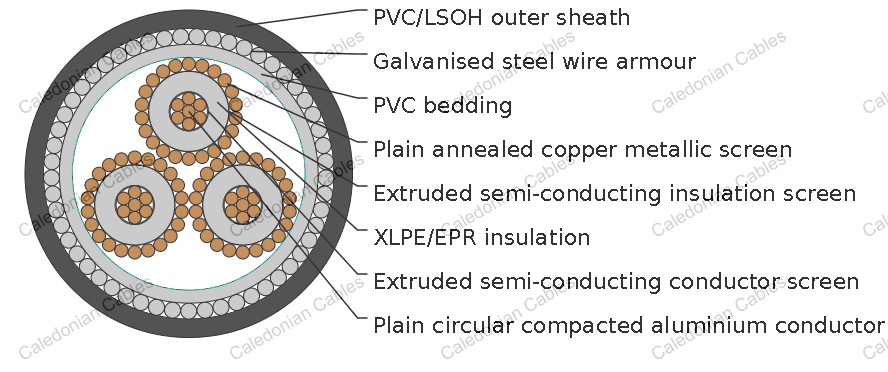

Cable Construction

CONDUCTOR: Plain circular compacted copper to AS/NZS1125 Maximum Continuous Operating Temperature: 90°C
CONDUCTOR SCREEN: Extruded semi-conducting compound, bonded to the insulation and applied in the same operation as the insulation
INSULATION: Cross Linked Polyethylene (XLPE) – standard Ethylene Propylene Rubber (EPR) – alternative
INSULATION SCREEN: Extruded semi-conducting compound
METALLIC SCREEN: Plain annealed copper wire: 10kA for nominal 1 second(HEAVY DUTY)
BEDDING: PVC
ARMOURING: Galvanised steel wires
SHEATH: Black 5V-90 polyvinyl chloride (PVC) – standard
Orange 5V-90 PVC inner plus black high density polyethylene (HDPE) outer – alternative Low smoke zero halogen (LSOH) – alternative

Technical Characteristics

NOMINAL COND UCTOR AREA	MAXIMUM CONDUCTOR DC RESISTANCE AT 20°C	COND. AC RESISTANCE AT 50HZ AND 90°C	INDUCTIVE REACTANCE AT 50HZ	INSUL ATION RESIS TANCE AT 20°C	CONDUCTOR TO SCREEN CAPACI TANCE	CHARGING CURRENT PER PHASE	DIEL ECTRIC LOSS PER PHRASE	MAXIMUM DIAELECTRIC STRESS	SCREEN DC RESIST ANCE AT 20°C	ARMOUR DC RESISTA NCE AT 20°C	ZERO SEQUE NCE RESIST ANCE AT 20°C	ZERO SEQ. REACT. AT 50HZ
MM2	OHM /KM	OHM /KM	OHM /KM	MEGOHM. KM	ΜF X? KM	A X KM	W X KM	KV X MM	OHM /KM	OHM /KM	OHM/KM	OHM/KM
16	1.15	1.47	0.134	11000	0.221	0.263	4	2.06	1.06	0.857	2.58	0.0842
25	0.727	0.927	0.127	9700	0.248	0.296	4.5	1.99	0.706	0.811	1.86	0.077
35	0.524	0.668	0.12	8700	0.276	0.33	5.01	1.93	0.533	0.657	1.41	0.0712
50	0.387	0.494	0.115	7800	0.308	0.368	5.59	1.87	0.366	0.616	1.08	0.066
70	0.268	0.342	0.109	6900	0.352	0.42	6.39	1.82	0.265	0.559	0.807	0.0603
95	0.193	0.247	0.101	6000	0.404	0.482	7.33	1.77	0.265	0.521	0.721	0.0525
120	0.153	0.196	0.0969	5400	0.447	0.534	8.11	1.74	0.266	0.487	0.669	0.0491
150	0.124	0.16	0.0942	5000	0.486	0.58	8.81	1.72	0.265	0.458	0.629	0.0467
185	0.0991	0.128	0.0917	4600	0.53	0.632	9.61	1.69	0.265	0.431	0.593	0.0443
240	0.0754	0.0986	0.089	4200	0.576	0.687	10.4	1.61	0.266	0.307	0.504	0.0418
300	0.0601	0.0798	0.0879	4000	0.597	0.713	10.8	1.49	0.265	0.284	0.473	0.0409
400	0.047	0.064	0.0852	3800	0.627	0.749	11.4	1.38	0.265	0.257	0.44	0.0384

Cable Parameter

SECTIONAL AREA OF CONDUCTOR	NOM. CONDUCTOR DIAMETER	NOM. INSULATION THICKNESS	NOM. DIAMETE OVER INSULATION	SCREEN AREA ON CORES	NO. AND DIAMTER OF SCREENED WIRES	NOM. DIAMETE OVER SCREENED WIRES	NOM. DIAMETE OVER BEDDING	NOM. DIAMETE OF ARMOUR	NOM. DIAMETE OVER ARMOUR	NOM. OVERALL DIAMETER	? APPROX. MASS
MM2	MM	MM	MM	MM2	NO X MM	MM	MM	MM	MM	MM	KG/100M
16	4.8	2.5	11	17	10 x 0.85	14.3	34	2	38	42.6	295
25	5.8	2.5	12	25.5	15 x 0.85	15.3	36.1	2	40.1	44.9	345
35	6.8	2.5	13	34	20 x 0.85	16.3	38.5	2.5	43.5	48.7	440
50	8	2.5	14.1	49.4	29 x 0.85	17.4	41	2.5	46	51.4	515
70	9.6	2.5	15.7	68.1	40 x 0.85	19	44.6	2.5	49.6	55.2	630
95	11.5	2.5	17.6	68.1	40 x 0.85	20.9	48.9	2.5	53.9	59.7	745
120	13.1	2.5	19.2	68.1	40 x 0.85	22.5	52.3	2.5	57.3	63.3	850
150	14.5	2.5	20.6	68.1	40 x 0.85	23.9	55.7	2.5	60.7	66.9	960
185	16.1	2.5	22.2	68.1	40 x 0.85	25.5	59.4	2.5	64.4	70.8	1090
240	18.5	2.6	24.9	68.1	40 x 0.85	28.2	65.3	3.15	71.6	78.6	1410
300	20.7	2.8	27.6	68.1	40 x 0.85	30.9	71.4	3.15	77.7	85.2	1660
400	23.6	3	30.9	68.1	40 x 0.85	34.2	78.8	3.15	85.1	92.9	2030
