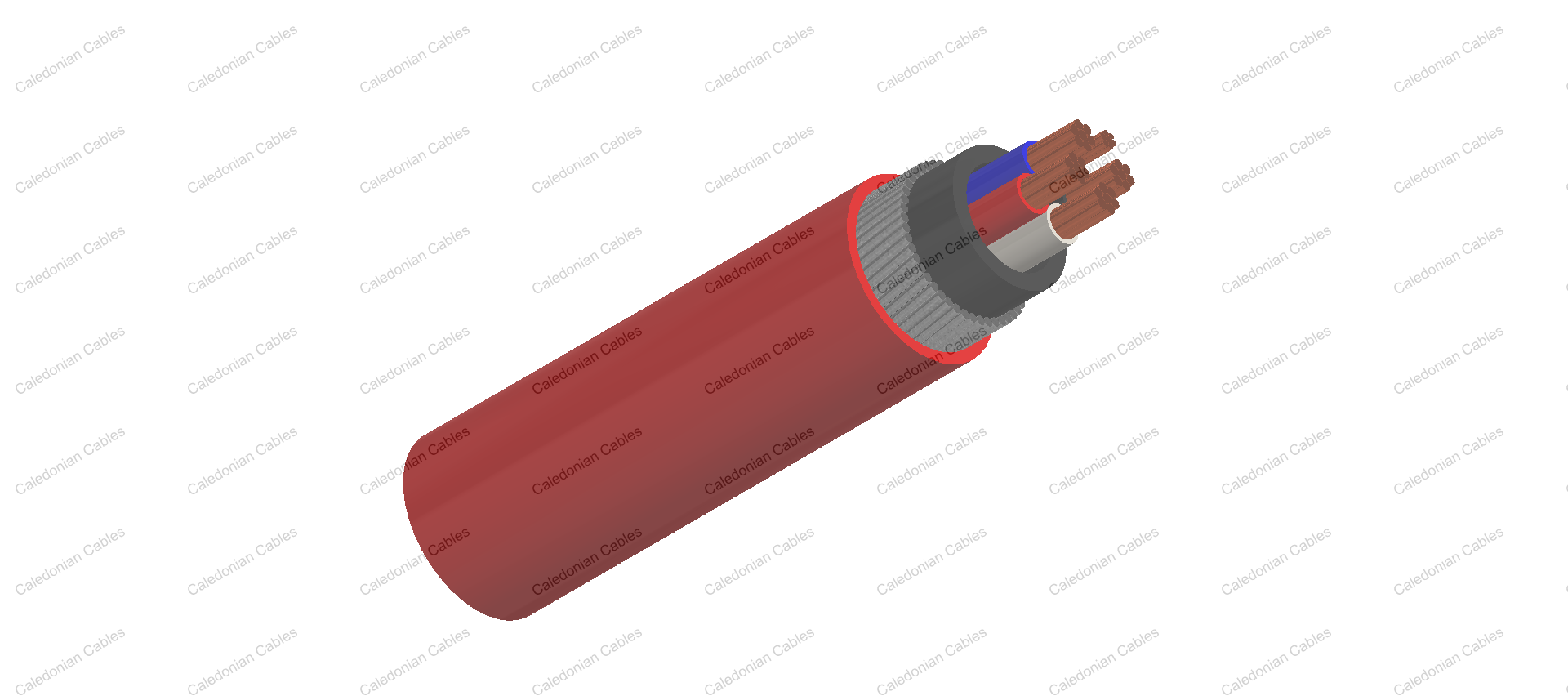

    XLPE Insulated, PVC Sheathed 4 core+E Armored Cables 0.6/1kV

    • XLPE Insulated, PVC Sheathed 4 core+E Armored Cables 0.6/1kV
    • XLPE Insulated, PVC Sheathed 4 core+E Armored Cables 0.6/1kV

    Application

    These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

    Standard

    • AS/NZS 5000.1
    • AS/NZS 3008
    • AS/NZS 1125

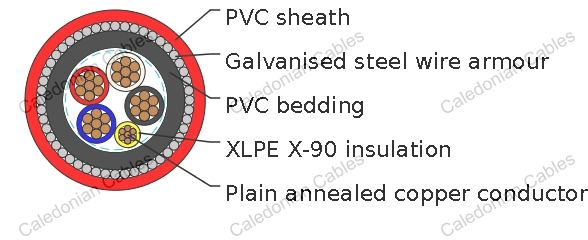

    Construction

    Conductor Plain annealed copper.
    Insulation XLPE X-90.
    Insulation colour: 4C + E - Red, White, Blue, black, Green/yellow
    Bedding: Polyvinylchloride compound PVC 5V-90
    Bedding colour: Black
    Armour: Galvanised Steel Wire
    Sheath: Polyvinylchloride compound PVC 5V-90
    Sheath colour: Orange, other colors are available upon request

    Technical Characteristics

    Conductor Current Ratings Electrical Characteristics
    Nominal Area
    mm^2    		 Unenclosed In Air
    A    		 Buried Direct A Buried In Ducts
    A    		 Maximum DC Resistance @20°C
    Ohm/km    		 Maximum AC Resistance @90°C
    Ohm/km    		 Reactance
    Ohm/km    		 Three Phase Voltage Drop @90°C
    mV/Am
    16 83 110 83 1.15 1.47 0.0805 2.55
    25 110 145 110 0.727 0.927 0.0808 1.61
    35 135 170 135 0.524 0.669 0.0786 1.17
    50 170 205 160 0.387 0.494 0.0751 0.868
    70 215 250 200 0.268 0.343 0.0741 0.609
    95 265 300 240 0.193 0.248 0.0725 0.450
    120 305 345 275 0.153 0.197 0.0713 0.366
    150 350 385 310 0.124 0.160 0.0718 0.307
    185 405 435 355 0.0991 0.129 0.0720 0.259
    240 480 500 420 0.0754 0.0998 0.0709 0.216

    Cable Parameter

    Nom. conductor area
    mm^2    		 Conductor No./ OD Nom. insulation thickness mm Nom. earth conductor area
    mm^2    		 Nom. earth
    conductor insulation thickness mm    		 Nom. diameter over bedding mm Armour diameter mm Nom. overall diameter mm Approx. mass kg/km
    16 7/1.70 0.7 6 0.7 19.4 1.6 26.3 1725
    25 7/2.14 0.9 6 0.7 22.7 1.6 29.6 2335
    35 7/2.65 0.9 10 0.7 24.4 1.6 31.5 2605
    50 19/1.89 1.0 16 0.7 27.8 2.0 36.5 3860
    70 19/2.24 1.1 25 0.9 33.4 2.0 41.8 5135
    95 19/2.65 1.1 25 0.9 36.9 2.5 45.8 5900
    120 19/2.94 1.2 35 0.9 38.1 2.5 51.7 9090
    150 19/3.28 1.4 50 1.0 42.2 2.5 56.9 10410
    185 37/2.65 1.6 70 1.1 52.2 2.5 63.1 11600
    240 37/2.94 1.7 95 1.1 58.8 2.5 70.1 14700
