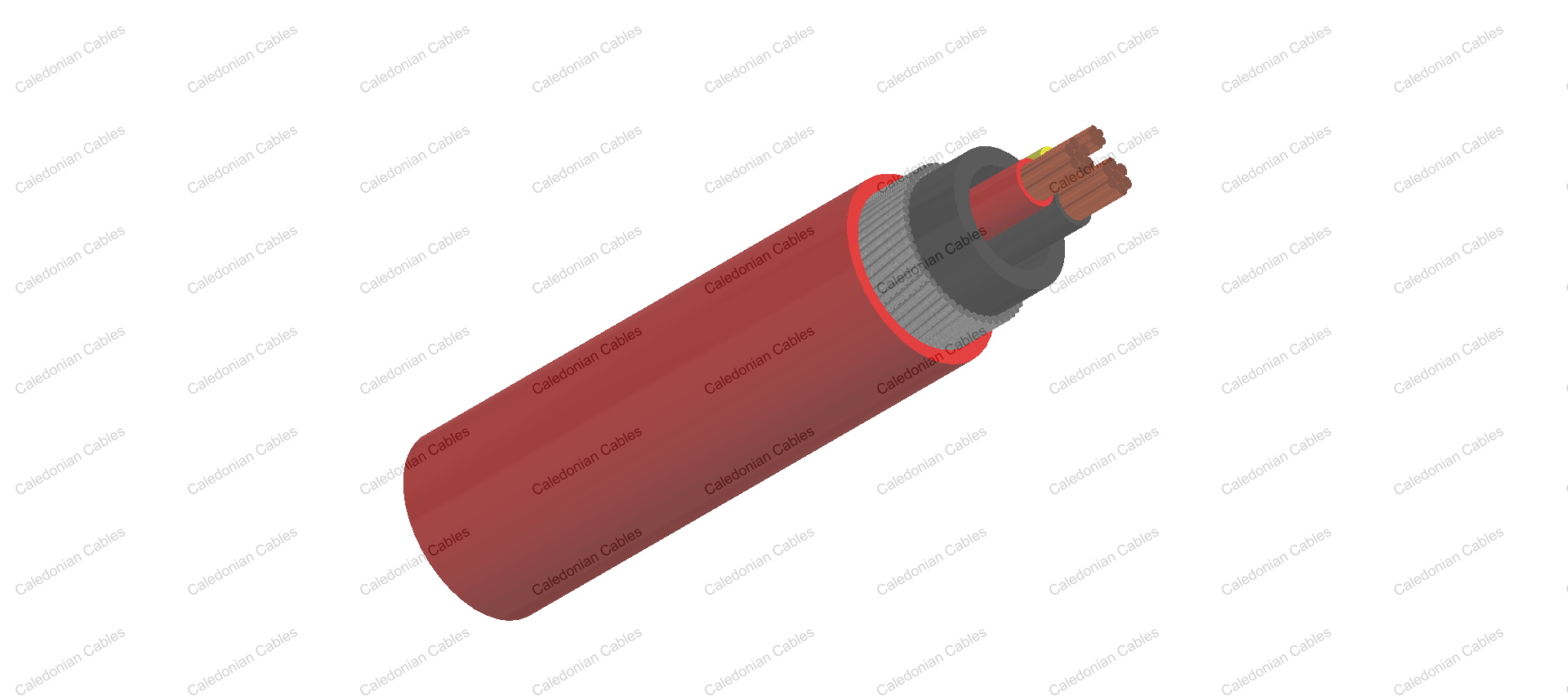

    XLPE Insulated, PVC Sheathed 2 core+E Armored Cables, 0.6/1kV

    • XLPE Insulated, PVC Sheathed 2 core+E Armored Cables, 0.6/1kV
    • XLPE Insulated, PVC Sheathed 2 core+E Armored Cables, 0.6/1kV

    Application

    These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

    Standard

    • AS/NZS 5000.1
    • AS/NZS 3008
    • AS/NZS 1125

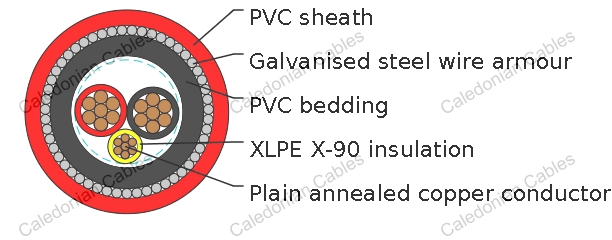

    Construction

    Conductor Plain annealed copper.
    Insulation XLPE X-90.
    Insulation colour: 2C + E - Red, Black, Green/yellow
    Bedding: Polyvinylchloride compound PVC 5V-90
    Bedding colour: Black
    Armour: Galvanised Steel Wire
    Sheath: Polyvinylchloride compound PVC 5V-90
    Sheath colour: Orange, other colors are available upon request

    Technical Characteristics

    Conductor Current Ratings Electrical Characteristics
    Nominal Area
    mm^2    		 Unenclosed In Air
    A    		 Buried Direct A Buried In Ducts
    A    		 Maximum DC Resistance @20°C
    Ohm/km    		 Maximum AC Resistance @90°C
    Ohm/km    		 Reactance
    Ohm/km    		 Single Phase Voltage Drop @90°C
    mV/Am
    16 97 130 100 1.15 1.47 0.0805 2.95
    25 130 170 130 0.727 0.927 0.0808 1.86
    35 160 205 160 0.524 0.669 0.0786 1.35
    50 195 245 190 0.387 0.494 0.0751 1.00
    70 250 300 235 0.268 0.343 0.0741 0.703
    95 310 360 285 0.193 0.248 0.0725 0.520
    120 360 410 325 0.153 0.197 0.0713 0.423

    Cable Parameter

    Nom. conductor area
    mm^2    		 Conductor No./ OD Nom. insulation thickness mm Nom. earth conductor area
    mm^2    		 Nom. earth
    conductor insulation thickness mm    		 Nom. diameter over bedding mm Armour diameter mm Nom. overall diameter mm Approx. mass kg/km
    16 7/1.70 0.7 6 0.7 15.3 1.25 21.6 1100
    25 7/2.14 0.9 6 0.7 19.2 1.25 25.8 1310
    35 7/2.65 0.9 10 0.7 21.3 1.6 26.8 1765
    50 19/1.89 1.0 16 0.7 24.1 1.6 29.7 2185
    70 19/2.24 1.1 25 0.9 28.2 1.6 33.6 2745
    95 19/2.65 1.1 25 0.9 31.7 2.0 37.7 3650
    120 19/2.94 1.2 35 0.9 35.4 2.0 41.8 4600
