    Single core XLPE Insulated, PVC Sheathed Unarmoured Cables, 0.6/1kV

    • Single core XLPE Insulated, PVC Sheathed Unarmoured Cables, 0.6/1kV
    • Single core XLPE Insulated, PVC Sheathed Unarmoured Cables, 0.6/1kV

    Application

    These cables are used for outdoor and indoor installations in damp and wet applications. They are normally used for power distribution in urban networks, industrial plants and energy distribution. For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable where space is at a premium.

    Standard

    • AS/NZS 5000.1
    • AS/NZS 3008
    • AS1125

    Construction

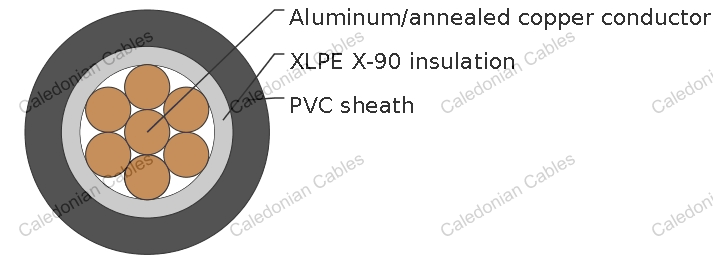

    Conductor Aluminum/plain annealed copper
    Insulation XLPE X-90
    Insulation colour: black, other colors are available upon request
    Sheath: Polyvinylchloride compound PVC 5V-90
    Sheath colour: Black, other colors are available upon request

    Technical Characteristics

    Conductor Current Ratings Electrical Characteristics
    Nominal Area mm^2 In conduit In Air
    A
    Buried In Ducts A In conduit In Air
    A
    Buried In Ducts A Maximum DC Resistance @20°C
    Ohm/km
    Maximum AC Resistance @90°C
    Ohm/km
    Reactance (trefoil) Ohm/km 3 phase Voltage Drop mV/A
    Aluminum
    16 70 74 74 86 1.91 2.45 0.106 4.25
    25 99 96 100 112 1.20 1.54 0.102 2.67
    35 116 118 121 134 0.868 1.11 0.0982 1.94
    50 138 139 149 161 0.641 0.822 0.0924 1.43
    70 176 177 193 198 0.443 0.568 0.0893 0.997
    95 215 209 237 241 0.320 0.411 0.0868 0.727
    120 253 241 281 278 0.253 0.325 0.0844 0.582
    150 286 273 319 310 0.206 0.265 0.0844 0.482
    185 330 310 374 358 0.164 0.212 0.0835 0.394
    240 396 369 440 428 0.125 0.162 0.0818 0.314
    300 457 428 - 482 0.100 0.130 0.0809 0.266
    400 534 487 - 567 0.0778 0.103 0.0802 0.226
    500 616 578 - 653 0.0605 0.0813 0.0796 0.197
    630 726 663 - 770 0.0469 0.0649 0.0787 0.177
    Copper
    16 86 95 95 112 1.15 1.47 0.106 2.550
    25 121 123 127 144 0.727 0.927 0.102 1.620
    35 138 150 160 171 0.524 0.668 0.098 1.170
    50 171 182 193 209 0.387 0.494 0.092 0.872
    70 209 225 242 257 0.268 0.342 0.089 0.615
    95 253 268 286 310 0.193 0.247 0.087 0.457
    120 297 310 341 358 0.153 0.197 0.084 0.373
    150 341 353 385 401 0.124 0.160 0.084 0.316
    185 391 401 440 465 0.099 0.129 0.084 0.269
    240 462 471 523 546 0.075 0.099 0.082 0.227
    300 534 546 - 621 0.060 0.080 0.081 0.202
    400 616 621 - 717 0.047 0.065 0.080 0.183
    500 715 717 - 813 0.037 0.053 0.080 0.170
    630 836 813 - 952 0.028 0.043 0.079 0.159

    Cable Parameter

    Nom. conductor area
    mm^2
     Main conductor type Nom. insulation thickness
    mm
    Nom. sheath thickness
    mm
    Nom. overall diameter
    mm
    Approx. mass
    kg/km
    Alumductor
    16 7/1.70 circular 0.7 1.4 9.4 100
    25 7strands compacted 0.9 1.4 11.3 160
    35 19strands compacted 0.9 1.4 12.5 210
    50 19strands compacted 1.0 1.4 13.1 260
    70 19strands compacted 1.1 1.4 15.0 330
    95 19strands compacted 1.1 1.5 17.0 420
    120 19strands compacted 1.2 1.5 18.6 510
    150 19strands compacted 1.4 1.6 20.7 640
    185 36strands compacted 1.6 1.6 22.7 780
    240 36strands compacted 1.7 1.7 25.5 990
    300 37strands compacted 1.8 1.8 28.1 1220
    400 60strands compacted 2.0 1.9 31.8 1600
    500 60strands compacted 2.2 2 35.4 2000
    630 60strands compacted 2.4 2.2 39.6 2600
    Copper Conductor
    16 7/1.70 circular 0.7 1.4 9.4 230
    25 7/2.14 circular 0.9 1.4 11.3 320
    35 19/1.53 circular 0.9 1.4 12.5 425
    50 19strands compacted 1.0 1.4 13.1 550
    70 19strands compacted 1.1 1.4 15.0 760
    95 19strands compacted 1.1 1.5 16.8 1040
    120 19strands compacted 1.2 1.5 18.6 1305
    150 19strands compacted 1.4 1.6 20.6 1585
    185 36strands compacted 1.6 1.6 22.7 1980
    240 36strands compacted 1.7 1.7 25.6 2610
    300 37strands compacted 1.8 1.8 28.4 3340
    400 60strands compacted 2.0 1.9 31.7 4245
    500 60strands compacted 2.2 2.0 35.4 5500
    630 91strands compacted 2.4 2.2 42.4 7220
