    PVC Insulated, PVC Sheathed 4 core+E Unarmored Cables, 0.6/1kV

    • PVC Insulated, PVC Sheathed 4 core+E Unarmored Cables, 0.6/1kV
    • PVC Insulated, PVC Sheathed 4 core+E Unarmored Cables, 0.6/1kV

    Application

    These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

    Standard

    • AS/NZS 5000.1
    • AS/NZS 3008
    • AS/NZS 1125

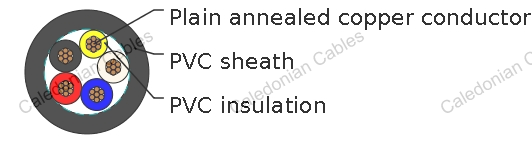

    Construction

    Conductor Plain annealed copper.
    Insulation Polyvinylchloride compound PVC V-90
    Insulation colour: 4C + E - Red, White, Blue, black, Green/yellow
    Sheath: Polyvinylchloride compound PVC 5V-90
    Sheath colour: Black, other colors are available upon request

    Technical Characteristics

    Conductor Current Ratings Electrical Characteristics
    Nominal Area
    mm^2    		 Unenclosed In Air
    A    		 Buried Direct
    A    		 Buried In Ducts
    A    		 Maximum DC Resistance @20°C
    Ohm/km    		 Maximum AC Resistance @75°C
    Ohm/km    		 Reactance
    Ohm/km    		 Three Phase Voltage Drop @75°C
    mV/Am
    1.5 15 13 19 13.6 16.5 0.111 28.6
    2.5 22 18 26 7.41 9.01 0.102 15.6
    4 29 24 34 4.61 5.61 0.102 9.71
    6 37 31 43 3.08 3.75 0.0967 6.49
    10 51 42 57 1.83 2.23 0.0906 3.86
    16 68 56 74 1.15 1.40 0.0861 2.43
    25 91 79 96 0.727 0.884 0.0853 1.54
    35 110 92 115 0.524 0.638 0.0826 1.11
    50 135 110 140 0.387 0.471 0.0797 0.829
    70 170 140 175 0.268 0.327 0.0770 0.583
    95 215 165 210 0.193 0.236 0.0766 0.431
    120 245 195 240 0.153 0.188 0.0743 0.351
    150 280 225 270 0.124 0.153 0.0745 0.296
    185 325 260 310 0.0991 0.123 0.0744 0.251
    240 385 305 370 0.0754 0.0955 0.0735 0.210

    Cable Parameter

    Nom. conductor area
    mm^2    		 Conductor
    No./ OD    		 Nom. insulation thickness
    mm    		 Nom. earth conductor area
    mm^2    		 Nom. earth conductor insulation thickness
    mm    		 Nom. overall diameter
    mm    		 Approx. mass
    kg/km
    1.5 7/0.50 0.8 1.5 0.6 12.4 225
    2.5 7/0.67 0.8 2.5 0.7 13.7 280
    4 7/0.85 1.0 2.5 0.7 15.6 400
    6 7/1.04 1.0 2.5 0.7 16.8 510
    10 7/1.35 1.0 4.0 1.0 20.3 730
    16 7/1.70 1.0 6.0 1.0 22.9 1015
    25 7/2.14 1.2 6.0 1.0 26.9 1540
    35* 7/2.65 1.2 10 1.0 27.7 1930
    50* 19/1.89 1.4 16 1.0 33.5 2470
    70* 19/2.24 1.4 25 1.2 37.0 3710
    95* 19/2.65 1.6 25 1.2 44.8 5025
    120* 19/2.94 1.6 35 1.2 48.5 5870
    150* 19/3.28 1.8 50 1.4 51.0 7150
    185* 37/2.65 2.0 70 1.4 56.7 8990
    240* 37/2.94 2.2 95 1.6 64.6 11910
