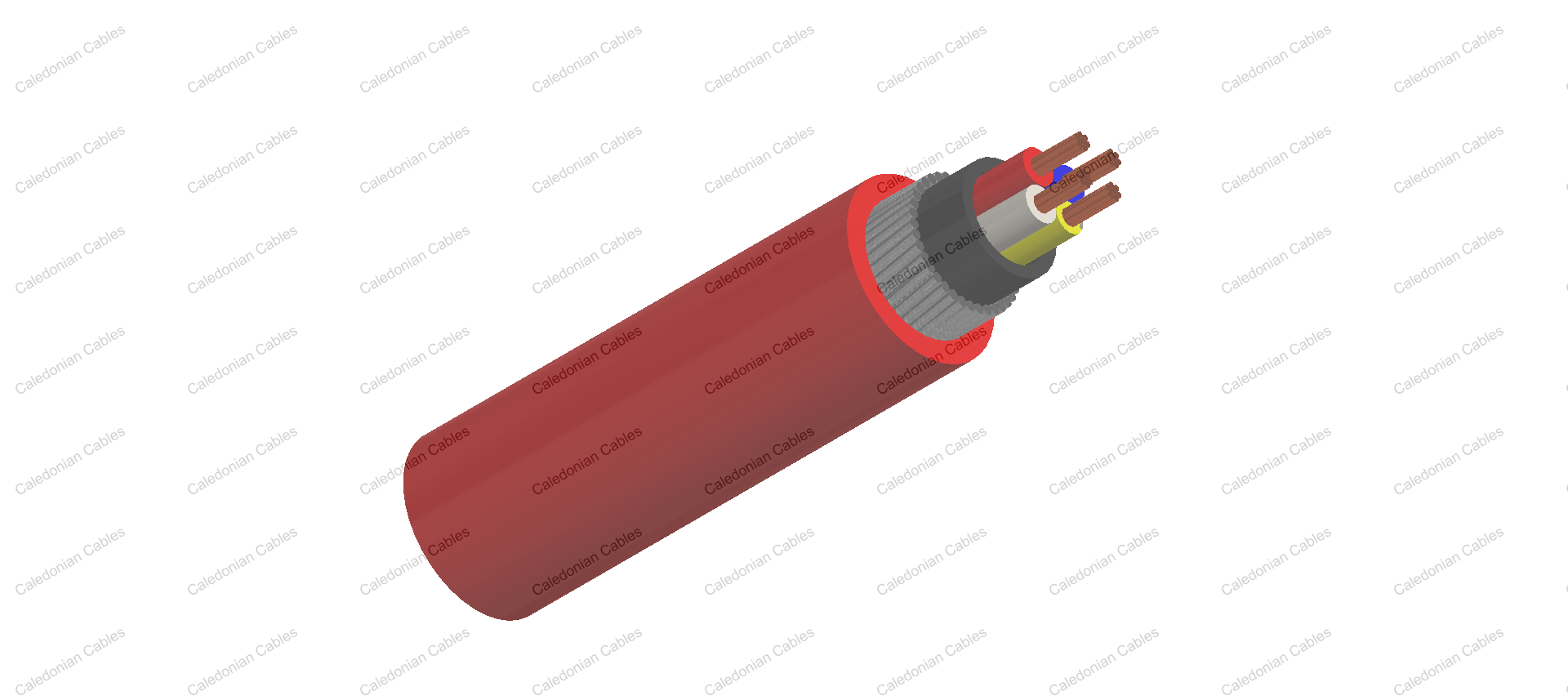

    PVC Insulated, PVC Sheathed 3 core+E Armored Cables, 0.6/1kV

    • PVC Insulated, PVC Sheathed 3 core+E Armored Cables 0.6/1kV
    • PVC Insulated, PVC Sheathed 3 core+E Armored Cables 0.6/1kV

    Application

    These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

    Standard

    • AS/NZS 5000.1
    • AS/NZS 3008
    • AS/NZS 1125

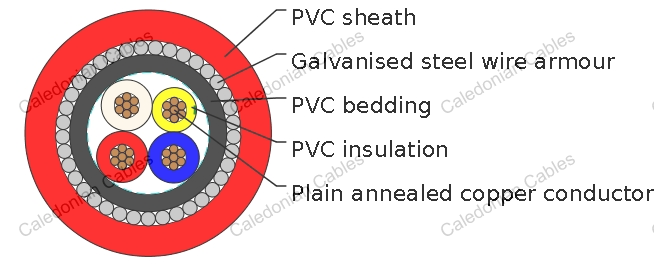

    Construction

    Conductor Plain annealed copper.
    Insulation Polyvinylchloride compound PVC V-90
    Insulation colour: 3C + E – Red, White, Blue, Green/yellow
    Bedding: Polyvinylchloride compound PVC 5V-90
    Bedding colour: Black
    Armour: Galvanised Steel Wire
    Sheath: Polyvinylchloride compound PVC 5V-90
    Sheath colour: Orange, other colors are available upon request

    Technical Characteristics

    Conductor Current Ratings Electrical Characteristics
    Nominal Area
    mm^2    		 Unenclosed In Air
    A    		 Buried Direct
    A    		 Buried In Ducts
    A    		 Maximum DC Resistance @20°C
    Ohm/km    		 Maximum AC Resistance @75°C
    Ohm/km    		 Reactance
    Ohm/km    		 Single Phase Voltage Drop @75°C
    mV/Am
    1.5 15 24 19 13.6 16.5 0.111 28.6
    2.5 22 34 26 7.41 9.01 0.102 15.6
    4 29 44 34 4.61 5.61 0.102 9.71
    6 37 55 43 3.08 3.75 0.0967 6.49
    10 51 74 57 1.83 2.23 0.0906 3.86
    16 68 96 74 1.15 1.40 0.0861 2.43
    25 91 125 96 0.727 0.884 0.0853 1.54
    35 110 150 115 0.524 0.638 0.0826 1.11
    50 135 180 140 0.387 0.471 0.0797 0.829
    70 170 220 175 0.268 0.327 0.0770 0.583
    95 215 265 210 0.193 0.236 0.0766 0.431
    120 245 300 240 0.153 0.188 0.0743 0.351
    150 280 335 270 0.124 0.153 0.0745 0.296
    185 325 380 310 0.0991 0.123 0.0744 0.251
    240 385 440 370 0.0754 0.0955 0.0735 0.210

    Cable Parameter

    Nom. conductor area
    mm^2    		 Conductor
    No./ OD    		 Nom. insulation thickness
    mm    		 Nom. earth conductor area
    mm^2    		 Nom. earth conductor insulation thickness
    mm    		 Nom. diameter over bedding
    mm    		 Armour diameter mm Nom. overall diameter
    mm    		 Approx. mass
    kg/km
    1.5 7/0.50 0.8 1.5 0.8 9.8 0.9 15.4 400
    2.5 7/0.67 0.8 2.5 0.8 10.9 0.9 16.5 545
    4 7/0.85 1.0 2.5 0.8 12.5 1.25 18.8 770
    6 7/1.04 1.0 2.5 0.8 13.7 1.25 20.0 880
    10 7/1.35 1.0 4.0 1.0 15.8 1.25 22.1 1160
    16 7/1.70 1.0 6.0 1.0 18.1 1.6 25.1 1560
    25 7/2.14 1.2 6.0 1.0 21.8 1.6 28.8 2100
    35 7/2.65 1.2 10 1.0 23.8 1.6 30.3 2480
    50 19/1.89 1.4 16 1.0 26.7 2.0 34.1 3140
    70 19/2.24 1.4 25 1.2 31.4 2.0 39.8 4455
    95 19/2.65 1.6 25 1.2 35.9 2.5 43.9 5520
    120 19/2.94 1.6 35 1.2 39.5 2.5 47.5 6790
    150 19/3.28 1.8 50 1.4 43.2 2.5 53.4 7970
    185 37/2.65 2.0 70 1.4 48.0 2.5 58.7 9660
    240 37/2.94 2.2 95 1.6 54.9 2.5 66.0 12330
