    PVC Insulated, PVC Sheathed 2 core+E Unarmored Cables, 0.6/1kV

    • PVC Insulated, PVC Sheathed 2 core+E Unarmored Cables, 0.6/1kV
    • PVC Insulated, PVC Sheathed 2 core+E Unarmored Cables, 0.6/1kV

    Application

    These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

    Standard

    • AS/NZS 5000.1
    • AS/NZS 3008
    • AS/NZS 1125

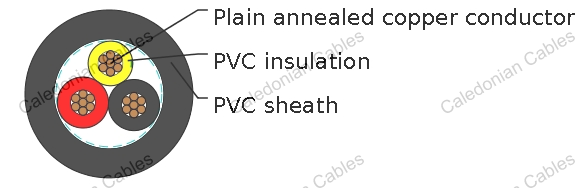

    Construction

    Conductor Plain annealed copper.
    Insulation Polyvinylchloride compound PVC V-90
    Insulation colour: 2C + E - Red, Black, Green/yellow
    Sheath: Polyvinylchloride compound PVC 5V-90
    Sheath colour: Black, other colors are available upon request

    Technical Characteristics

    Conductor Current Ratings Electrical Characteristics
    Nominal Area
    mm^2    		 Unenclosed In Air
    A    		 Buried Direct
    A    		 Buried In Ducts
    A    		 Maximum DC Resistance @20°C
    Ohm/km    		 Maximum AC Resistance @75°C
    Ohm/km    		 Reactance
    Ohm/km    		 Single Phase Voltage Drop @75°C
    mV/Am
    1.5 18 14 22 13.6 16.5 0.111 33.0
    2.5 26 20 31 7.41 9.01 0.102 18.0
    4 34 26 40 4.61 5.61 0.102 11.2
    6 44 34 51 3.08 3.75 0.0967 7.50
    10 60 47 68 1.83 2.23 0.0906 4.46
    16 80 63 88 1.15 1.40 0.0861 2.81
    25 105 88 115 0.727 0.884 0.0853 1.78
    35 130 105 140 0.524 0.638 0.0826 1.28
    50 160 125 165 0.387 0.471 0.0797 0.957
    70 200 155 205 0.268 0.327 0.0770 0.673
    95 250 190 250 0.193 0.236 0.0766 0.498

    Cable Parameter

    Nom. conductor area
    mm^2    		 Conductor
    No./ OD    		 Nom. insulation thickness
    mm    		 Nom. earth conductor area
    mm^2    		 Nom. earth conductor insulation thickness
    mm    		 Nom. overall diameter
    mm    		 Approx. mass
    kg/km
    1.5 7/0.50 0.8 1.5 0.6 10.6 160
    2.5 7/0.67 0.8 2.5 0.7 11.6 220
    4 7/0.85 1.0 2.5 0.7 13.1 295
    6 7/1.04 1.0 2.5 0.7 14.2 335
    10 7/1.35 1.0 4 1.0 15.9 440
    16 7/1.70 1.0 6 1.0 17.9 620
    25 7/2.14 1.2 6 1.0 21.6 840
    35 7/2.65 1.2 10 1.0 22.8 1090
    50 19/1.89 1.4 16 1.0 25.8 1465
    70 19/2.24 1.4 25 1.2 30.4 1900
    95 19/2.65 1.6 25 1.2 34.8 2500
