    PVC Insulated, 4 Cores Flat Cables, 450/750V

    • PVC Insulated, 4 Cores Flat Cables, 450/750V

    Application

    These cables are used for general wiring, unenclosed, enclosed in conduit, buried direct or in underground ducts for domestic, commercial and industrial installations where not subject to mechanical damage. Suitable for two way or intermediate switching applications.

    Standard

    • AS/NZS 5000.2
    • AS 1125
    • AS 3808

    Construction

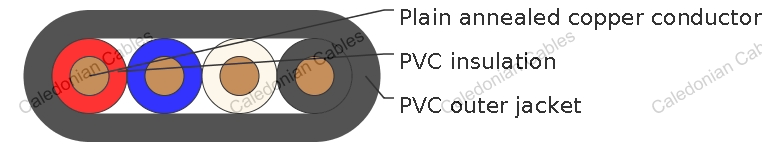

    Conductor Plain annealed copper.
    Maximum operating temperature: 90°C
    Insulation PVC V90
    Insulation colour: 4C cable: Red, White, Blue, Black
    Sheath: Polyvinylchloride compound PVC 3V90
    Sheath colour: White, other colors are available upon request

    Technical Characteristics

    Conductor Current Ratings Electrical Characteristics
    Nominal Area
    mm^2
    Unenclosed In Air
    A
    Surrounded by thermal insulation
    A
    Buried In Ducts
    A
    Maximum DC Resistance @20°C
    Ohm/km
    Maximum AC Resistance @75°C
    Ohm/km
    Reactance
    Ohm/km
    Single Phase Voltage Drop
    mV/Am
    1 14 7 17 18.1 27.0 0.119 46.8
    1.5 17 9 21 13.6 17.3 0.111 30.0
    2.5 25 13 29 7.41 9.45 0.102 16.4
    4 33 17 37 4.61 5.88 0.102 10.2

    Cable Parameter

    Nom. conductor area
    mm^2
    Conductor
    No./ OD
    Nom. insulation thickness
    mm
    Nom. sheath thickness
    mm
    Nom. overall diameter
    mm
    Approx. mass
    kg/km
    Min Max
    1.0 1/1.13 0.6 0.9 11.1x4.1 11.8x4.4 95
    1.5 7/0.50 0.6 0.9 12.6x4.5 13.3x4.8 120
    2.5 7/0.67 0.7 1 15.6x5.4 16.4x5.7 190
    4 7/0.85 0.8 1.1 18.8x6.4 19.7x6.7 290
