    Traffic Signal Cable to BS 6346

    • Traffic Signal Cable to BS 6346
    • Traffic Signal Cable to BS 6346
    • Traffic Signal Cable to BS 6346
    • Traffic Signal Cable to BS 6346

    Application and Description :

    Traffic signal cable is used for the interconnection of traffic signal equipment or other applications requiring high core configurations with mechanical robustness.

    Standard and Approval:

    BS 6346, BS 6360, BS 7655

    Cable Construction:

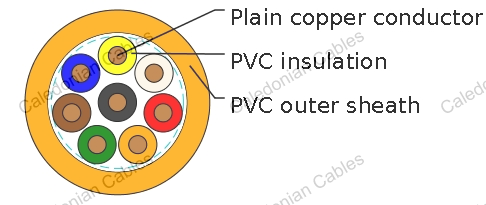

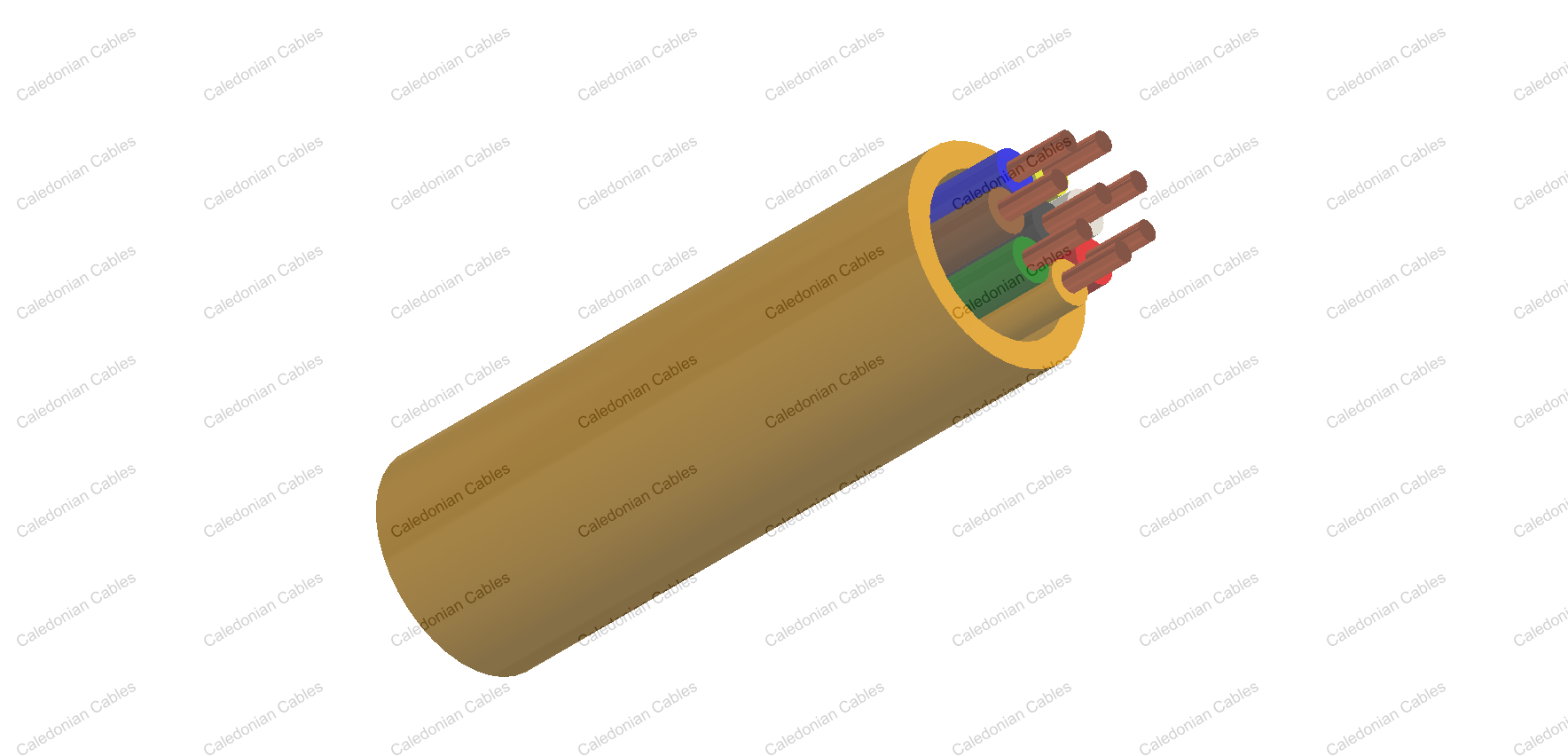

    - Conductor: Solid plain annealed copper, comply with BS 6360, Class 1
    - Insulation: Polyvinyl chloride (PVC), TI1, comply with BS 7655
    - Bedding(for Armoured Cable Only): Polyvinyl chloride (PVC) compound

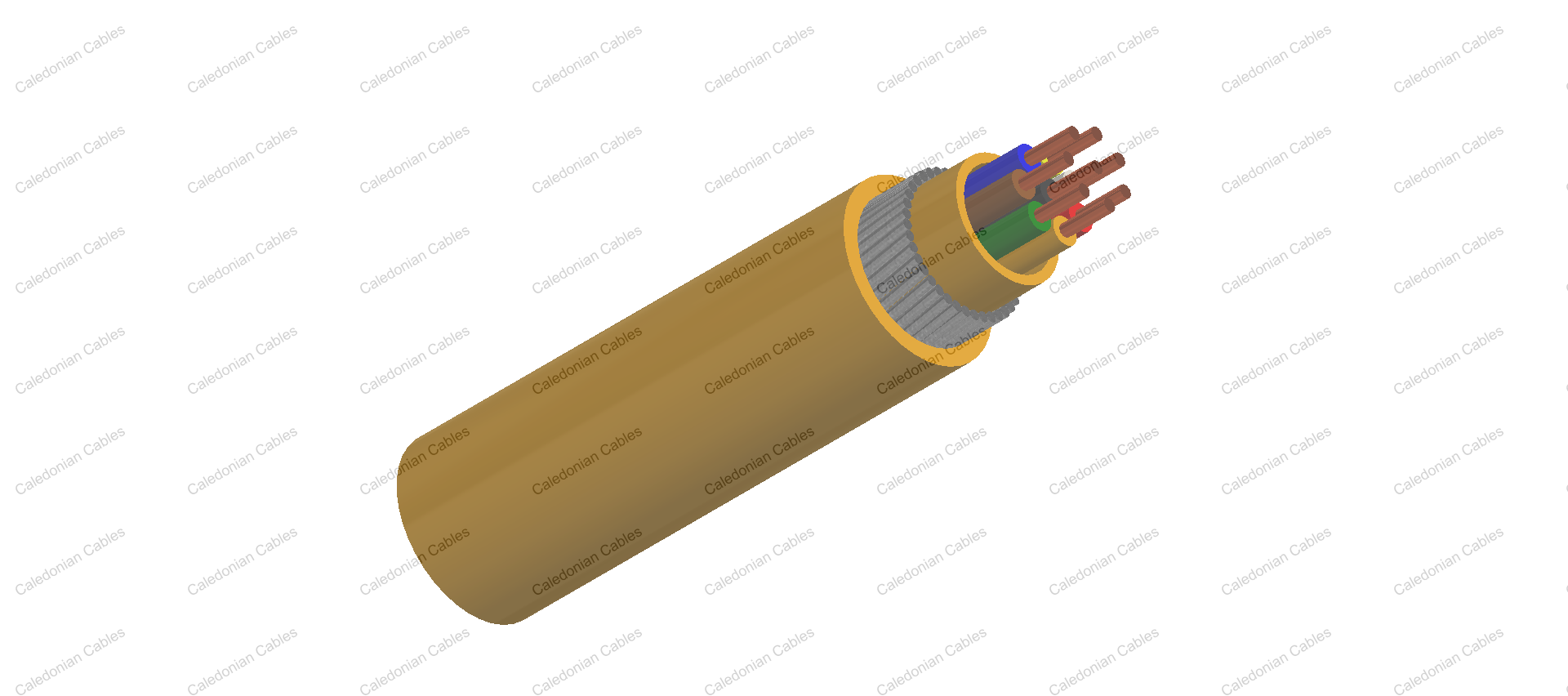

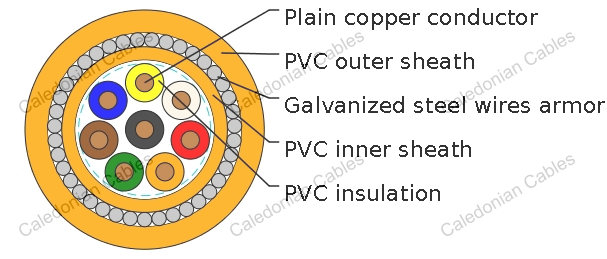

    - Armor(for Armoured Cable Only): Galvanized steel wire armor
    - Sheath: Polyvinyl chloride (PVC), TM1, comply with BS7655
    - Sheath color: Orange

    Core Identification :

    4 core - Red, Blue, Yellow, Green
    8 core - Brown, Yellow, Green, Red, White, Blue, Black, Orange
    12 core - Brown, Yellow, Green, Red, White, Blue, Black, Orange, Red/White, Grey, Red/Blue, Violet
    16 core - Brown, Yellow, Green, Red, White, Blue, Black, Orange, Red/White, Grey, Red/Blue, Violet,
    Brown/Red, Yellow/Red, Grey/Red, Black/Red
    20 core - Brown, Yellow, Green, Red, White, Blue, Black, Orange, Red/White, Grey, Red/Blue, Violet,
    Brown/Red, Yellow/Red, Grey/Red, Black/Red, Violet/Red, Orange/Red, Green/Red, Blue/White Binding Tape Color Code: cables containing more than 25 pairs are assembled insub-sectors/
    groups. These are identified by spirally applied color-coded nonhygroscopicbinding tapes. The binding
    tapes use the same 25 pair color code.

    Technical Characteristics:

    - Rated voltage: 600/Kft volts
    - Conductor Resistance: at 20°C: 18.1ohms/km(1.0mm2)
    12.1 ohms/km(1.5mm2)
    - Minimum bending radius: 6 x Ø
    - Temperature range: -15º C - +70º C
    - Short circuit temperature: 160ºC
    - Flame retardant: BS EN 60332-1-2

    Cable Parameter :

    NUMBER OF CORES  NOMINAL CONDUCTOR AREA NOMINAL CONDUCTOR STRANDING INSULATION THICKNESS BEDDING THICKNESS NOMINAL DIAMETER OF ARMOUR WIRE SHEATH THICKNESS NOMINAL O/D APPROX CABLE WEIGHT
    MM2 NO./MM MM MM MM MM MM KG/KM
    Non armored cables
    8 1.0 1/1.13 0.63 - - 1.4 12.6 218
    12 1.0 1/1.13 0.63 - - 1.5 13.5 305
    8* 1.0 1/1.13 0.63 - - 1.4 14.5 523
    Armored cables
    4 1.0 1/1.13 0.63 0.8 0.9 1.4 13.3 325
    8 1.0 1/1.13 0.63 0.8 0.9 1.4 15.6 413
    12 1.0 1/1.13 0.63 0.8 1.25 1.5 17.9 567
    16 1.0 1/1.13 0.63 0.8 1.25 1.5 19.9 774
    20 1.0 1/1.13 0.63 0.8 1.25 1.6 22.0 905
    4 1.5 1/1.38 0.63 0.8 0.9 1.4 12.5 363
    8 1.5 1/1.38 0.63 0.8 0.9 1.4 15.8 534
    12 1.5 1/1.38 0.63 0.8 1.25 1.5 18.5 704
    16 1.5 1/1.38 0.63 0.8 1.25 1.6 20.0 836
    20 1.5 1/1.38 0.63 0.8 1.25 1.6 21.5 1040
    8* 1.0 1/1.13 0.63 0.8 0.9 1.4 16.3 533

    * includes additional 6mm2 integral earth conductor
