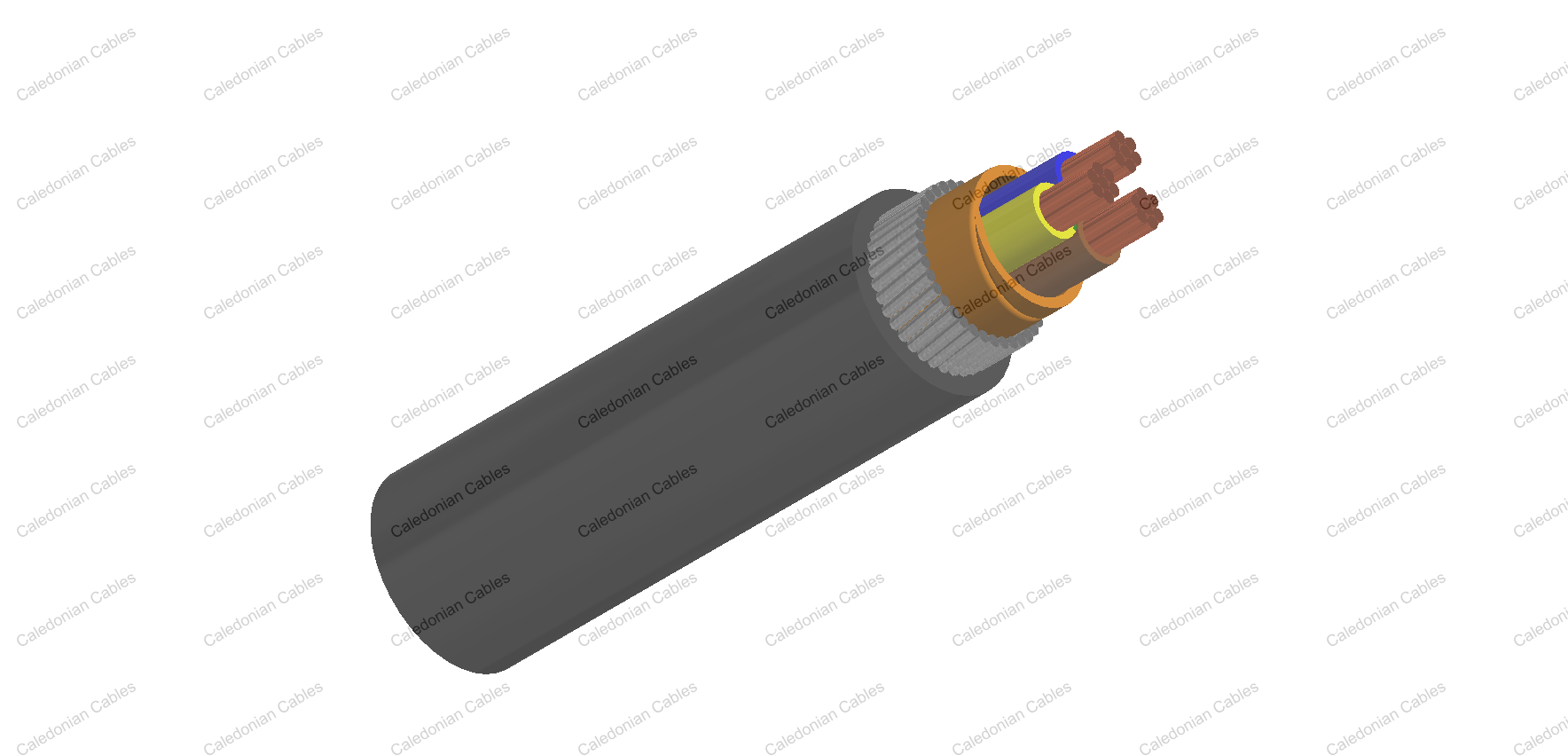

    TR2161-Armoured Energy Cable

    • TR2161-Armoured Energy Cable
    • TR2161-Armoured Energy Cable

    Application and Description :

    TR2161 Non-armoured Energy Cable is a motorway cable sheathed with medium density polyethyylene (MDPE) designed for street lighting.

    Standard :

    IEC 60502, BS 5467

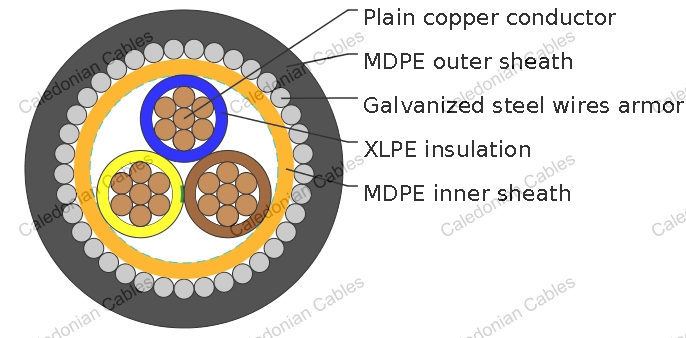

    Cable Construction:

    - Conductor: Plain annealed stranded copper conductor, comply with IEC 60228 for Class 2
    - Insulation: Cross linked polyethylene (XLPE)
    - Core Identification: Brown, Blue, Green/Yellow
    - Inner Sheath: Medium density polyethylene (MDPE), comply with IEC 60708.
    - Armor (for Armoured Cable Only): Galvanized steel wires
    - Outer Sheath: Medium density polyethylene (MDPE), comply with IEC 60708.
    - Sheath Color: Black

    Technical Characteristics :

    - Rated voltage: 600/Kft volts
    - Minimum bending radius: 12 x ?
    - Rated temperature: +90o C
    - Conductor resistance:

    CONDUCTOR SIZE MM2 10 25 50 70 95 120 150
    RESISTANCE OHMS/ KM 1.83 0.727 0.387 0.268 0.193 0.153 0.124

    - Current rating in duct:

    CONDUCTOR SIZE MM2 10 25 50 70 95 120 150
    CURRENT RATING A 92 152 217 266 319 330 406

    - Volt drop :

    CONDUCTOR SIZE MM2 10 25 50 70 95 120 150
    VOLT DROP MV/M 4.1 1.65 0.87 0.6 0.45 0.37 0.3

    Cable Parameter :

    NUMBER OF PAIRS NOMINAL CONDUCTOR AREA NOMINAL CONDUCTOR STRANDING INNER SHEATH THICKNESS ARMOUR THICKNESS OUTER SHEATH THICKNESS NOMINAL O/D APPROX CABLE WEIGHT
    MM2 NO./MM MM MM MM MM KG/KM
    3 10 7/1.35 1.0 1.25 1.8 19.1 881
    3 25 7/2.14 1.0 1.60 1.8 24.9 1703
    3 50 19/1.78 1.0 1.60 2.0 30.7 2660
    3 70 19/2.14 1.0 1.60 2.0 34.6 3489
    3 95 19/2.52 1.2 2.0 2.2 40.7 4903
    3 120 37/2.03 1.2 2.0 2.3 44.4 5891
    3 150 37/2.25 1.4 2.5 2.5 50.0 7521
