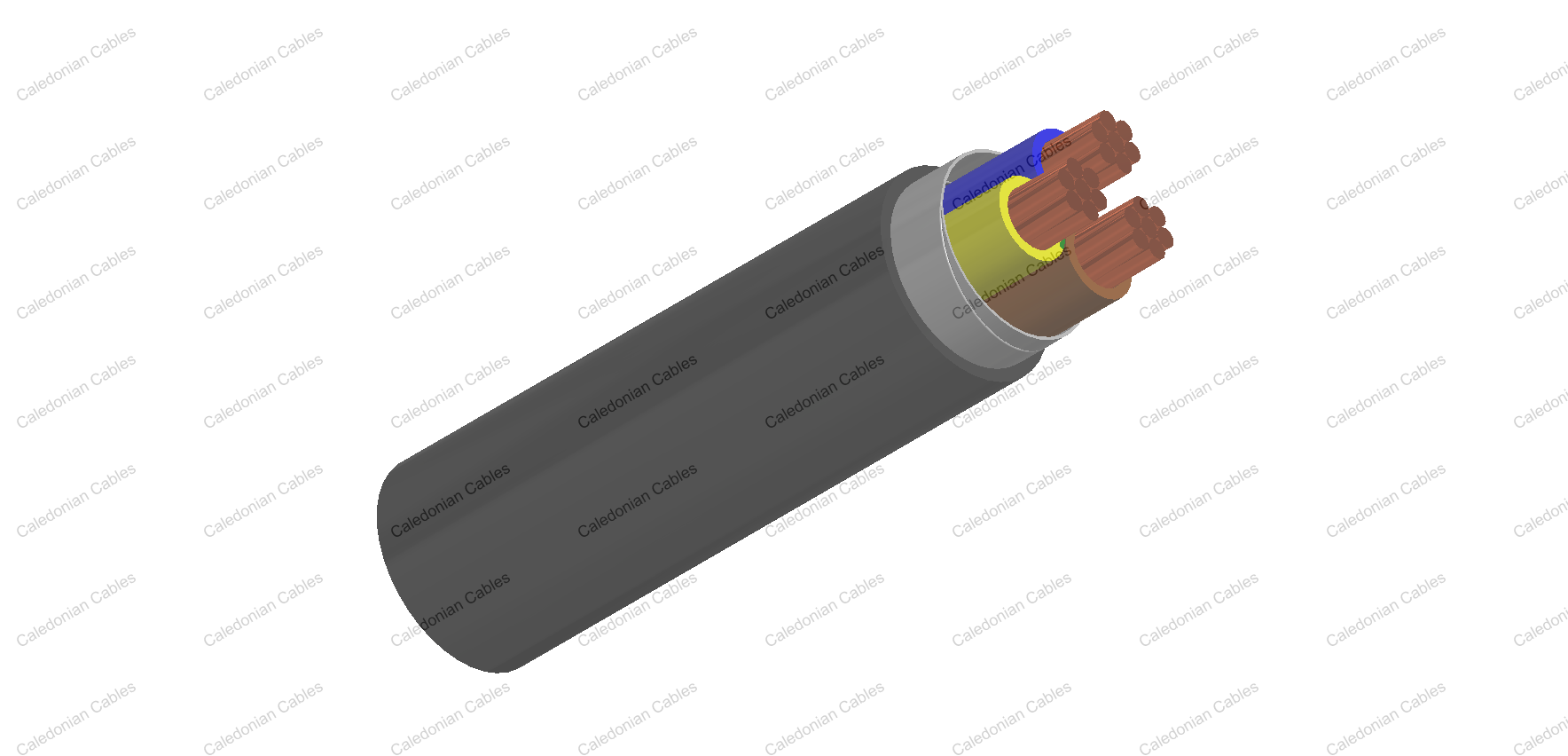

    TR2153- Non Armoured Energy Cable

    • TR2153-Non armoured Energy Cable
    • TR2153-Non armoured Energy Cable

    Application and Description :

    TR2031 Non-armoured Energy Cable is a motorway cable sheathed with medium density polyethylene
    (MDPE) designed for street lighting.

    Standard :

    IEC 60502

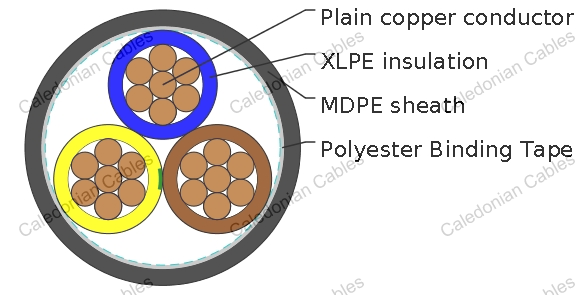

    Cable Construction:

    - Conductor: Plain annealed stranded copper conductor, comply with IEC 60228 for Class 2
    - Insulation: Cross linked polyethylene (XLPE)
    - Core Identification: Brown, Blue, Green/Yellow
    - Tape: Polyester Binding Tape
    - Sheath: Medium density polyethylene (MDPE), comply with IEC 60708
    - Sheath Color: Black

    Technical Characteristics :

    - Rated voltage: 600/Kft volts
    - Minimum bending radius: 12 x ?
    - Rated temperature: +90o C
    - Conductor resistance:

    CONDUCTOR
    SIZE
    MM2 10 25 35 50 70 95 120 150 185 240
    RESISTANCE OHMS/
    KM
    1.83 0.727 0.524 0.387 0.268 0.193 0.153 0.124 0.0991 0.0754

    - Current rating in duct:

    CONDUCTOR
    SIZE
    MM2 10 25 35 50 70 95 120 150 185 240
    CURRENT
    RATING
    A 75 124 - 161 196 234 269 307 - -

    - Volt drop :

    CONDUCTOR
    SIZE
    MM2 10 25 35 50 70 95 120 150 185 240
    VOLT DROP MV/M 4.1 1.65 - 0.87 0.6 0.45 0.37 0.3 - -

    Cable Parameter :

    NUMBER
    OF
    PAIRS
    NOMINAL
    CONDUCTOR
    AREA
    NOMINAL
    CONDUCTOR
    STRANDING
    INSULATION
    THICKNESS
    INNER
    SHEATH
    THICKNESS
    NOMINAL O/D APPROX
    CABLE WEIGHT
    MM2 NO./MM MM MM MM KG/KM
    3 10 7/1.35 0.7 0.8 13 455
    3 25 7/2.14 1.2 1.8 23 1192
    3 35 7/2.52 1.4 1.8 26 1623
    3 50 19/1.78 1.4 1.8 29 2180
    3 70 19/2.14 1.4 1.9 33 3072
    3 95 19/2.52 1.6 2.0 38 4220
    3 120 37/2.03 1.6 2.1 42 5302
    3 150 37/2.25 1.8 2.3 46 6515
    3 185 37/2.52 2.0 2.6 52 8173
    3 240 61/2.25 2.2 2.8 59 10705
