    TR2031- Loop Detector Feeder Cable

    • TR2031- Loop Detector Feeder Cable
    • TR2031- Loop Detector Feeder Cable
    • TR2031- Loop Detector Feeder Cable
    • TR2031- Loop Detector Feeder Cable

    Application and Description :

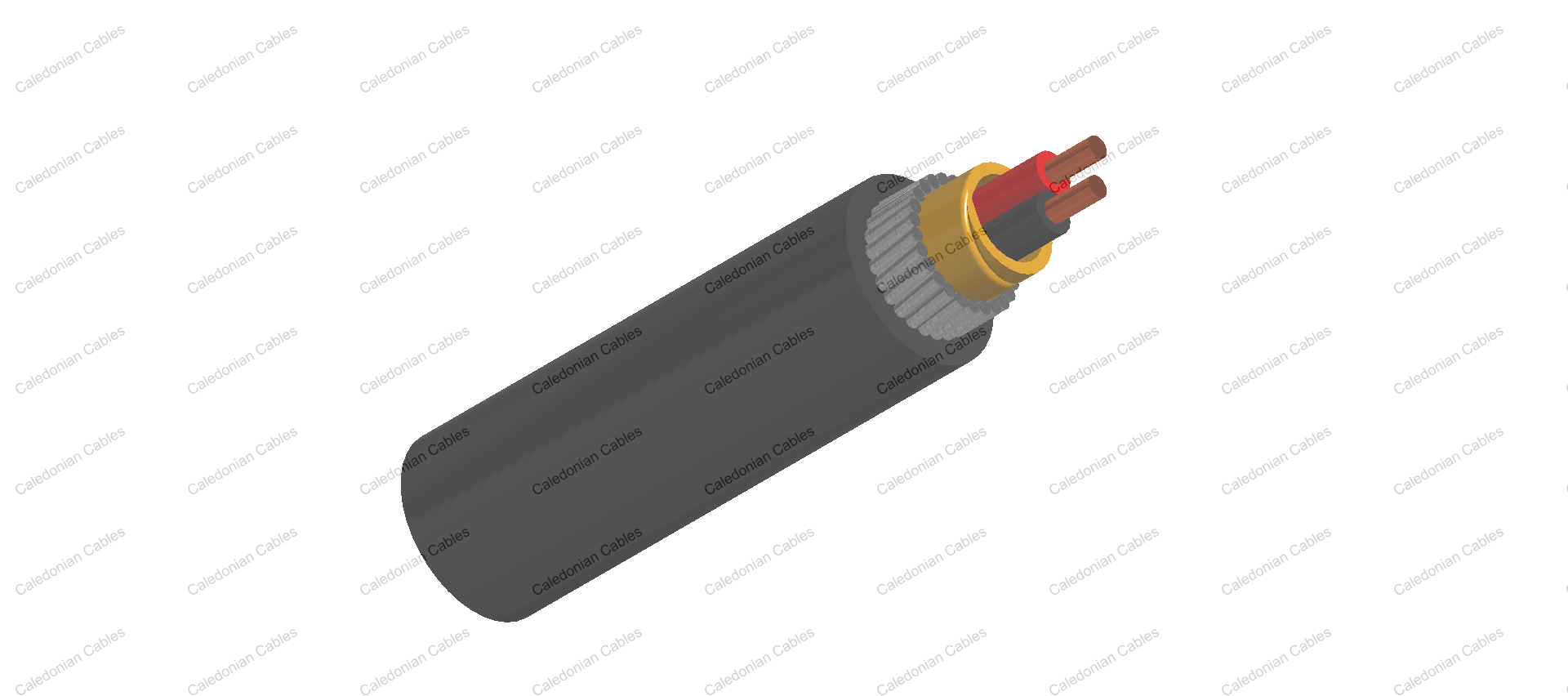

    TR2031 loop detector feeder cable is a copper communications cable sheathed with medium density polyethyylene (MDPE) designed for installation in a ducted network. Armoured feeder cables are used to feed electrical current to inductive cable loops and designed for direct burial underground.

    Standard :

    BS 6500

    Cable Construction:

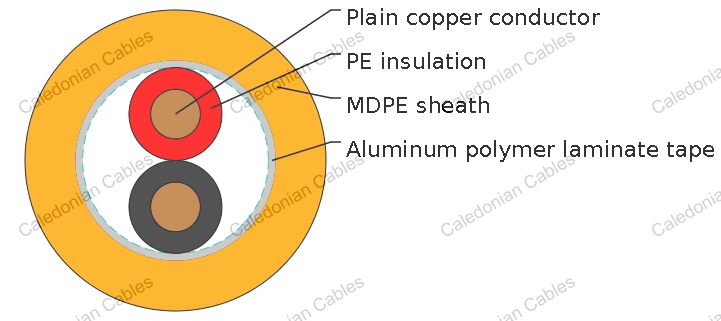

    Conductor : Solid plain annealed copper, comply with IEC 60228 for Class 1

    Insulation : Polythene (PE), comply with IEC 60708

    Core Identification : 1 pair – red, black ; 2 pair – red, yellow, blue, black laid up in quad formation in order of rotation

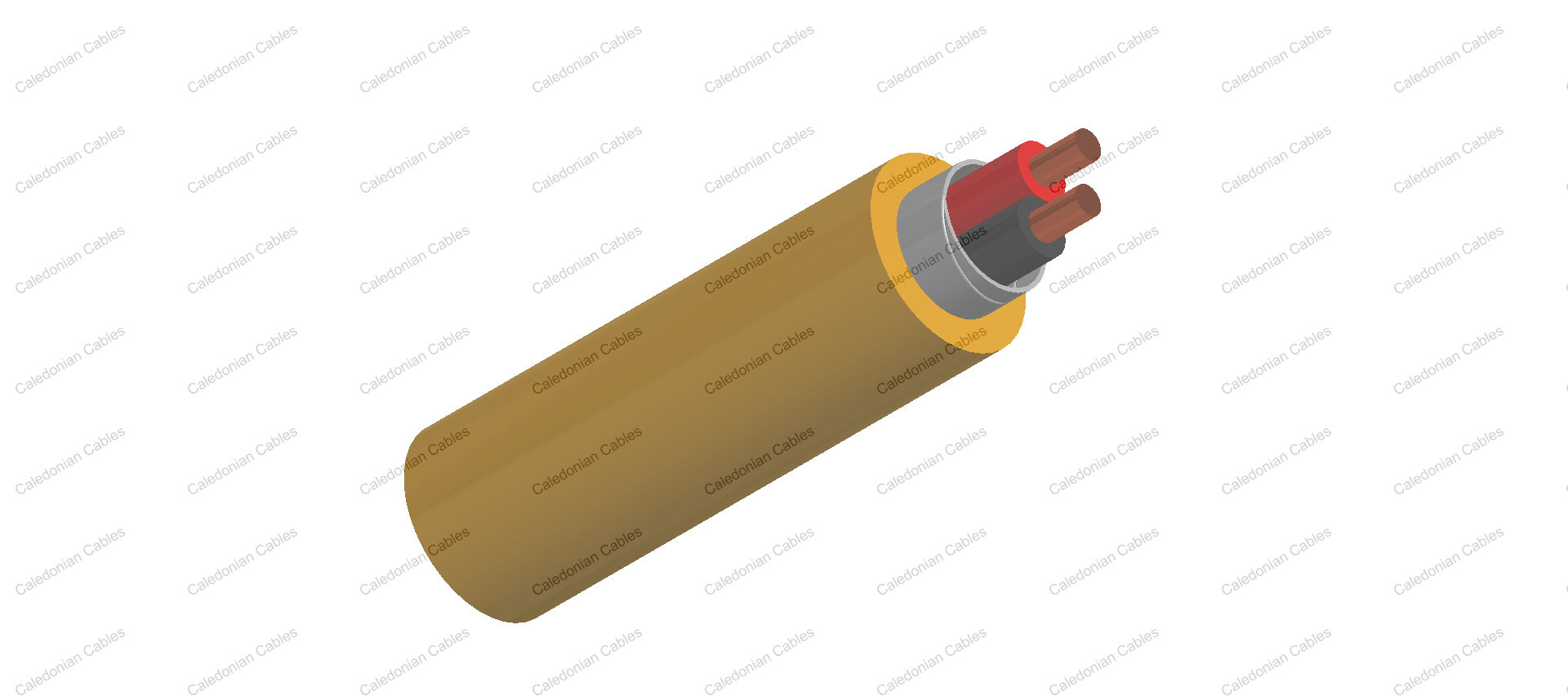

    Screen (for Non Armoured Cable Only) : Aluminum polymer laminate tape comply with IEC 60708

    Inner Sheath (for Armoured Cable Only) : Medium density polyethylene (MDPE), comply with IEC 60708

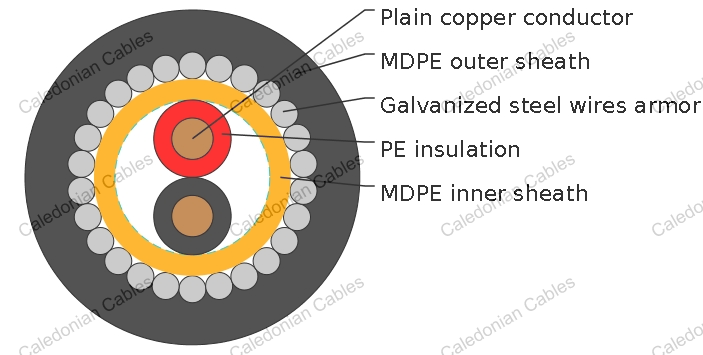

    Armor (for Armoured Cable Only) : Galvanized steel wires to BS EN 10257-1

    Outer Sheath : Medium density polyethylene (MDPE), comply with IEC 60708.

    Outer Sheath Color : Orange/Black

    Technical Characteristics

    Rated voltage : 600/Kft volts

    Minimum bending radius : 8 × Ø

    Rated temperature : +70°C

    Conductor resistance at 20°C : 1.5mm² ---- 12.1ohms/km ; 2.5mm² ---- 7.41ohms/km

    Insulation resistance : >1500 MO × km

    Loop inductance : 630μH/km(1P) ; 720μH/km(2P)

    Capacitance :

    Unarmored Armored
    1.5 mm² 2.5 mm² 1.5 mm² 2.5 mm²
    <75 pF/m (1P) pF/m 64 pF/m (1P)
    52 pF/m (2P) 53.5 pF/m (2P)

    Current rating :

    Unarmored in air (30°C) Armored in ground (15°C, 1.2°C m/W)
    1.5 mm² 2.5 mm² 1.5 mm² 2.5 mm²
    24* 33* 32* 41*

    *These ratings are based on only two cores loaded simultaneously. In two pair cables where all four cores could be loaded simultaneously, the above values should be multiplied by 0.78.

    Cable Parameter

    Number of Pairs Nominal Conductor Area Nominal Conductor Stranding Insulation Thickness Inner Sheath Thickness Nominal diameter of armour wire Outer Sheath Thickness Nominal O/D Approx Cable Weight
    mm² NO./mm mm mm mm mm mm Kg/km
    Unarmored cables
    1 1.5 1/1.38 0.60 - - 1.4 9.0 67
    2 (Q) 1.5 1/1.38 0.60 - - 1.4 10.2 118
    1 2.5 1/1.78 0.70 - - 1.4 10.4 99
    2 (Q) 2.5 1/1.78 0.70 - - 1.4 11.8 166
    Armored cables
    1 1.5 1/1.38 0.60 0.7 0.9 1.4 11.9 265
    2 (Q) 1.5 1/1.38 0.60 0.7 0.9 1.4 13.2 335
    1 2.5 1/1.78 0.70 0.7 0.9 1.4 12.7 336
    2 (Q) 2.5 1/1.78 0.70 0.7 0.9 1.4 14.1 375
