    Loop Feeder Cable to BS6346

    • Loop Feeder Cable to BS6346
    • Loop Feeder Cable to BS6346
    • Loop Feeder Cable to BS6346
    • Loop Feeder Cable to BS6346

    Application and Description :

    Loop Feeder Cable is used to connect traffic lights to the central control management system. The cables come in armoured, for direct burial, or unarmoured for applications where additional mechanical protection has been afforded by other means such as ducting. The Loop feeder cables are supplied in a highly visible orange for easy location of buried services. These cables are also suitable for use in small power, lighting or control circuits.

    Standard and Approval:

    BS 6346, BS 6360, BS 6234

    Cable Construction:

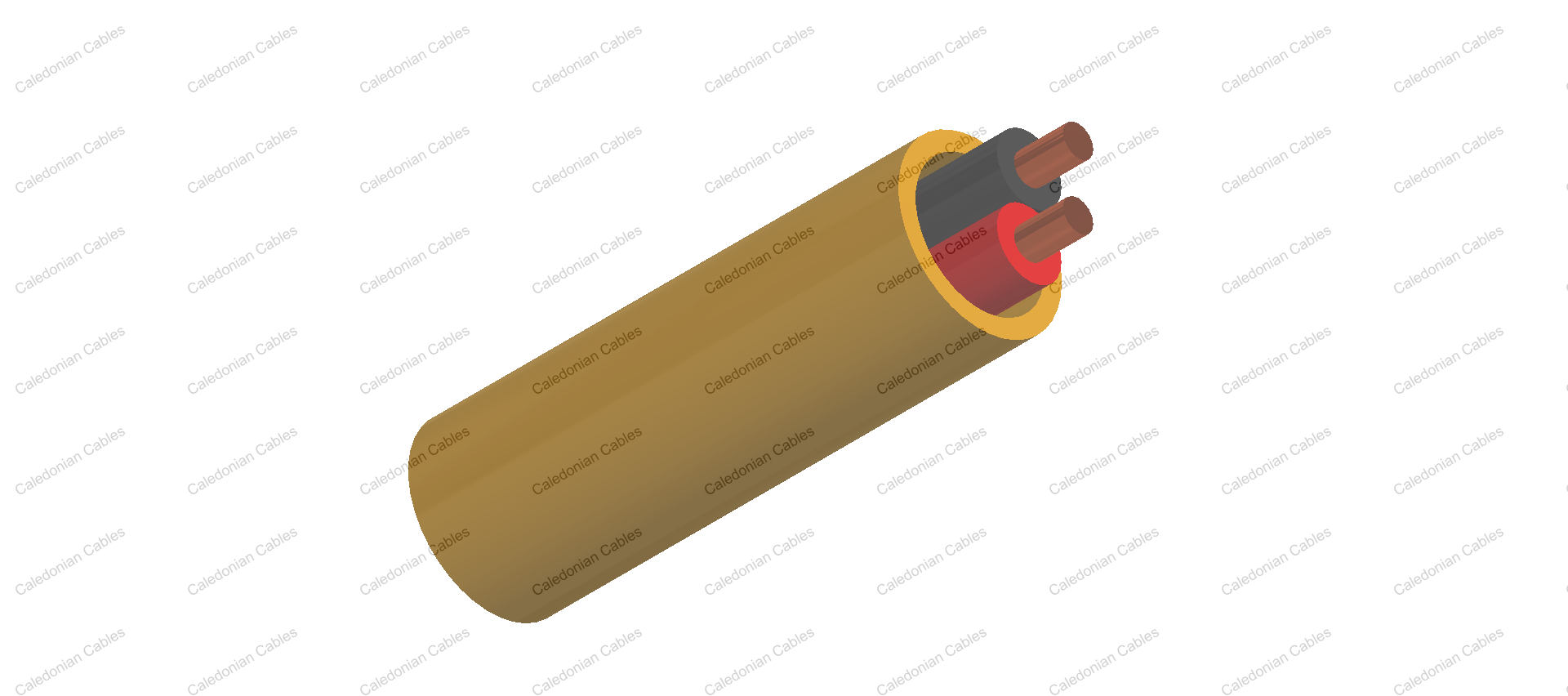

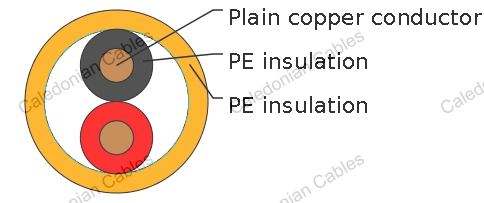

    - Conductor: Conductor: Solid plain annealed copper, comply with BS 6360, Class 1
    - Insulation: Polythene (PE), comply with BS 6234, type 03
    - Pairing: Two insulated conductors twisted together, four cores laid up as a quad
    - Bedding (for Armoured Cable Only): Polythene (PE), comply with BS 6234, type 03

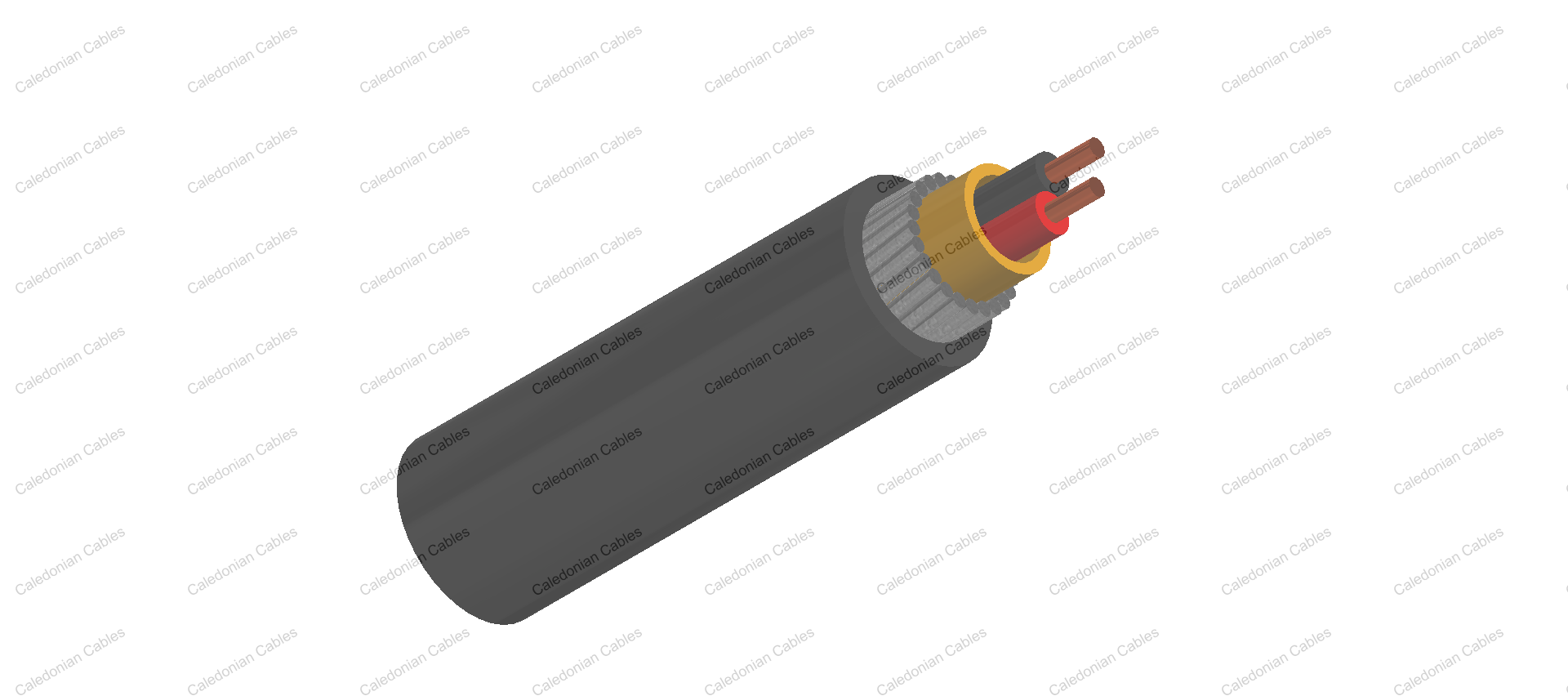

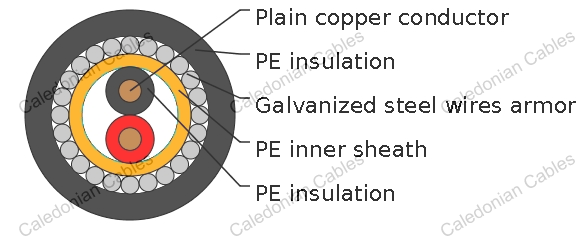

    - Armor (for Armoured Cable Only): Galvanized steel wires
    - Sheath: Polythene (PE), comply with BS 6234, type 03
    - Sheath Colour: Orange

    Core Identification :

    1 pair – red, black
    2 pair –red, yellow, blue, black laid up in quad formation in order of rotation:

    Technical Characteristics:

    - Rated voltage: 600/Kft volts
    - Conductor Resistance: at 20°C: 12.1ohms/km(1.5mm2)
    7.41 ohms/km(2.5mm2)
    - Minimum bending radius: 7.5 x Ø
    - Temperature range: -20º C - +70º C
    - Loop inductance: 630μH/km(1P) 720μH/km(2P)
    - Capacitance:

    UNARMORED ARMORED
    1.5 mm2 2.5 mm2 1.5 mm2 2.5 mm2
     <75 pF/m (1P) <75 pF/m 64 pF/m (1P)
    52 pF/m (2P) 53.5 pF/m (2P)

    Cable Parameter :

    NUMBER OF CORES NOMINAL CONDUCTOR AREA NOMINAL CONDUCTOR STRANDING INSULATION THICKNESS BEDDING THICKNESS NOMINAL DIAMETER OF ARMOUR WIRE SHEATH THICKNESS NOMINAL O/D APPROX CABLE WEIGHT
      MM2 NO./MM MM MM MM MM MM KG/KM
    Non armored cables
    2 (1pr) 1.5 1/1.38 0.64 - - 1.3 9.0 80
    4 (2pr) 1.5 1/1.38 0.64 - - 1.3 9.1 123
    2 (1pr) 2.5 1/1.78 0.74 - - 1.4 9.3 110
    4 (2pr) 2.5 1/1.78 0.74 - - 1.4 10.7 180
    Armored cables
    2 (1pr) 1.5 1/1.38 0.64 0.8 0.9 1.3 11.8 230
    4 (2pr) 1.5 1/1.38 0.64 0.8 0.9 1.3 12.7 295
    2 (1pr) 2.5 1/1.78 0.74 0.8 0.9 1.4 12.5 279
    4 (2pr) 2.5 1/1.78 0.74 0.8 0.9 1.4 15.0 378

    * includes additional 6mm2 integral earth conductor
