These cables are used in road pavements to detect vehicles for the purpose of changing signals or
determining amount of traffic flow.

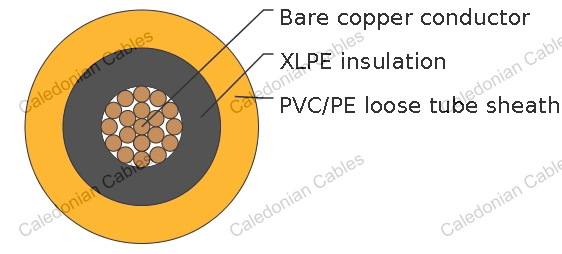

- Conductor: Stranded bare copper per ASTM B-8
- Insulation: Cross-linked polyethylene (XLPE)
- Sheatht: PE or PVC loose tube, black or orange
60°C
600 V
AWG | NO. OF CONDUCTOR |
SOLID OR STRANDED |
INSULATION THICKNESS |
SHEATH THICKNESS |
OVERALL DIAMETER |
CABLE WEIGHT | ||||
---|---|---|---|---|---|---|---|---|---|---|
INCHES | MM | INCHES | MM | INCHES | MM | LBS./ KFT |
KG/KM | |||
PE tube | ||||||||||
14 | 1 | 19strand | 0.030 | 0.76 | 0.030 | 0.76 | 0.19 | 4.83 | 26 | 39 |
12 | 1 | 19strand | 0.030 | 0.76 | 0.030 | 0.76 | 0.22 | 5.59 | 31 | 46 |
PVC tube | ||||||||||
14 | 1 | 19strand | 0.030 | 0.76 | 0.030 | 0.76 | 0.19 | 4.83 | 31 | 46 |
12 | 1 | 19strand | 0.030 | 0.76 | 0.030 | 0.76 | 0.22 | 5.59 | 37 | 55 |
