These cables are used in road pavements to detect vehicles for the purpose of changing signals or determining amount of traffic flow.

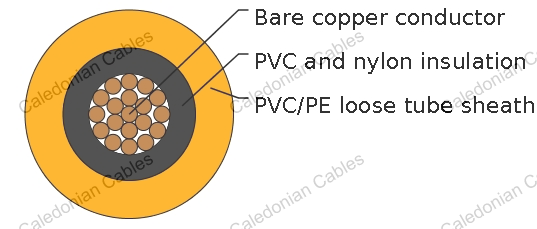

- Conductor: Stranded bare copper per ASTM B-8
- Insulation: PVC(15Mils)/Nylon(5Mils)
- Sheath: PE or PVC loose Tube, black or orange
60°C
600 V
AWG | NO. OF CONDUCTOR |
SOLID OR STRANDED |
INSULATION THICKNESS |
SHEATH THICKNESS |
OVERALL DIAMETER |
CABLE WEIGHT | ||||
---|---|---|---|---|---|---|---|---|---|---|
INCHES | MM | INCHES | MM | INCHES | MM | LBS./ KFT |
KG/KM | |||
PE tube | ||||||||||
14 | 1 | 19strand | 0.02 | 0.51 | 0.030 | 0.76 | 0.18 | 4.57 | 22 | 33 |
12 | 1 | 19strand | 0.02 | 0.51 | 0.030 | 0.76 | 0.2 | 5.08 | 29 | 43 |
PVC tube | ||||||||||
14 | 1 | 19strand | 0.02 | 0.51 | 0.030 | 0.76 | 0.18 | 4.57 | 30 | 45 |
12 | 1 | 19strand | 0.02 | 0.51 | 0.030 | 0.76 | 0.2 | 5.08 | 36 | 54 |
