These cables are designed for use in municipal signal systems as "Loop Detector Wire". These wires are installed in pavement saw cuts at traffic intersections to detect the presence of motor vehicles. The signal is sent to a traffic signal controller to activate the light changes.

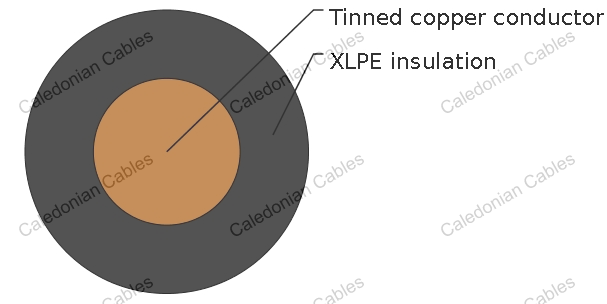

- Conductor: Solid or stranded tinned copper per ASTM B-3 or ASTM B-8
- Insulation: Black cross-linked polyethylene (XLPE)
90°C
600 V
| AWG | NO. OF CONDUCTOR |
SOLID OR STRANDED | INSULATION THICKNESS | OVERALL DIAMETER | CABLE WEIGHT | |||
|---|---|---|---|---|---|---|---|---|
| INCHES | MM | INCHES | MM | LBS./KFT | KG/KM | |||
| 14 | 1 | Solid | 0.030 | 0.76 | 0.125 | 3.18 | 17 | 25 |
| 14 | 1 | 7 | 0.030 | 0.76 | 0.135 | 3.43 | 18 | 27 |
| 14 | 1 | 19 | 0.030 | 0.76 | 0.135 | 3.43 | 18 | 27 |
| 12 | 1 | Solid | 0.030 | 0.76 | 0.145 | 3.68 | 25 | 37 |
| 12 | 1 | 7 | 0.030 | 0.76 | 0.155 | 3.94 | 26 | 39 |
| 10 | 1 | Solid | 0.030 | 0.76 | 0.165 | 4.19 | 38 | 57 |
| 10 | 1 | 7 | 0.030 | 0.76 | 0.18 | 4.57 | 39 | 58 |
| 8 | 1 | 7 | 0.045 | 1.14 | 0.24 | 6.10 | 66 | 98 |
| 6 | 1 | 7 | 0.045 | 1.14 | 0.275 | 6.99 | 99 | 147 |
| 4 | 1 | 7 | 0.045 | 1.14 | 0.325 | 8.26 | 151 | 225 |
| 2 | 1 | 7 | 0.045 | 1.14 | 0.38 | 9.65 | 232 | 345 |
