    IMSA 39-6/40-6( Communication Cable)

    Application and Description :

    These cables are designed for use in underground conduit or as aerial cable supported by a messenger, or for direct earth burial or for installation in race way in buildings, not including trays, either as fire protective signaling cable or traffic communications and data acquisition cable suitable for power limited use, suitable for use in either wet or dry locations.

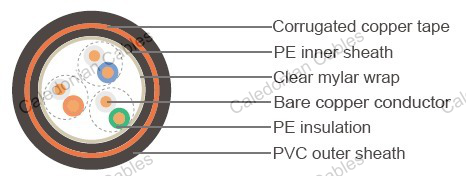

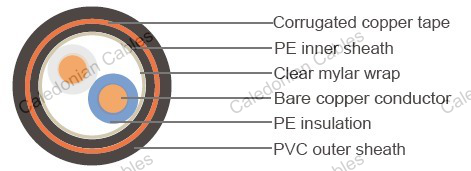

    Cable Construction:

    - Conductor: Solid bare copper per ASTM B-3(stranded copper is optional)
    - Insulation: Polyethylene(PE)
    - Pairing: Two insulated conductors twisted together
    - Binder tape: Clear mylar wrap – 100% coverage
    - Inner sheath: Polyethylene(PE)
    - Shield: Corrugated copper tape- 15% minimum overlap
    - Outer sheath: IMSA 39-6-Black Polyvinyl chloride (PVC)/
    IMSA 40-6-Black Polyethylene(PE)

    Color Code :

    CONDUCTOR NO. INSULATION COLOR CONDUCTOR NO. INSULATION COLOR
    A WIRE B WIRE A WIRE B WIRE
    1 White Blue 14 Black Brown
    2 White Orange 15 Black Slate
    3 White Green 16 Yellow Blue
    4 White Brown 17 Yellow Orange
    5 White Slate 18 Yellow Green
    6 Red Blue 19 Yellow Brown
    7 Red Orange 20 Yellow Slate
    8 Red Green 21 Violet Blue
    9 Red Brown 22 Violet Orange
    10 Red Slate 23 Violet Green
    11 Black Blue 24 Violet Brown
    12 Black Orange 25 Violet Slate
    13 Black Green

    Binding Tape Color Code: cables containing more than 25 pairs are assembled insub-sectors/
    groups. These are identified by spirally applied color-coded nonhygroscopicbinding tapes. The binding
    tapes use the same 25 pair color code.

    Temperature Rating:

    75°C

    Voltage Rating:

    300 V

    Cable Parameter :

    AWG NO. OF PAIRS SOLID OR STRANDED INSULATION THICKNESS INNER SHEATH THICKNESS OUTER SHEATH THICKNESS OVERALL DIAMETER CABLE WEIGHT
    INCHES MM INCHES MM INCHES MM INCHES MM LBS./KFT KG/KM
    19 3 Solid 0.015 0.38 0.045 1.14 0.06 1.52 0.57 14.48 115 171
    19 6 Solid 0.015 0.38 0.045 1.14 0.06 1.52 0.63 16.00 157 234
    19 12 Solid 0.015 0.38 0.045 1.14 0.06 1.52 0.756 19.20 248 369
    19 18 Solid 0.015 0.38 0.045 1.14 0.08 2.03 0.89 22.61 352 524
    19 25 Solid 0.015 0.38 0.045 1.14 0.08 2.03 1.01 25.65 444 661
    19 50 Solid 0.015 0.38 0.06 1.52 0.08 2.03 1.255 31.88 783 1165
    16 3 Solid 0.02 0.51 0.045 1.14 0.06 1.52 0.66 16.76 161 240
    16 6 Solid 0.02 0.51 0.045 1.14 0.06 1.52 0.78 19.81 247 368
    16 12 Solid 0.02 0.51 0.06 1.52 0.08 2.03 0.97 24.64 421 626
    16 18 Solid 0.02 0.51 0.06 1.52 0.08 2.03 1.22 30.99 607 903
    16 25 Solid 0.02 0.51 0.075 1.91 0.11 2.79 1.31 33.27 772 1149
    16 50 Solid 0.02 0.51 0.045 1.14 0.06 1.52 1.83 46.48 1493 2222
