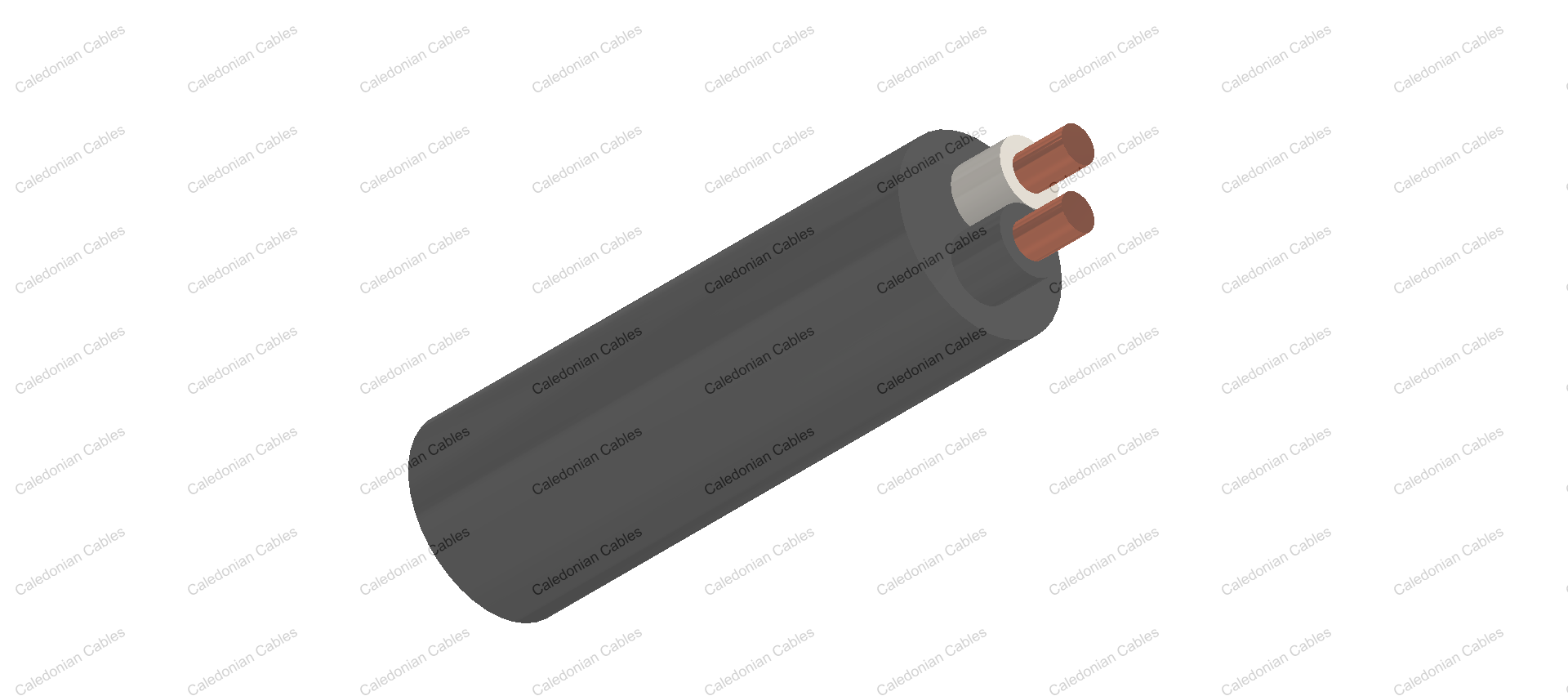

These cables are suitable for outdoor or indoor use in traffic signal, traffic control systems, fire alarm systems, underground conduit and aerial use with messenger. Rated for 600 Volts 75°C wet or dry locations.

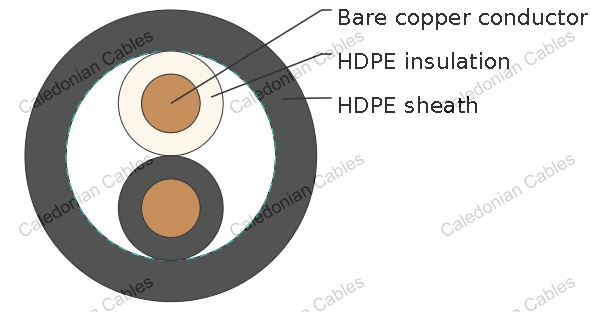

- Conductor: Solid bare copper per ASTM B-3 or stranded bare copper per ASTM B-8, & B-174
- Insulation: High density polyethylene (HDPE)
- Sheath: High density polyethylene (HDPE)
CONDUCTOR NO. | INSULATION COLOR | STRIPE COLOR |
CONDUCTOR NO. | INSULATION COLOR |
STRIPE COLOR |
---|---|---|---|---|---|
1 | Black | – | 14 | Green | White |
2 | White | – | 15 | Blue | White |
3 | Red | – | 16 | Black | Red |
4 | Green | – | 17 | White | Red |
5 | Orange | – | 18 | Orange | Red |
6 | Blue | – | 19 | Blue | Red |
7 | White | Black | 20 | Red | Green |
8 | Red | Black | 21 | Orange | Green |
9 | Green | Black | 22 | Black | – |
10 | Orange | Black | 23 | White | – |
11 | Blue | Black | 24 | Red | – |
12 | Black | White | 25 | Green | – |
13 | Red | White |
75°C
600 V
AWG | NO. OF CONDUCTOR |
SOLID OR STRANDED | INSULATION THICKNESS | SHEATH THICKNESS | OVERALL DIAMETER | CABLE WEIGHT | ||||
---|---|---|---|---|---|---|---|---|---|---|
INCHES | MM | INCHES | MM | INCHES | MM | LBS./ KFT | KG/KM | |||
18 | 5 | 7strand | 0.025 | 0.64 | 0.045 | 1.14 | 0.354 | 8.99 | 60 | 89 |
16 | 2 | solid | 0.025 | 0.64 | 0.045 | 1.14 | 0.299 | 7.59 | 39 | 58 |
16 | 7 | 7strand | 0.025 | 0.64 | 0.045 | 1.14 | 0.419 | 10.64 | 102 | 152 |
16 | 20 | 7strand | 0.025 | 0.64 | 0.06 | 1.52 | 0.696 | 17.68 | 278 | 414 |
14 | 2 | solid | 0.025 | 0.64 | 0.045 | 1.14 | 0.25 | 6.35 | 52 | 77 |
14 | 2 | 7strand | 0.025 | 0.64 | 0.045 | 1.14 | 0.341 | 8.66 | 55 | 82 |
14 | 3 | solid | 0.025 | 0.64 | 0.045 | 1.14 | 0.342 | 8.69 | 66 | 98 |
14 | 3 | 7strand | 0.025 | 0.64 | 0.045 | 1.14 | 0.359 | 9.12 | 71 | 106 |
14 | 4 | solid | 0.025 | 0.64 | 0.045 | 1.14 | 0.372 | 9.45 | 85 | 126 |
14 | 4 | 7strand | 0.025 | 0.64 | 0.045 | 1.14 | 0.391 | 9.93 | 88 | 131 |
14 | 5 | solid | 0.025 | 0.64 | 0.045 | 1.14 | 0.406 | 10.31 | 103 | 153 |
14 | 5 | 7strand | 0.025 | 0.64 | 0.045 | 1.14 | 0.43 | 10.92 | 108 | 161 |
14 | 6 | solid | 0.025 | 0.64 | 0.045 | 1.14 | 0.44 | 11.18 | 118 | 176 |
14 | 6 | 7strand | 0.025 | 0.64 | 0.045 | 1.14 | 0.464 | 11.79 | 127 | 189 |
14 | 7 | solid | 0.025 | 0.64 | 0.045 | 1.14 | 0.44 | 11.18 | 136 | 202 |
14 | 7 | 7strand | 0.025 | 0.64 | 0.045 | 1.14 | 0.464 | 11.79 | 141 | 210 |
14 | 8 | solid | 0.025 | 0.64 | 0.045 | 1.14 | 0.476 | 12.09 | 155 | 231 |
14 | 8 | 7strand | 0.025 | 0.64 | 0.045 | 1.14 | 0.507 | 12.88 | 160 | 238 |
14 | 9 | solid | 0.025 | 0.64 | 0.045 | 1.14 | 0.511 | 12.98 | 172 | 256 |
14 | 9 | 7strand | 0.025 | 0.64 | 0.06 | 1.52 | 0.571 | 14.50 | 192 | 286 |
14 | 10 | solid | 0.025 | 0.64 | 0.06 | 1.52 | 0.586 | 14.88 | 197 | 293 |
14 | 10 | 7strand | 0.025 | 0.64 | 0.06 | 1.52 | 0.592 | 15.04 | 205 | 305 |
14 | 12 | solid | 0.025 | 0.64 | 0.06 | 1.52 | 0.603 | 15.32 | 232 | 345 |
14 | 12 | 7strand | 0.025 | 0.64 | 0.06 | 1.52 | 0.636 | 16.15 | 244 | 363 |
14 | 14 | 7strand | 0.025 | 0.64 | 0.06 | 1.52 | 0.668 | 16.97 | 280 | 417 |
14 | 15 | solid | 0.025 | 0.64 | 0.06 | 1.52 | 0.667 | 16.94 | 284 | 423 |
14 | 15 | 7strand | 0.025 | 0.64 | 0.06 | 1.52 | 0.704 | 17.88 | 302 | 449 |
14 | 16 | solid | 0.025 | 0.64 | 0.06 | 1.52 | 0.667 | 16.94 | 299 | 445 |
14 | 16 | 7strand | 0.025 | 0.64 | 0.06 | 1.52 | 0.704 | 17.88 | 316 | 470 |
14 | 19 | solid | 0.025 | 0.64 | 0.06 | 1.52 | 0.701 | 17.81 | 348 | 518 |
14 | 19 | 7strand | 0.025 | 0.64 | 0.06 | 1.52 | 0.741 | 18.82 | 366 | 545 |
14 | 20 | solid | 0.025 | 0.64 | 0.06 | 1.52 | 0.737 | 18.72 | 370 | 550 |
14 | 20 | 7strand | 0.025 | 0.64 | 0.06 | 1.52 | 0.779 | 19.79 | 387 | 576 |
14 | 21 | solid | 0.025 | 0.64 | 0.06 | 1.52 | 0.737 | 18.72 | 384 | 571 |
14 | 21 | 7strand | 0.025 | 0.64 | 0.06 | 1.52 | 0.779 | 19.79 | 405 | 603 |
14 | 25 | solid | 0.025 | 0.64 | 0.06 | 1.52 | 0.796 | 20.22 | 450 | 670 |
14 | 25 | 7strand | 0.025 | 0.64 | 0.08 | 1.52 | 0.925 | 23.50 | 518 | 771 |
12 | 2 | solid | 0.03 | 0.76 | 0.045 | 1.14 | 0.384 | 9.75 | 74 | 110 |
12 | 2 | 7strand | 0.03 | 0.76 | 0.045 | 1.14 | 0.397 | 10.08 | 74 | 110 |
12 | 3 | solid | 0.03 | 0.76 | 0.045 | 1.14 | 0.402 | 10.21 | 99 | 147 |
12 | 3 | 7strand | 0.03 | 0.76 | 0.045 | 1.14 | 0.42 | 10.67 | 103 | 153 |
12 | 4 | solid | 0.03 | 0.76 | 0.045 | 1.14 | 0.44 | 11.18 | 124 | 184 |
12 | 4 | 7strand | 0.03 | 0.76 | 0.045 | 1.14 | 0.459 | 11.66 | 130 | 193 |
12 | 5 | solid | 0.03 | 0.76 | 0.045 | 1.14 | 0.48 | 12.19 | 152 | 226 |
12 | 5 | 7strand | 0.03 | 0.76 | 0.045 | 1.14 | 0.503 | 12.78 | 159 | 237 |
12 | 7 | solid | 0.03 | 0.76 | 0.06 | 1.52 | 0.561 | 14.25 | 212 | 315 |
12 | 7 | 7strand | 0.03 | 0.76 | 0.06 | 1.52 | 0.579 | 14.71 | 222 | 330 |
12 | 9 | 7strand | 0.03 | 0.76 | 0.06 | 1.52 | 0.677 | 17.20 | 284 | 423 |
12 | 10 | solid | 0.03 | 0.76 | 0.06 | 1.52 | 0.69 | 17.52 | 296 | 440 |
12 | 10 | 7strand | 0.03 | 0.76 | 0.06 | 1.52 | 0.686 | 17.42 | 309 | 460 |
12 | 12 | solid | 0.03 | 0.76 | 0.06 | 1.52 | 0.711 | 18.06 | 346 | 515 |
12 | 12 | 7strand | 0.03 | 0.76 | 0.06 | 1.52 | 0.753 | 19.13 | 367 | 546 |
12 | 16 | 7strand | 0.03 | 0.76 | 0.08 | 2.03 | 0.876 | 22.25 | 501 | 745 |
12 | 19 | 7strand | 0.03 | 0.76 | 0.08 | 2.03 | 0.929 | 23.60 | 582 | 866 |
12 | 20 | 7strand | 0.03 | 0.76 | 0.08 | 2.03 | 0.976 | 24.80 | 618 | 919 |
12 | 21 | 7strand | 0.03 | 0.76 | 0.08 | 2.03 | 0.976 | 24.80 | 643 | 957 |
12 | 25 | 7strand | 0.03 | 0.76 | 0.08 | 2.03 | 1.08 | 27.43 | 751 | 1117 |
10 | 2 | 7strand | 0.03 | 0.76 | 0.045 | 1.14 | 0.443 | 11.25 | 107 | 159 |
10 | 3 | solid | 0.03 | 0.76 | 0.045 | 1.14 | 0.429 | 10.90 | 135 | 201 |
10 | 4 | 7strand | 0.03 | 0.76 | 0.045 | 1.14 | 0.514 | 13.06 | 185 | 275 |
10 | 7 | 7strand | 0.03 | 0.76 | 0.06 | 1.52 | 0.648 | 16.46 | 321 | 478 |
8 | 2 | solid | 0.03 | 0.76 | 0.045 | 1.14 | 0.475 | 12.07 | 146 | 217 |
8 | 2 | 19strand | 0.03 | 0.76 | 0.045 | 1.14 | 0.505 | 12.83 | 150 | 223 |
8 | 3 | 19strand | 0.03 | 0.76 | 0.045 | 1.14 | 0.508 | 12.90 | 195 | 290 |
8 | 7 | solid | 0.03 | 0.76 | 0.06 | 1.52 | 0.696 | 17.68 | 454 | 675 |
