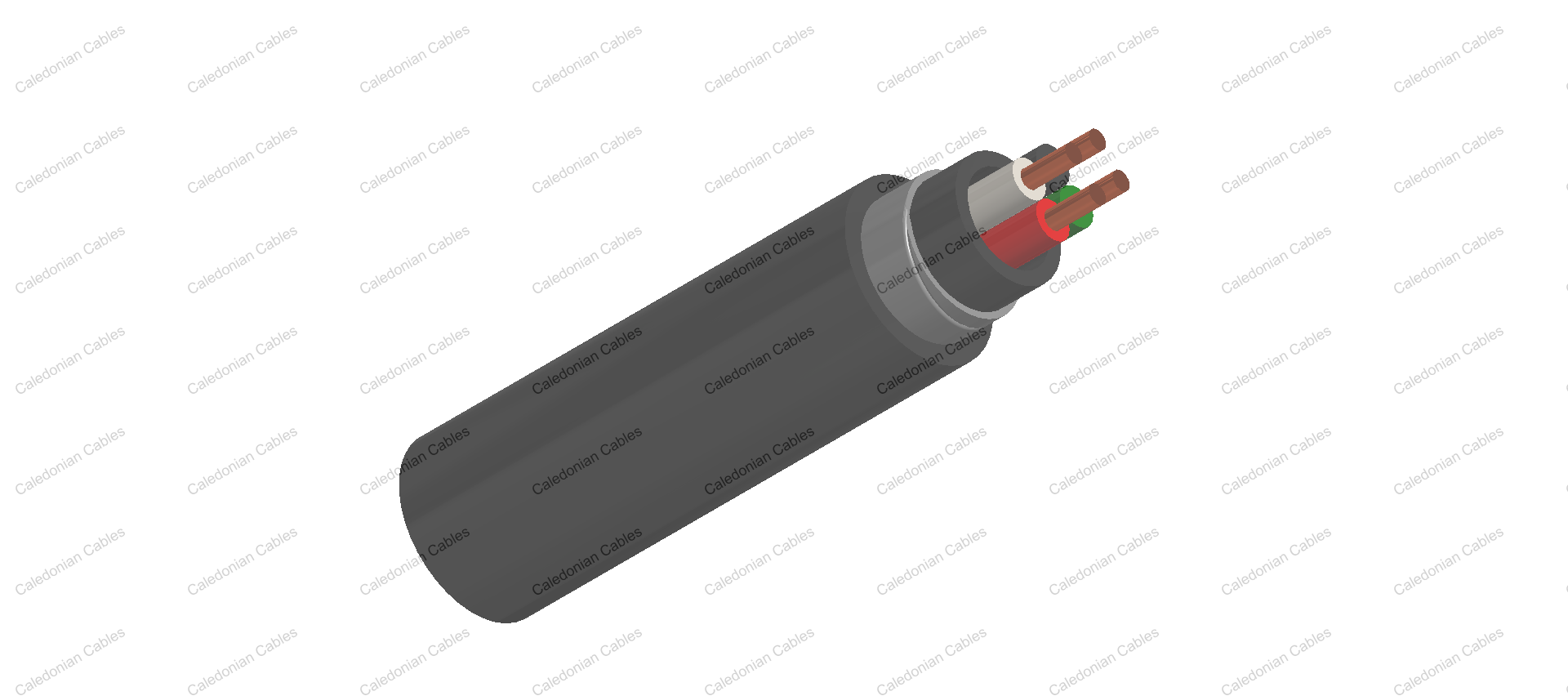

    IMSA 19-5/20-5(Traffic Signal Cable)

    • IMSA 19-5/20-5
    • IMSA 19-5/20-5
    • IMSA 19-5/20-5
    • IMSA 19-5/20-5

    Application and Description :

    These cables are designed for use in severe service in underground conduit or as aerial cable supported by a messenger or for direct earth burial either as fire protective signaling cable or as a traffic signaling cable.

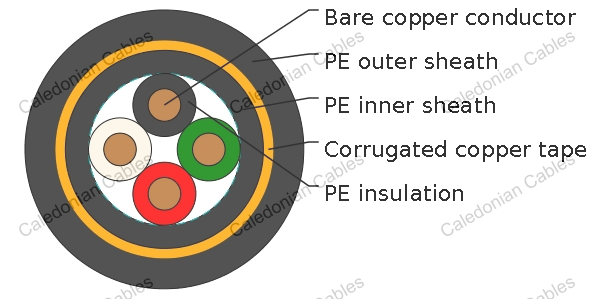

    Cable Construction:

    - Conductor: Solid bare copper per ASTM B-3(stranded copper is optional)
    - Insulation: Polyethylene(PE)
    - Inner sheath: Polyethylene(PE)
    - Shield: Corrugated copper tape- 15% minimum overlap
    -Outer sheath: IMSA 19-5-Black Polyvinyl chloride (PVC)/
    IMSA 20-5-Black Polyethylene(PE)

    Color Code :

    CONDUCTOR NO. INSULATION
    COLOR
    STRIPE
    COLOR
    CONDUCTOR NO. INSULATION
    COLOR
    STRIPE
    COLOR
    1 Black 14 Green White
    2 White 15 Blue White
    3 Red 16 Black Red
    4 Green 17 White Red
    5 Orange 18 Orange Red
    6 Blue 19 Blue Red
    7 White Black 20 Red Green
    8 Red Black 21 Orange Green
    9 Green Black 22 Black
    10 Orange Black 23 White
    11 Blue Black 24 Red
    12 Black White 25 Green
    13 Red White

    Temperature Rating:

    75°C

    Voltage Rating:

    600 V

    Cable Parameter :

    AWG NO.
    OF
    PAIRS
    SOLID OR STRANDED INSULATION THICKNESS INNER SHEATH THICKNESS OUTER SHEATH THICKNESS OVERALL DIAMETER CABLE WEIGHT
    INCHES MM INCHES MM INCHES MM INCHES MM LBS./ KFT KG/KM
    14 4 Solid 0.030 0.76 0.045 1.14 0.06 1.52 0.57 14.48 168 250
    14 7 Solid 0.030 0.76 0.045 1.14 0.06 1.52 0.63 16.00 205 305
    14 12 Solid 0.030 0.76 0.045 1.14 0.06 1.52 0.78 19.81 345 513
    12 4 Solid 0.025 0.64 0.045 1.14 0.06 1.52 0.63 16.00 194 289
    12 7 Solid 0.025 0.64 0.045 1.14 0.06 1.52 0.75 19.05 289 430
    12 12 Solid 0.025 0.64 0.045 1.14 0.06 1.52 0.94 23.88 468 696
