These IMSA 19-1 Traffic Signal highway Cables are suitable for outdoor or indoor use in traffic signal, traffic control systems, fire alarm systems, underground conduit and aerial use with messenger. Rated for 600 Volts 75°C wet or dry locations.

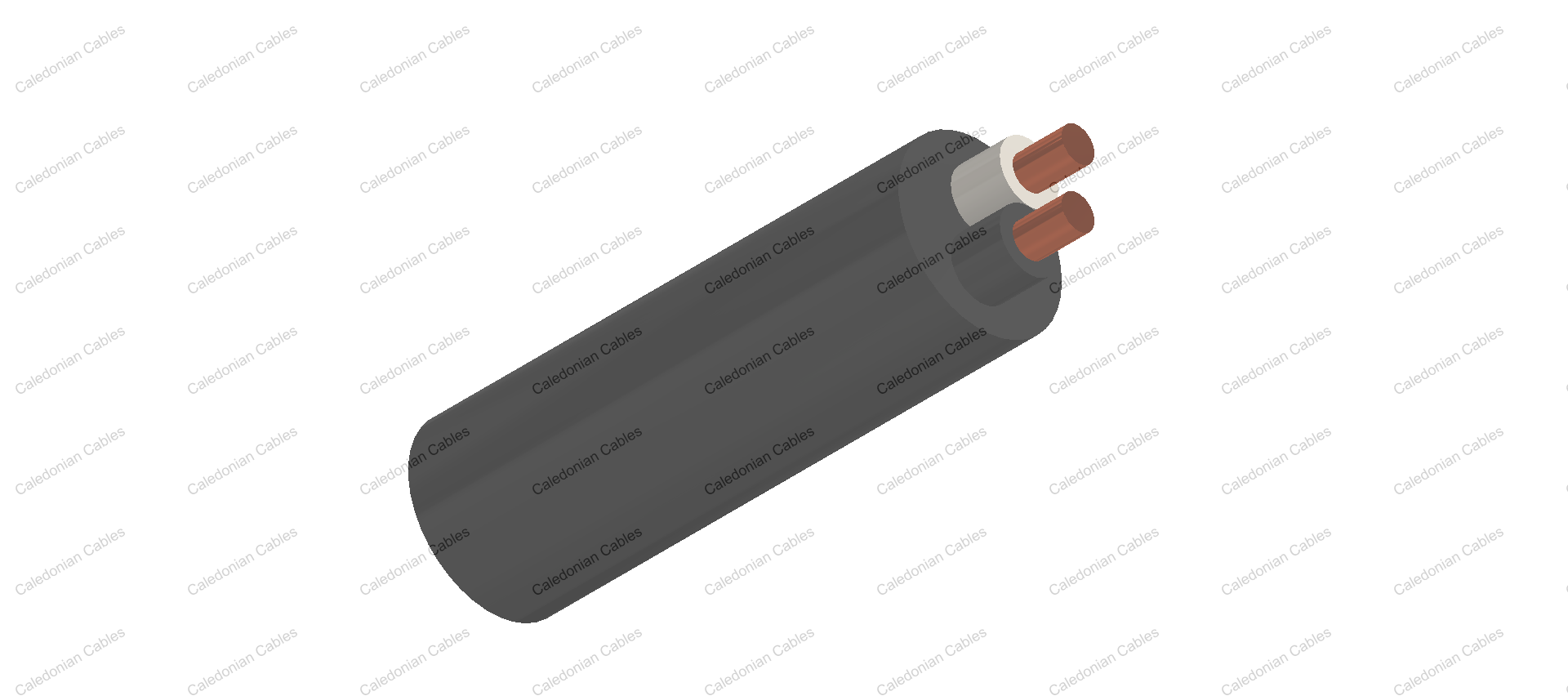

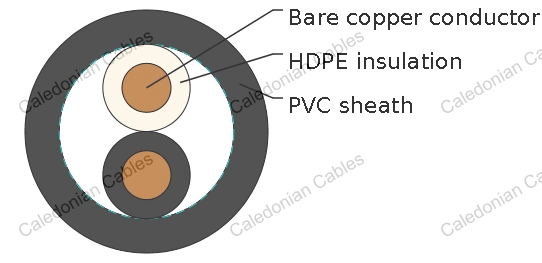

- Conductor: Solid bare copper per ASTM B-3 or stranded bare copper per ASTM B-8, & B-174
- Insulation: High density polyethylene (HDPE)
- Sheath: Black polyvinyl chloride (PVC)
CONDUCTOR NO. |
INSULATION COLOR | STRIPE COLOR |
CONDUCTOR NO. |
INSULATION COLOR | Stripe Color |
---|---|---|---|---|---|
1 | Black | – | 14 | Green | White |
2 | White | – | 15 | Blue | White |
3 | Red | – | 16 | Black | Red |
4 | Green | – | 17 | White | Red |
5 | Orange | – | 18 | Orange | Red |
6 | Blue | – | 19 | Blue | Red |
7 | White | Black | 20 | Red | Green |
8 | Red | Black | 21 | Orange | Green |
9 | Green | Black | 22 | Black | – |
10 | Orange | Black | 23 | White | – |
11 | Blue | Black | 24 | Red | – |
12 | Black | White | 25 | Green | – |
13 | Red | White |
75°C
600 V
AWG | NO. OF CONDUCTOR |
SOLID OR STRANDED | INSULATION THICKNESS | SHEATH THICKNESS | OVERALL DIAMETER | CABLE WEIGHT | ||||
---|---|---|---|---|---|---|---|---|---|---|
INCHES | MM | INCHES | MM | INCHES | MM | LBS./ KFT | KG/KM | |||
14 | 2 | solid | 0.025 | 0.64 | 0.045 | 1.14 | 0.325 | 8.26 | 58 | 86 |
14 | 2 | 7strand | 0.025 | 0.64 | 0.045 | 1.14 | 0.341 | 8.66 | 63 | 94 |
14 | 3 | solid | 0.025 | 0.64 | 0.045 | 1.14 | 0.342 | 8.69 | 75 | 112 |
14 | 3 | 7strand | 0.025 | 0.64 | 0.045 | 1.14 | 0.357 | 9.07 | 81 | 121 |
14 | 4 | solid | 0.025 | 0.64 | 0.045 | 1.14 | 0.372 | 9.45 | 94 | 140 |
14 | 4 | 7strand | 0.025 | 0.64 | 0.045 | 1.14 | 0.389 | 9.89 | 98 | 146 |
14 | 5 | solid | 0.025 | 0.64 | 0.045 | 1.14 | 0.406 | 10.31 | 113 | 168 |
14 | 5 | 7strand | 0.025 | 0.64 | 0.045 | 1.14 | 0.42 | 10.67 | 113 | 168 |
14 | 7 | solid | 0.025 | 0.64 | 0.045 | 1.14 | 0.44 | 11.18 | 146 | 217 |
14 | 7 | 7strand | 0.025 | 0.64 | 0.045 | 1.14 | 0.464 | 11.79 | 154 | 229 |
14 | 9 | solid | 0.025 | 0.64 | 0.045 | 1.14 | 0.511 | 12.98 | 186 | 277 |
14 | 9 | 7strand | 0.025 | 0.64 | 0.06 | 1.52 | 0.571 | 14.50 | 212 | 315 |
14 | 10 | solid | 0.025 | 0.64 | 0.06 | 1.52 | 0.586 | 14.88 | 220 | 327 |
14 | 10 | 7strand | 0.025 | 0.64 | 0.06 | 1.52 | 0.586 | 14.88 | 227 | 338 |
14 | 11 | 7strand | 0.025 | 0.64 | 0.06 | 1.52 | 0.618 | 15.70 | 250 | 372 |
14 | 12 | solid | 0.025 | 0.64 | 0.06 | 1.52 | 0.603 | 15.31 | 254 | 378 |
14 | 12 | 7strand | 0.025 | 0.64 | 0.06 | 1.52 | 0.636 | 16.15 | 267 | 397 |
14 | 14 | 7strand | 0.025 | 0.64 | 0.06 | 1.52 | 0.668 | 16.97 | 304 | 452 |
14 | 15 | solid | 0.025 | 0.64 | 0.06 | 1.52 | 0.667 | 16.94 | 311 | 463 |
14 | 15 | 7strand | 0.025 | 0.64 | 0.06 | 1.52 | 0.704 | 17.88 | 328 | 488 |
14 | 16 | solid | 0.025 | 0.64 | 0.06 | 1.52 | 0.667 | 16.94 | 325 | 484 |
14 | 16 | 7strand | 0.025 | 0.64 | 0.06 | 1.52 | 0.704 | 17.88 | 341 | 507 |
14 | 19 | solid | 0.025 | 0.64 | 0.06 | 1.52 | 0.701 | 17.81 | 375 | 558 |
14 | 19 | 7strand | 0.025 | 0.64 | 0.06 | 1.52 | 0.741 | 18.82 | 393 | 585 |
14 | 20 | solid | 0.025 | 0.64 | 0.06 | 1.52 | 0.737 | 18.72 | 395 | 588 |
14 | 20 | 7strand | 0.025 | 0.64 | 0.06 | 1.52 | 0.779 | 19.79 | 415 | 617 |
14 | 21 | 7strand | 0.025 | 0.64 | 0.06 | 1.52 | 0.779 | 19.79 | 432 | 643 |
14 | 25 | solid | 0.025 | 0.64 | 0.06 | 1.52 | 0.796 | 20.22 | 478 | 711 |
14 | 25 | 7strand | 0.025 | 0.64 | 0.08 | 1.52 | 0.918 | 23.32 | 544 | 809 |
12 | 2 | solid | 0.03 | 0.76 | 0.045 | 1.14 | 0.382 | 9.70 | 58 | 86 |
12 | 2 | 7strand | 0.03 | 0.76 | 0.045 | 1.14 | 0.397 | 10.08 | 87 | 129 |
12 | 3 | solid | 0.03 | 0.76 | 0.045 | 1.14 | 0.398 | 10.11 | 108 | 161 |
12 | 3 | 7strand | 0.03 | 0.76 | 0.045 | 1.14 | 0.42 | 10.67 | 113 | 168 |
12 | 4 | solid | 0.03 | 0.76 | 0.045 | 1.14 | 0.439 | 11.15 | 135 | 201 |
12 | 4 | 7strand | 0.03 | 0.76 | 0.045 | 1.14 | 0.459 | 11.66 | 141 | 210 |
12 | 5 | solid | 0.03 | 0.76 | 0.045 | 1.14 | 0.48 | 12.19 | 163 | 243 |
12 | 5 | 7strand | 0.03 | 0.76 | 0.045 | 1.14 | 0.503 | 12.78 | 172 | 256 |
12 | 7 | solid | 0.03 | 0.76 | 0.06 | 1.52 | 0.555 | 14.10 | 237 | 353 |
12 | 7 | 7strand | 0.03 | 0.76 | 0.06 | 1.52 | 0.579 | 14.71 | 244 | 363 |
12 | 9 | solid | 0.03 | 0.76 | 0.06 | 1.52 | 0.64 | 16.26 | 281 | 418 |
12 | 9 | 7strand | 0.03 | 0.76 | 0.06 | 1.52 | 0.673 | 17.09 | 310 | 461 |
12 | 10 | 7strand | 0.03 | 0.76 | 0.06 | 1.52 | 0.726 | 18.44 | 338 | 503 |
12 | 12 | solid | 0.03 | 0.76 | 0.06 | 1.52 | 0.711 | 18.06 | 372 | 553 |
12 | 12 | 7strand | 0.03 | 0.76 | 0.06 | 1.52 | 0.753 | 19.13 | 393 | 585 |
12 | 16 | solid | 0.03 | 0.76 | 0.06 | 1.52 | 0.793 | 20.14 | 449 | 668 |
12 | 19 | 7strand | 0.03 | 0.76 | 0.08 | 2.03 | 0.918 | 23.32 | 625 | 930 |
12 | 20 | solid | 0.03 | 0.76 | 0.08 | 2.03 | 0.922 | 23.42 | 631 | 939 |
10 | 2 | solid | 0.031 | 0.79 | 0.045 | 1.14 | 0.421 | 10.70 | 110 | 164 |
10 | 2 | 7strand | 0.031 | 0.79 | 0.045 | 1.14 | 0.443 | 11.25 | 118 | 176 |
10 | 3 | solid | 0.031 | 0.79 | 0.045 | 1.14 | 0.445 | 11.30 | 150 | 223 |
10 | 3 | 7strand | 0.031 | 0.79 | 0.045 | 1.14 | 0.469 | 11.91 | 155 | 231 |
10 | 4 | 7strand | 0.031 | 0.79 | 0.06 | 1.52 | 0.542 | 13.77 | 216 | 321 |
10 | 5 | 7strand | 0.031 | 0.79 | 0.06 | 1.52 | 0.596 | 15.14 | 263 | 391 |
