Product application

As connection cable for submersible electric motors (pumps) for the permanent use in process and drinking water up to a temperature of 70°C. In addition DIN VDE 0298 T.300 has to be respected.

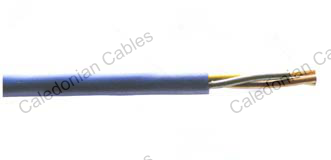

Construction

• Fine stranded bare copper conductor
• EPR outer sheath
• EPR insulation

Technical

• Characteristics at 20oC:
• Rated voltage : 600/1000V
• Maximum admissible operating voltage:
• in 1 ph and 3 ph systems : 720 / 1200V
• in D C systems : 1800 V
• conductor resistance to DIN / VDE 0295
• Test voltage 50Hz, 5 min : 2500 V
• Temperature range:
• Maximum admissible conductor
• Temperature in operation 90°C
• Short circuit temperature 250°C
• Fixed : -40oC up to + 80°C
• In motion : -25oC up to + 80°C
• Tensile stress : maximum 15 N each sqmm conductor cross section

Properties

• Adapted to DIN VDE 0250 and DIN VDE 0282
• Excellent insulation properties in water
• Very low water absorption
• Preservation of the mechanical strength
