    TFE Insulated Thermocouple Wire and Extension Wire

    Product application

    TFE Thermocouple Wire may be used for aircraft and petroleum processing.

    Construction

    • Solid or stranded thermocouple wire
    • Fused TFE tape insulation
    • Parallel conductors
    • Flame retardant extruded fluoropolymer TFE jacket

    Technical

    • Continuous temperature rating:260°C
    • Minimum Bend Radius: insulation 3 x cable O
    • Limits of Error: Conforms to ASTM E230, IEC 584, and ANSI MC 96.1
    • Color Code: Conforms to ANSI, IEC, JIS

    Properties

    • Excellent abrasion, chemical and moisture resistance
    • Service temperature of 260 o C
    • Low friction factor when pulled
    • Flame retardant; non-propagating in fire conditions

    Product specification

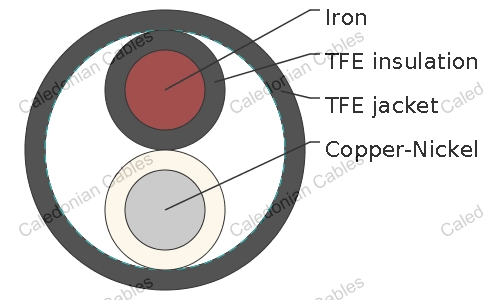

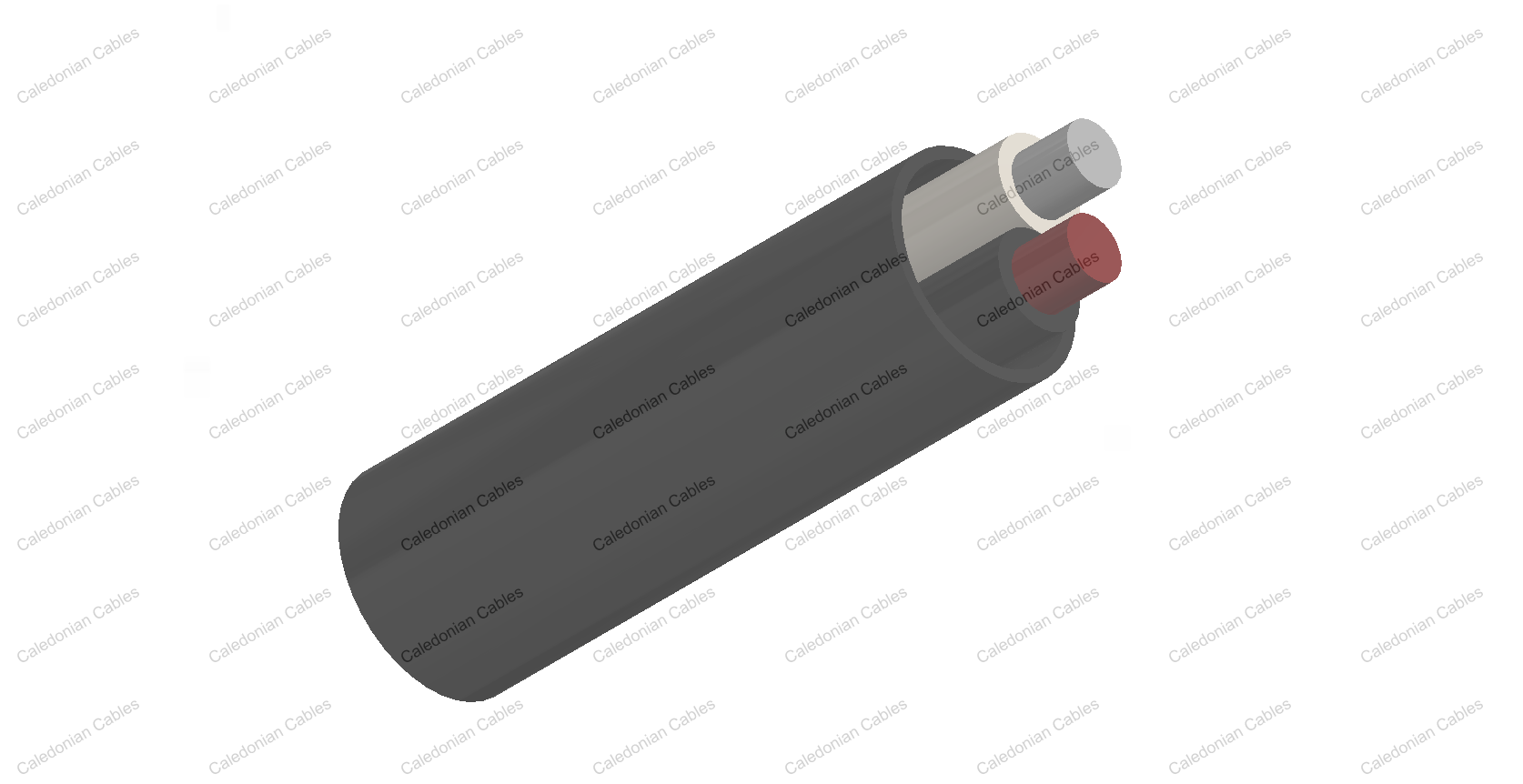

    TFE Insulated Type J Thermocouple Wire

    Iron/Constantan TFE Thermocouple Wire 260°C

    AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
    Insulation Jacket O.D.
    26 0.406 0.152 0.203 1.12*1.83 6
    24 0.508 0.152 0.203 1.19*1.95 7.5
    24S*(7/32) 0.61 0.152 0.203 1.24*2.13 8.9
    20 0.813 0.152 0.203 1.55*2.69 16.4
    20S*(7/28) 0.965 0.152 0.203 1.63*2.84 17.9
    18 1.02 0.152 0.203 1.73*3.05 23.8
    18S*(7/26) 1.22 0.152 0.203 1.93*3.45 26.8
    16 1.29 0.254 0.203 2.21*4.01 37.3
    16S*(7/24) 1.52 0.254 0.203 2.44*4.47 40.2



    TFE Insulated Extension Grade Type JX Thermocouple Wire

    Iron/Constantan TFE Thermocouple Wire 260°C - Extension Grade

    AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
    Insulation Jacket O.D.
    26 0.406 0.152 0.203 1.12*1.83 6
    24 0.508 0.152 0.203 1.19*1.95 7.5
    24S*(7/32) 0.61 0.152 0.203 1.24*2.13 8.9
    20 0.813 0.152 0.203 1.55*2.69 16.4
    20S*(7/28) 0.965 0.152 0.203 1.63*2.84 17.9
    18 1.02 0.152 0.203 1.73*3.05 23.8
    18S*(7/26) 1.22 0.152 0.203 1.93*3.45 26.8
    16 1.29 0.254 0.203 2.21*4.01 37.3
    16S*(7/24) 1.52 0.254 0.203 2.44*4.47 40.2



    TFE Insulated Type K Thermocouple Wire

    Chromel/Alumel TFE Thermocouple Wire 260°C

    AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
    Insulation Jacket O.D.
    26 0.406 0.152 0.203 1.12*1.83 6
    24 0.508 0.152 0.203 1.19*1.95 7.5
    24S*(7/32) 0.61 0.152 0.203 1.24*2.13 8.9
    20 0.813 0.152 0.203 1.55*2.69 16.4
    20S*(7/28) 0.965 0.152 0.203 1.63*2.84 17.9
    18 1.02 0.152 0.203 1.73*3.05 23.8
    18S*(7/26) 1.22 0.152 0.203 1.93*3.45 26.8
    16 1.29 0.254 0.203 2.21*4.01 37.3
    16S*(7/24) 1.52 0.254 0.203 2.44*4.47 40.2



    TFE Insulated Extension Grade Type KX Thermocouple Wire

    Chromel/Alumel TFE Thermocouple Wire 260°C - Extension Grade

    AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
    Insulation Jacket O.D.
    26 0.406 0.152 0.203 1.12*1.83 6
    24 0.508 0.152 0.203 1.19*1.95 7.5
    24S*(7/32) 0.61 0.152 0.203 1.24*2.13 8.9
    20 0.813 0.152 0.203 1.55*2.69 16.4
    20S*(7/28) 0.965 0.152 0.203 1.63*2.84 17.9
    18 1.02 0.152 0.203 1.73*3.05 23.8
    18S*(7/26) 1.22 0.152 0.203 1.93*3.45 26.8
    16 1.29 0.254 0.203 2.21*4.01 37.3
    16S*(7/24) 1.52 0.254 0.203 2.44*4.47 40.2



    TFE Insulated Type T Thermocouple Wire

    Copper/Constantan TFE Thermocouple Wire 260°C

    AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
    Insulation Jacket O.D.
    26 0.406 0.152 0.203 1.12*1.83 6
    24 0.508 0.152 0.203 1.19*1.95 7.5
    24S*(7/32) 0.61 0.152 0.203 1.24*2.13 8.9
    20 0.813 0.152 0.203 1.55*2.69 16.4
    20S*(7/28) 0.965 0.152 0.203 1.63*2.84 17.9
    18 1.02 0.152 0.203 1.73*3.05 23.8
    18S*(7/26) 1.22 0.152 0.203 1.93*3.45 26.8
    16 1.29 0.254 0.203 2.21*4.01 37.3
    16S*(7/24) 1.52 0.254 0.203 2.44*4.47 40.2



    TFE Insulated Extension Grade Type TX Thermocouple Wire

    Copper/Constantan TFE Thermocouple Wire 260°C - Extension Grade

    AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
    Insulation Jacket O.D.
    26 0.406 0.152 0.203 1.12*1.83 6
    24 0.508 0.152 0.203 1.19*1.95 7.5
    24S*(7/32) 0.61 0.152 0.203 1.24*2.13 8.9
    20 0.813 0.152 0.203 1.55*2.69 16.4
    20S*(7/28) 0.965 0.152 0.203 1.63*2.84 17.9
    18 1.02 0.152 0.203 1.73*3.05 23.8
    18S*(7/26) 1.22 0.152 0.203 1.93*3.45 26.8
    16 1.29 0.254 0.203 2.21*4.01 37.3
    16S*(7/24) 1.52 0.254 0.203 2.44*4.47 40.2



    TFE Insulated Type E Thermocouple Wire

    Chromel/Constantan TFE Thermocouple Wire 260°C

    AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
    Insulation Jacket O.D.
    26 0.406 0.152 0.203 1.12*1.83 6
    24 0.508 0.152 0.203 1.19*1.95 7.5
    24S*(7/32) 0.61 0.152 0.203 1.24*2.13 8.9
    20 0.813 0.152 0.203 1.55*2.69 16.4
    20S*(7/28) 0.965 0.152 0.203 1.63*2.84 17.9
    18 1.02 0.152 0.203 1.73*3.05 23.8
    18S*(7/26) 1.22 0.152 0.203 1.93*3.45 26.8
    16 1.29 0.254 0.203 2.21*4.01 37.3
    16S*(7/24) 1.52 0.254 0.203 2.44*4.47 40.2



    TFE Insulated Extension Grade Type EX Thermocouple Wire

    Chromel/Constantan TFE Thermocouple Wire 260°C - Extension Grade

    AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
    Insulation Jacket O.D.
    26 0.406 0.152 0.203 1.12*1.83 6
    24 0.508 0.152 0.203 1.19*1.95 7.5
    24S*(7/32) 0.61 0.152 0.203 1.24*2.13 8.9
    20 0.813 0.152 0.203 1.55*2.69 16.4
    20S*(7/28) 0.965 0.152 0.203 1.63*2.84 17.9
    18 1.02 0.152 0.203 1.73*3.05 23.8
    18S*(7/26) 1.22 0.152 0.203 1.93*3.45 26.8
    16 1.29 0.254 0.203 2.21*4.01 37.3
    16S*(7/24) 1.52 0.254 0.203 2.44*4.47 40.2



    TFE Insulated Type N Thermocouple Wire

    Nicrosil/Nisil TFE Thermocouple Wire 260°C

    AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
    Insulation Jacket O.D.
    26 0.406 0.152 0.203 1.12*1.83 6
    24 0.508 0.152 0.203 1.19*1.95 7.5
    24S*(7/32) 0.61 0.152 0.203 1.24*2.13 8.9
    20 0.813 0.152 0.203 1.55*2.69 16.4
    20S*(7/28) 0.965 0.152 0.203 1.63*2.84 17.9
    18 1.02 0.152 0.203 1.73*3.05 23.8
    18S*(7/26) 1.22 0.152 0.203 1.93*3.45 26.8
    16 1.29 0.254 0.203 2.21*4.01 37.3
    16S*(7/24) 1.52 0.254 0.203 2.44*4.47 40.2



    TFE Insulated Extension Grade Type NX Thermocouple Wire

    Nicrosil/Nisil TFE Thermocouple Wire 260°C - Extension Grade

    AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
    Insulation Jacket O.D.
    26 0.406 0.152 0.203 1.12*1.83 6
    24 0.508 0.152 0.203 1.19*1.95 7.5
    24S*(7/32) 0.61 0.152 0.203 1.24*2.13 8.9
    20 0.813 0.152 0.203 1.55*2.69 16.4
    20S*(7/28) 0.965 0.152 0.203 1.63*2.84 17.9
    18 1.02 0.152 0.203 1.73*3.05 23.8
    18S*(7/26) 1.22 0.152 0.203 1.93*3.45 26.8
    16 1.29 0.254 0.203 2.21*4.01 37.3
    16S*(7/24) 1.52 0.254 0.203 2.44*4.47 40.2
