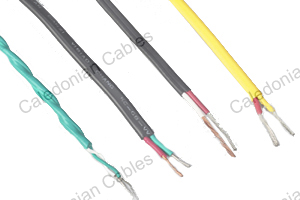

    PVC Single Pair Thermocouple Wire (105°C)

    Product application

    PVC Single Pair Thermocouple Wire is rated for use in cable tray conduit or direct burial applications

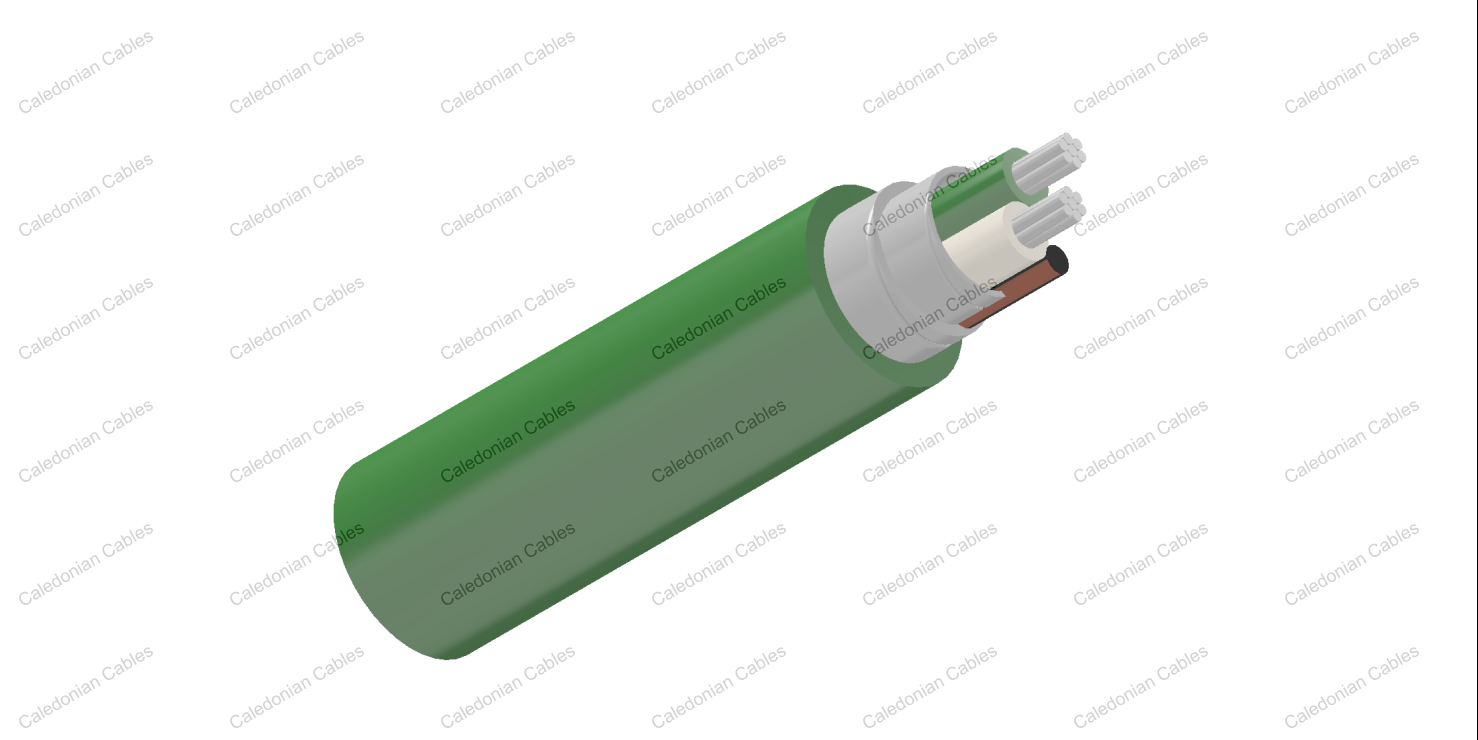

    Construction

    • Solid or stranded thermocouple alloy
    • Extruded high temperature 105°C PVC insulation
    • When twisted shielded pair construction (SF), 100% aluminum-polyester tape with drain.
    • Extruded PVC jacket

    Technical

    • Continuous temperature rating:105°C
    • Minimum Bend Radius: insulation 3 x cable O,overall 5 x cable O
    • Limits of Error: Conforms to ASTM E230, IEC 584, and ANSI MC 96.1
    • Color Code: Conforms to ANSI, IEC, JIS

    Properties

    • Good dielectric mechanical strength and flexibility
    • Service temperature up 105°C
    • Good resistance to water, abrasion, oil and chemicals
    • Economical, general use
    • Rated for use in cable tray conduit or direct burial applications

    Product specification:

    Solid Conductor, Parallel Pair

    AWG Strand Insulation Thickness mm O.D.
    mm    		 Gross Weight
    kg/km
    Primary Jacket
    20 Solid 0.254 0.508 2.34/3.66 21
    16 Solid 0.381 0.508 3.23/5.13 40
    14 Solid 0.432 0.635 3.76/6.25 57
    20 Solid 0.254 0.508 2.34/3.66 21
    16 Solid 0.381 0.508 3.23/5.13 40
    14 Solid 0.432 0.635 3.76/6.25 57



    Stranded Conductor, Parallel Pair

    AWG Strand Insulation Thickness mm O.D.
    mm    		 Gross Weight
    kg/km
    Primary Jacket
    20 7/28 0.305 0.508 2.62/4.23 21
    16 7/24 0.381 0.508 3.23/5.51 43
    20 7/28 0.305 0.508 2.62/4.23 21
    16 7/24 0.381 0.508 3.23/5.51 43



    Solid Conductor, Shielded Pair

    AWG Strand Insulation Thickness mm O.D.
    mm    		 Gross Weight
    kg/km
    Primary Jacket
    20 Solid 0.254 0.508 3.912 21
    16 Solid 0.381 0.584 5.385 40
    20 Solid 0.254 0.508 3.912 21
    16 Solid 0.381 0.584 5.385 40



    Stranded Conductor, Shielded Pair

    AWG Strand Insulation Thickness mm O.D.
    mm    		 Gross Weight
    kg/km
    Primary Jacket
    20 7/28 0.305 0.508 4.47 24
    16 7/24 0.406 0.584 5.69 43
    20 7/28 0.305 0.508 4.47 24
    16 7/24 0.406 0.584 5.69 43



    Stranded with Filler

    AWG Strand Insulation Thickness mm O.D.
    mm    		 Gross Weight
    kg/km
    Primary Jacket
    20 7/28 0.305 0.508 4.572 24
    16 7/24 0.406 0.584 5.842 43
    20 7/28 0.305 0.508 4.572 24
    16 7/24 0.406 0.584 5.842 43
