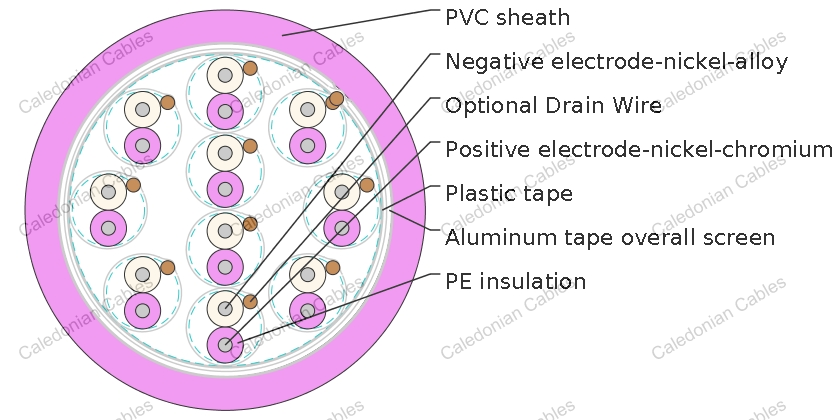

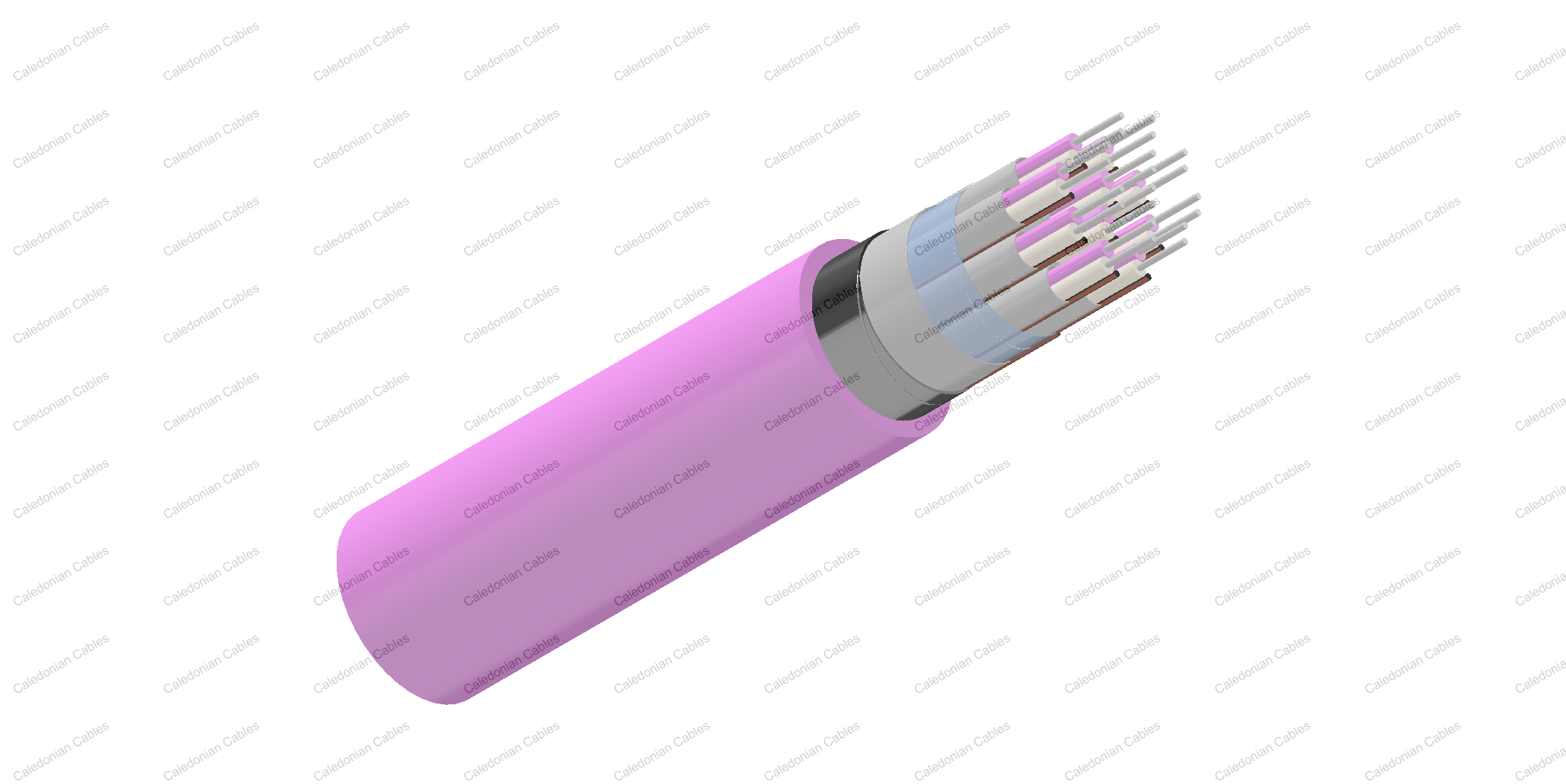

    PVC Multi Pair Thermocouple Wire (105°C)

    Product application

    PVC multi Pair Thermocouple Wire is rated for use in cable tray conduit or direct burial applications

    Construction

    • 20 gauge solid thermocouple alloy.
    • Extruded high temperature 105°C PVC insulation.
    • Color coded twisted pairs, numbered sequentially for easy identification.
    • Matched pairs are twisted to reduce the amount of electromagnetic interference.
    • Flame retardant PVC jacket with ripcord.
    • On individually shielded pairs the shields are isolated from each other.

    Technical

    • Continuous temperature rating:105°C
    • Minimum Bend Radius: insulation 3 x cable O,overall 5 x cable O
    • Limits of Error: Conforms to ASTM E230, IEC 584, and ANSI MC 96.1
    • Color Code: Conforms to ANSI, IEC, JIS

    Properties

    • Allows a multiple of sensors to be connected to associated instrumentation
    • Good resistance to weather, moisture, oils, alkalies, and mechanical abrasion
    • PVC offers high dielectric
    • Maximum noise rejection with overall shield
    • Transmission of telephone or other signal with communications wire in core
    • Non-propagating, flame retardant

    Product specification:

    Multi Pair Extension Cable With Overall Shield

    AWG Strand Number of Pairs Thickness of Jacket mm O.D. mm Gross Weight kg/km
    20 Solid 4 1.016 9.042 100
    20 Solid 6 1.27 10.82 144
    20 Solid 8 1.27 11.76 179
    20 Solid 12 1.27 13.665 243
    20 Solid 16 1.27 15.748 324
    20 Solid 20 1.524 16.358 385
    20 Solid 24 1.524 18.44 455
    20 Solid 36 1.524 20.777 631
    20 Solid 50 1.778 24.282 867
    20 Solid 8 1.27 11.76 179
    20 Solid 6 1.27 10.82 144
    20 Solid 50 1.778 24.282 867
    20 Solid 4 1.016 9.042 100
    20 Solid 36 1.524 20.777 631
    20 Solid 24 1.524 18.44 455
    20 Solid 20 1.524 16.358 385
    20 Solid 16 1.27 15.748 324
    20 Solid 12 1.27 13.665 243



    Multi Pair Extension Cable With Individually Shielded Pairs

    AWG Strand Number of Pairs Thickness of Jacket mm O.D. mm Gross Weight kg/km
    20 Solid 4 1.27 10.668 135
    20 Solid 6 1.27 12.573 186
    20 Solid 8 1.27 13.589 231
    20 Solid 12 1.524 16.51 339
    20 Solid 16 1.524 18.161 430
    20 Solid 20 1.524 19.558 513
    20 Solid 24 1.524 21.717 598
    20 Solid 36 1.778 24.638 863
    20 Solid 50 1.778 28.829 1158
    20 Solid 8 1.27 13.589 231
    20 Solid 6 1.27 12.573 186
    20 Solid 50 1.778 28.829 1158
    20 Solid 4 1.27 10.668 135
    20 Solid 36 1.778 24.638 863
    20 Solid 24 1.524 21.717 598
    20 Solid 20 1.524 19.558 513
    20 Solid 16 1.524 18.161 430
    20 Solid 12 1.524 16.51 339
