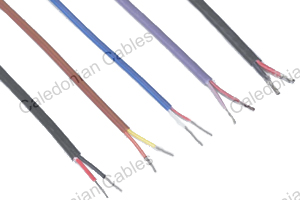

    PFA Insulated Thermocouple Wire and Extension Wire

    Product application

    PFA Thermocouple Wire may be used for general use extension wire.

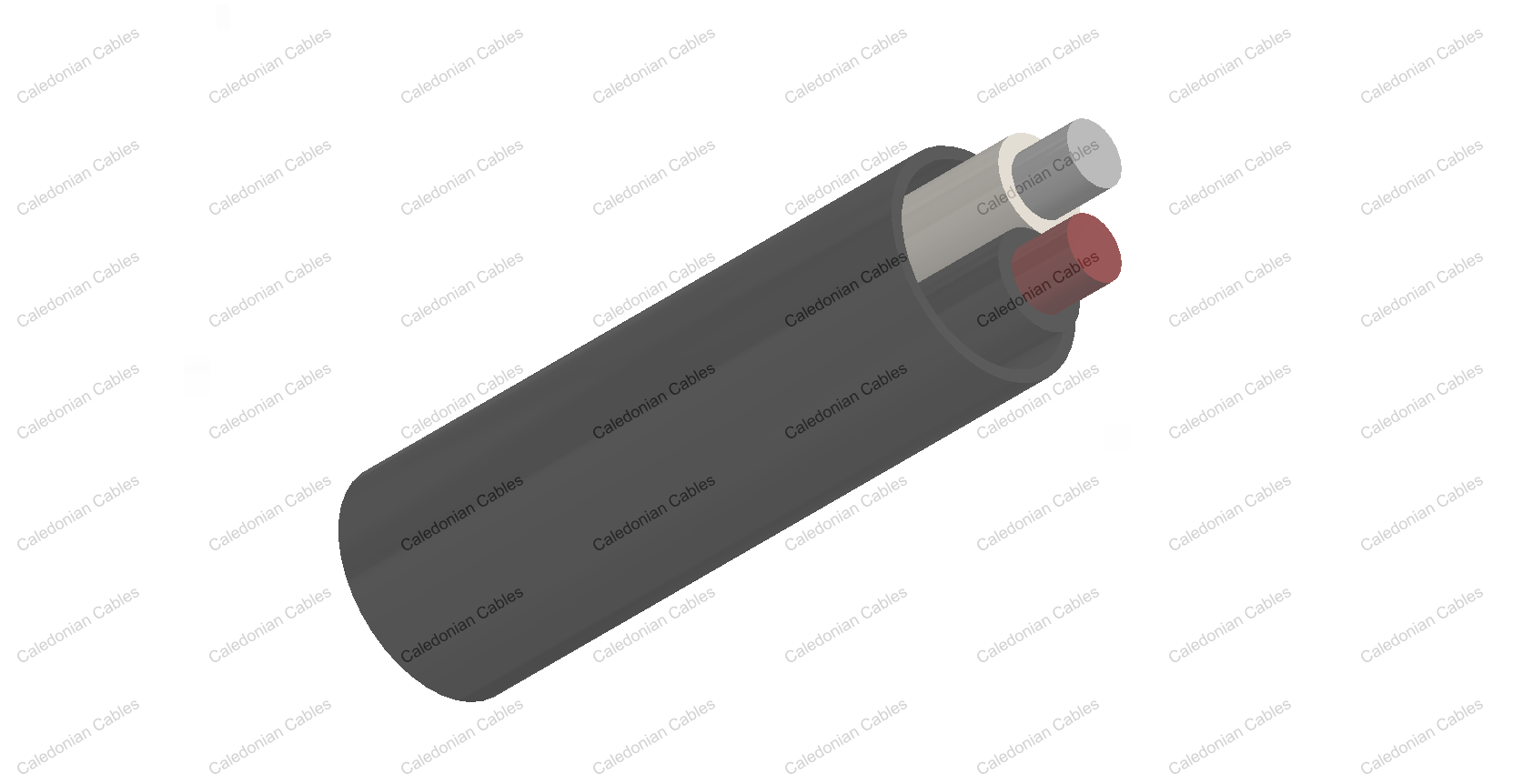

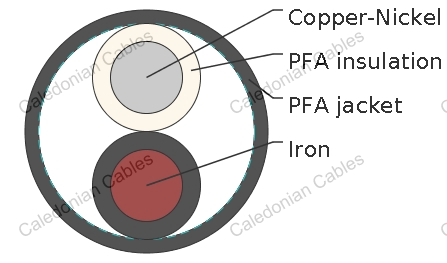

    Construction

    • Solid or stranded thermocouple wire
    • Flame retardant extruded fluoropolymer PFA insulation
    • Parallel conductors
    • Flame retardant extruded fluoropolymer PFA jacket
    • Tinned Copper

    Technical

    • Continuous temperature rating:260°C
    • Minimum Bend Radius: insulation 3 x cable O overall 5 x cable O
    • Limits of Error: Conforms to ASTM E230, IEC 584, and ANSI MC 96.1
    • Color Code: Conforms to ANSI, IEC, JIS

    Properties

    • Excellent abrasion, chemical and moisture resistance
    • Service temperature of 260 o C
    • Low friction factor when pulled

    Product specification

    PFA-Insulated Type J Thermocouple Wire

    Iron/Constantan PFA Thermocouple Wire 260°C

    AWG Nominal Conductor Diameter
     mm    		 Nominal Thickness mm Gross
    Weight
    kg/km
    Insulation Jacket O.D.
    14 1.63 0.2 0.25 2.6 x 4.8 51
    16 1.29 0.2 0.25 2.2 x 3.9 33
    16S* 1.47 0.2 0.25 2.4 x 4.3 36
    18 1.02 0.2 0.25 1.9 x 3.4 22
    20 0.81 0.2 0.15 1.7 x 2.9 16
    20S* 0.97 0.2 0.15 1.8 x 3.1 18
    22 0.64 0.2 0.15 1.5 x 2.6 11
    24 0.51 0.2 0.15 1.4 x 2.3 8.5
    24S* 0.61 0.2 0.15 1.6 x 2.7 9.2
    26 0.41 0.2 0.15 1.3 x 2.1 6.5
    28 0.32 0.2 0.15 1.2 x 2.0 5.5
    30 0.25 0.2 0.15 1.2 x 1.8 4.5



    PFA-Insulated Type J Thermocouple Wire - Extension Grade

    Iron/Constantan PFA Thermocouple Wire 260°C - Extension Grade

    AWG Nominal Conductor Diameter
     mm    		 Nominal Thickness mm Gross
    Weight
    kg/km
    Insulation Jacket O.D.
    14 1.63 0.2 0.25 2.6 x 4.8 51
    16 1.29 0.2 0.25 2.2 x 3.9 33
    16S* 1.47 0.2 0.25 2.4 x 4.3 36
    18 1.02 0.2 0.25 1.9 x 3.4 22
    20 0.81 0.2 0.15 1.7 x 2.9 16
    20S* 0.97 0.2 0.15 1.8 x 3.1 18
    22 0.64 0.2 0.15 1.5 x 2.6 11
    24 0.51 0.2 0.15 1.4 x 2.3 8.5
    24S* 0.61 0.2 0.15 1.6 x 2.7 9.2
    26 0.41 0.2 0.15 1.3 x 2.1 6.5
    28 0.32 0.2 0.15 1.2 x 2.0 5.5
    30 0.25 0.2 0.15 1.2 x 1.8 4.5



    PFA-Insulated Type K Thermocouple Wire

    Chromel/Alumel PFA Thermocouple Wire260°C

    AWG Nominal Conductor Diameter
     mm    		 Nominal Thickness mm Gross
    Weight
    kg/km
    Insulation Jacket O.D.
    14 1.63 0.2 0.25 2.6 x 4.8 51
    16 1.29 0.2 0.25 2.2 x 3.9 33
    16S* 1.47 0.2 0.25 2.4 x 4.3 36
    18 1.02 0.2 0.25 1.9 x 3.4 22
    20 0.81 0.2 0.15 1.7 x 2.9 16
    20S* 0.97 0.2 0.15 1.8 x 3.1 18
    22 0.64 0.2 0.15 1.5 x 2.6 11
    24 0.51 0.2 0.15 1.4 x 2.3 8.5
    24S* 0.61 0.2 0.15 1.6 x 2.7 9.2
    26 0.41 0.2 0.15 1.3 x 2.1 6.5
    28 0.32 0.2 0.15 1.2 x 2.0 5.5
    30 0.25 0.2 0.15 1.2 x 1.8 4.5



    PFA-Insulated Type K Thermocouple Wire - Extension Grade

    Chromel/Alumel PFA Thermocouple Wire 260°C - Extension Grade

    AWG Nominal Conductor Diameter
     mm    		 Nominal Thickness mm Gross
    Weight
    kg/km
    Insulation Jacket O.D.
    14 1.63 0.2 0.25 2.6 x 4.8 51
    16 1.29 0.2 0.25 2.2 x 3.9 33
    16S* 1.47 0.2 0.25 2.4 x 4.3 36
    18 1.02 0.2 0.25 1.9 x 3.4 22
    20 0.81 0.2 0.15 1.7 x 2.9 16
    20S* 0.97 0.2 0.15 1.8 x 3.1 18
    22 0.64 0.2 0.15 1.5 x 2.6 11
    24 0.51 0.2 0.15 1.4 x 2.3 8.5
    24S* 0.61 0.2 0.15 1.6 x 2.7 9.2
    26 0.41 0.2 0.15 1.3 x 2.1 6.5
    28 0.32 0.2 0.15 1.2 x 2.0 5.5
    30 0.25 0.2 0.15 1.2 x 1.8 4.5



    PFA-Insulated Type T Thermocouple Wire

    Copper/Constantan PFA Thermocouple Wire 260°C

    AWG Nominal Conductor Diameter
     mm    		 Nominal Thickness mm Gross
    Weight
    kg/km
    Insulation Jacket O.D.
    14 1.63 0.2 0.25 2.6 x 4.8 51
    16 1.29 0.2 0.25 2.2 x 3.9 33
    16S* 1.47 0.2 0.25 2.4 x 4.3 36
    18 1.02 0.2 0.25 1.9 x 3.4 22
    20 0.81 0.2 0.15 1.7 x 2.9 16
    20S* 0.97 0.2 0.15 1.8 x 3.1 18
    22 0.64 0.2 0.15 1.5 x 2.6 11
    24 0.51 0.2 0.15 1.4 x 2.3 8.5
    24S* 0.61 0.2 0.15 1.6 x 2.7 9.2
    26 0.41 0.2 0.15 1.3 x 2.1 6.5
    28 0.32 0.2 0.15 1.2 x 2.0 5.5
    30 0.25 0.2 0.15 1.2 x 1.8 4.5



    PFA-Insulated Type T Thermocouple Wire - Extension Grade

    Copper/Constantan PFA Thermocouple Wire 260°C - Extension Grade

    AWG Nominal Conductor Diameter
     mm    		 Nominal Thickness mm Gross
    Weight
    kg/km
    Insulation Jacket O.D.
    14 1.63 0.2 0.25 2.6 x 4.8 51
    16 1.29 0.2 0.25 2.2 x 3.9 33
    16S* 1.47 0.2 0.25 2.4 x 4.3 36
    18 1.02 0.2 0.25 1.9 x 3.4 22
    20 0.81 0.2 0.15 1.7 x 2.9 16
    20S* 0.97 0.2 0.15 1.8 x 3.1 18
    22 0.64 0.2 0.15 1.5 x 2.6 11
    24 0.51 0.2 0.15 1.4 x 2.3 8.5
    24S* 0.61 0.2 0.15 1.6 x 2.7 9.2
    26 0.41 0.2 0.15 1.3 x 2.1 6.5
    28 0.32 0.2 0.15 1.2 x 2.0 5.5
    30 0.25 0.2 0.15 1.2 x 1.8 4.5



    PFA-Insulated Type E Thermocouple Wire

    Chromel/Constantan PFA Thermocouple Wire 260°C

    AWG Nominal Conductor Diameter
     mm    		 Nominal Thickness mm Gross
    Weight
    kg/km
    Insulation Jacket O.D.
    14 1.63 0.2 0.25 2.6 x 4.8 51
    16 1.29 0.2 0.25 2.2 x 3.9 33
    16S* 1.47 0.2 0.25 2.4 x 4.3 36
    18 1.02 0.2 0.25 1.9 x 3.4 22
    20 0.81 0.2 0.15 1.7 x 2.9 16
    20S* 0.97 0.2 0.15 1.8 x 3.1 18
    22 0.64 0.2 0.15 1.5 x 2.6 11
    24 0.51 0.2 0.15 1.4 x 2.3 8.5
    24S* 0.61 0.2 0.15 1.6 x 2.7 9.2
    26 0.41 0.2 0.15 1.3 x 2.1 6.5
    28 0.32 0.2 0.15 1.2 x 2.0 5.5
    30 0.25 0.2 0.15 1.2 x 1.8 4.5



    PFA-Insulated Type E Thermocouple Wire - Extension Grade

    Chromel/Constantan PFA Thermocouple Wire 260°C - Extension Grade

    AWG Nominal Conductor Diameter
     mm    		 Nominal Thickness mm Gross
    Weight
    kg/km
    Insulation Jacket O.D.
    14 1.63 0.2 0.25 2.6 x 4.8 51
    16 1.29 0.2 0.25 2.2 x 3.9 33
    16S* 1.47 0.2 0.25 2.4 x 4.3 36
    18 1.02 0.2 0.25 1.9 x 3.4 22
    20 0.81 0.2 0.15 1.7 x 2.9 16
    20S* 0.97 0.2 0.15 1.8 x 3.1 18
    22 0.64 0.2 0.15 1.5 x 2.6 11
    24 0.51 0.2 0.15 1.4 x 2.3 8.5
    24S* 0.61 0.2 0.15 1.6 x 2.7 9.2
    26 0.41 0.2 0.15 1.3 x 2.1 6.5
    28 0.32 0.2 0.15 1.2 x 2.0 5.5
    30 0.25 0.2 0.15 1.2 x 1.8 4.5



    PFA-Insulated Type N Thermocouple Wire

    Nicrosil/Nisil PFA Thermocouple Wire 260°C

    AWG Nominal Conductor Diameter
     mm    		 Nominal Thickness mm Gross
    Weight
    kg/km
    Insulation Jacket O.D.
    14 1.63 0.2 0.25 2.6 x 4.8 51
    16 1.29 0.2 0.25 2.2 x 3.9 33
    16S* 1.47 0.2 0.25 2.4 x 4.3 36
    18 1.02 0.2 0.25 1.9 x 3.4 22
    20 0.81 0.2 0.15 1.7 x 2.9 16
    20S* 0.97 0.2 0.15 1.8 x 3.1 18
    22 0.64 0.2 0.15 1.5 x 2.6 11
    24 0.51 0.2 0.15 1.4 x 2.3 8.5
    24S* 0.61 0.2 0.15 1.6 x 2.7 9.2
    26 0.41 0.2 0.15 1.3 x 2.1 6.5
    28 0.32 0.2 0.15 1.2 x 2.0 5.5
    30 0.25 0.2 0.15 1.2 x 1.8 4.5



    PFA-Insulated Type N Thermocouple Wire - Extension Grade

    Nicrosil/Nisil PFA Thermocouple Wire 260°C - Extension Grade

    AWG Nominal Conductor Diameter
     mm    		 Nominal Thickness mm Gross
    Weight
    kg/km
    Insulation Jacket O.D.
    14 1.63 0.2 0.25 2.6 x 4.8 51
    16 1.29 0.2 0.25 2.2 x 3.9 33
    16S* 1.47 0.2 0.25 2.4 x 4.3 36
    18 1.02 0.2 0.25 1.9 x 3.4 22
    20 0.81 0.2 0.15 1.7 x 2.9 16
    20S* 0.97 0.2 0.15 1.8 x 3.1 18
    22 0.64 0.2 0.15 1.5 x 2.6 11
    24 0.51 0.2 0.15 1.4 x 2.3 8.5
    24S* 0.61 0.2 0.15 1.6 x 2.7 9.2
    26 0.41 0.2 0.15 1.3 x 2.1 6.5
    28 0.32 0.2 0.15 1.2 x 2.0 5.5
    30 0.25 0.2 0.15 1.2 x 1.8 4.5
