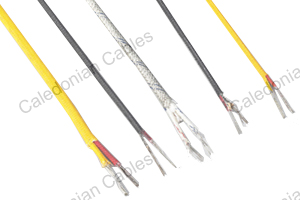

    Fiberglass Insulated Thermocouple Wire and Extension Wire

    Product application

    Fiberglass Thermocouple Wire is ideal for general applications requiring moderate abrasion, moisture resistance, and wide temperature capabilities

    Construction

    • Solid or stranded thermocouple wire
    • Braided fiberglass insulation
    • Parallel conductors
    • Tinned Copper
    • Braided fiberglass jacket

    Technical

    • Continuous temperature rating: 400°C
    • Minimum Bend Radius: insulation 3 x cable O
    • Limits of Error: Conforms to ASTM E230, IEC 584, and ANSI MC 96.1
    • Color Code: Conforms to ANSI, IEC, JIS

    Properties

    • Good thermal durability and tensile strength
    • Service temperature up to 400°C
    • Good dielectric and electrical characteristics
    • Braided fiberglass insulation for abrasion resistance
    • Braided fiberglass jacket for additional flexibility and abrasion resistance

    Product specification

    Fiberglass Type K Thermocouple Wire

    Chromel/Alumel Fiberglass Thermocouple Wire Type K

    AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
    Insulation Jacket O.D.
    14 1.63 0.18 0.25 2.5 x 4.6 43
    16 1.29 0.18 0.25 2.2 x 3.8 30
    16S* 1.47 0.18 0.25 2.4 x 4.3 33
    18 1.02 0.18 0.25 1.8 x 3.2 19
    20 0.81 0.15 0.15 1.4 x 2.5 11
    20S* 0.97 0.15 0.15 1.5 x 2.7 12
    22 0.64 0.15 0.15 1.2 x 2.2 8
    24 0.51 0.15 0.15 1.0 x 1.7 4.8
    24S* 0.61 0.15 0.15 1.2 x 2.1 5.1
    26 0.41 0.11 0.15 0.9 x 1.5 3.3
    28 0.32 0.11 0.15 0.8 x 1.4 2.5
    30 0.25 0.11 0.15 0.8 x 1.2 1.9



    Fiberglass Type K Thermocouple Wire Extension Grade

    Chromel/Alumel Fiberglass Thermocouple Wire Type K

    AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
    Insulation Jacket O.D.
    14 1.63 0.18 0.25 2.5 x 4.6 43
    16 1.29 0.18 0.25 2.2 x 3.8 30
    16S* 1.47 0.18 0.25 2.4 x 4.3 33
    18 1.02 0.18 0.25 1.8 x 3.2 19
    20 0.81 0.15 0.15 1.4 x 2.5 11
    20S* 0.97 0.15 0.15 1.5 x 2.7 12
    22 0.64 0.15 0.15 1.2 x 2.2 8
    24 0.51 0.15 0.15 1.0 x 1.7 4.8
    24S* 0.61 0.15 0.15 1.2 x 2.1 5.1
    26 0.41 0.11 0.15 0.9 x 1.5 3.3
    28 0.32 0.11 0.15 0.8 x 1.4 2.5
    30 0.25 0.11 0.15 0.8 x 1.2 1.9



    Fiberglass Type J Thermocouple Wire

    Iron/Constantan Fiberglass Thermocouple Wire Type J

    AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
    Insulation Jacket O.D.
    14 1.63 0.18 0.25 2.5 x 4.6 43
    16 1.29 0.18 0.25 2.2 x 3.8 30
    16S* 1.47 0.18 0.25 2.4 x 4.3 33
    18 1.02 0.18 0.25 1.8 x 3.2 19
    20 0.81 0.15 0.15 1.4 x 2.5 11
    20S* 0.97 0.15 0.15 1.5 x 2.7 12
    22 0.64 0.15 0.15 1.2 x 2.2 8
    24 0.51 0.15 0.15 1.0 x 1.7 4.8
    24S* 0.61 0.15 0.15 1.2 x 2.1 5.1
    26 0.41 0.11 0.15 0.9 x 1.5 3.3
    28 0.32 0.11 0.15 0.8 x 1.4 2.5
    30 0.25 0.11 0.15 0.8 x 1.2 1.9



    Fiberglass Type J Thermocouple Wire Extension Grade

    Iron/Constantan Fiberglass Thermocouple Wire Type J

    AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
    Insulation Jacket O.D.
    14 1.63 0.18 0.25 2.5 x 4.6 43
    16 1.29 0.18 0.25 2.2 x 3.8 30
    16S* 1.47 0.18 0.25 2.4 x 4.3 33
    18 1.02 0.18 0.25 1.8 x 3.2 19
    20 0.81 0.15 0.15 1.4 x 2.5 11
    20S* 0.97 0.15 0.15 1.5 x 2.7 12
    22 0.64 0.15 0.15 1.2 x 2.2 8
    24 0.51 0.15 0.15 1.0 x 1.7 4.8
    24S* 0.61 0.15 0.15 1.2 x 2.1 5.1
    26 0.41 0.11 0.15 0.9 x 1.5 3.3
    28 0.32 0.11 0.15 0.8 x 1.4 2.5
    30 0.25 0.11 0.15 0.8 x 1.2 1.9



    Fiberglass Type T Thermocouple Wire

    Copper/Constantan Fiberglass Thermocouple Wire Type T

    AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
    Insulation Jacket O.D.
    14 1.63 0.18 0.25 2.5 x 4.6 43
    16 1.29 0.18 0.25 2.2 x 3.8 30
    16S* 1.47 0.18 0.25 2.4 x 4.3 33
    18 1.02 0.18 0.25 1.8 x 3.2 19
    20 0.81 0.15 0.15 1.4 x 2.5 11
    20S* 0.97 0.15 0.15 1.5 x 2.7 12
    22 0.64 0.15 0.15 1.2 x 2.2 8
    24 0.51 0.15 0.15 1.0 x 1.7 4.8
    24S* 0.61 0.15 0.15 1.2 x 2.1 5.1
    26 0.41 0.11 0.15 0.9 x 1.5 3.3
    28 0.32 0.11 0.15 0.8 x 1.4 2.5
    30 0.25 0.11 0.15 0.8 x 1.2 1.9



    Fiberglass Type T Thermocouple Wire Extension Grade

    Copper/Constantan Fiberglass Thermocouple Wire Type T

    AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
    Insulation Jacket O.D.
    14 1.63 0.18 0.25 2.5 x 4.6 43
    16 1.29 0.18 0.25 2.2 x 3.8 30
    16S* 1.47 0.18 0.25 2.4 x 4.3 33
    18 1.02 0.18 0.25 1.8 x 3.2 19
    20 0.81 0.15 0.15 1.4 x 2.5 11
    20S* 0.97 0.15 0.15 1.5 x 2.7 12
    22 0.64 0.15 0.15 1.2 x 2.2 8
    24 0.51 0.15 0.15 1.0 x 1.7 4.8
    24S* 0.61 0.15 0.15 1.2 x 2.1 5.1
    26 0.41 0.11 0.15 0.9 x 1.5 3.3
    28 0.32 0.11 0.15 0.8 x 1.4 2.5
    30 0.25 0.11 0.15 0.8 x 1.2 1.9



    Fiberglass Type E Thermocouple Wire

    Chromel/Constantan Fiberglass Thermocouple Wire Type E

    AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
    Insulation Jacket O.D.
    14 1.63 0.18 0.25 2.5 x 4.6 43
    16 1.29 0.18 0.25 2.2 x 3.8 30
    16S* 1.47 0.18 0.25 2.4 x 4.3 33
    18 1.02 0.18 0.25 1.8 x 3.2 19
    20 0.81 0.15 0.15 1.4 x 2.5 11
    20S* 0.97 0.15 0.15 1.5 x 2.7 12
    22 0.64 0.15 0.15 1.2 x 2.2 8
    24 0.51 0.15 0.15 1.0 x 1.7 4.8
    24S* 0.61 0.15 0.15 1.2 x 2.1 5.1
    26 0.41 0.11 0.15 0.9 x 1.5 3.3
    28 0.32 0.11 0.15 0.8 x 1.4 2.5
    30 0.25 0.11 0.15 0.8 x 1.2 1.9



    Fiberglass Type E Thermocouple Wire Extension Grade

    Chromel/Constantan Fiberglass Thermocouple Wire Type E

    AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
    Insulation Jacket O.D.
    14 1.63 0.18 0.25 2.5 x 4.6 43
    16 1.29 0.18 0.25 2.2 x 3.8 30
    16S* 1.47 0.18 0.25 2.4 x 4.3 33
    18 1.02 0.18 0.25 1.8 x 3.2 19
    20 0.81 0.15 0.15 1.4 x 2.5 11
    20S* 0.97 0.15 0.15 1.5 x 2.7 12
    22 0.64 0.15 0.15 1.2 x 2.2 8
    24 0.51 0.15 0.15 1.0 x 1.7 4.8
    24S* 0.61 0.15 0.15 1.2 x 2.1 5.1
    26 0.41 0.11 0.15 0.9 x 1.5 3.3
    28 0.32 0.11 0.15 0.8 x 1.4 2.5
    30 0.25 0.11 0.15 0.8 x 1.2 1.9



    Fiberglass Type N Thermocouple Wire

    Nicrosil/Nisil Fiberglass Thermocouple Wire Type N

    AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
    Insulation Jacket O.D.
    14 1.63 0.18 0.25 2.5 x 4.6 43
    16 1.29 0.18 0.25 2.2 x 3.8 30
    16S* 1.47 0.18 0.25 2.4 x 4.3 33
    18 1.02 0.18 0.25 1.8 x 3.2 19
    20 0.81 0.15 0.15 1.4 x 2.5 11
    20S* 0.97 0.15 0.15 1.5 x 2.7 12
    22 0.64 0.15 0.15 1.2 x 2.2 8
    24 0.51 0.15 0.15 1.0 x 1.7 4.8
    24S* 0.61 0.15 0.15 1.2 x 2.1 5.1
    26 0.41 0.11 0.15 0.9 x 1.5 3.3
    28 0.32 0.11 0.15 0.8 x 1.4 2.5
    30 0.25 0.11 0.15 0.8 x 1.2 1.9



    Fiberglass Type N Thermocouple Wire Extension Grade

    Nicrosil/Nisil Fiberglass Thermocouple Wire Type N

    AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
    Insulation Jacket O.D.
    14 1.63 0.18 0.25 2.5 x 4.6 43
    16 1.29 0.18 0.25 2.2 x 3.8 30
    16S* 1.47 0.18 0.25 2.4 x 4.3 33
    18 1.02 0.18 0.25 1.8 x 3.2 19
    20 0.81 0.15 0.15 1.4 x 2.5 11
    20S* 0.97 0.15 0.15 1.5 x 2.7 12
    22 0.64 0.15 0.15 1.2 x 2.2 8
    24 0.51 0.15 0.15 1.0 x 1.7 4.8
    24S* 0.61 0.15 0.15 1.2 x 2.1 5.1
    26 0.41 0.11 0.15 0.9 x 1.5 3.3
    28 0.32 0.11 0.15 0.8 x 1.4 2.5
    30 0.25 0.11 0.15 0.8 x 1.2 1.9
