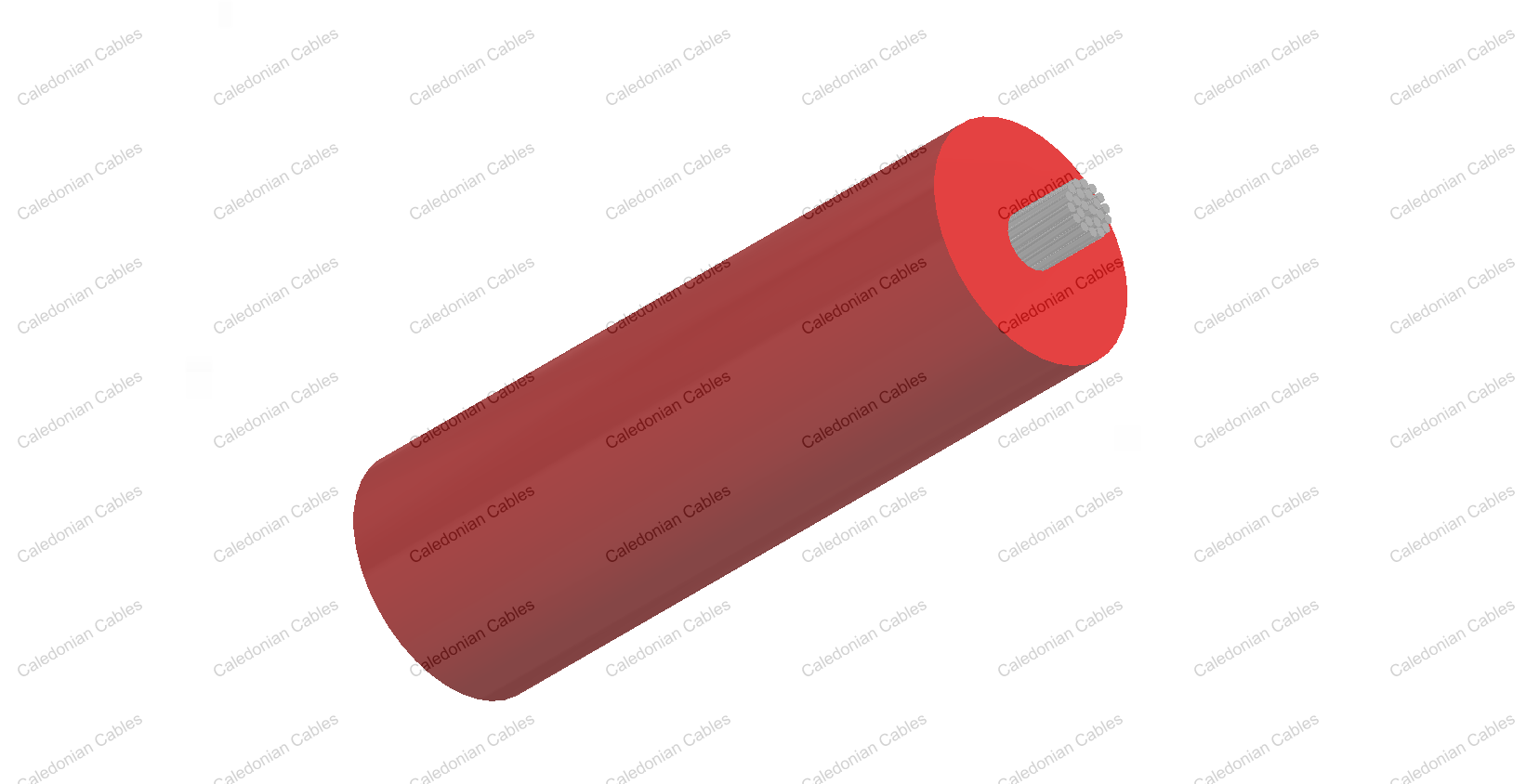

    3KV Silicone Rubber Insulation High Voltage Motor Lead Wire

    Product application

    Applicable for high temperature environment such as electronics and electrical equipment.

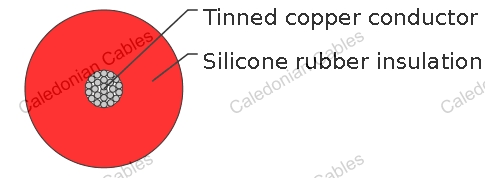

    Construction

    • Conductor: Tinned copper wire
    • Insulation: silicone rubber

    Technical

    • Working voltage: 3kV
    • Spark test: AC10KV/ 0.15 S
    • Vol. test: 9 KV/5 min
    • Temp range: -60 ℃ ~ +200 ℃
    • Tensile strength(Before aging): ≥5.0N/mm2
    • Elongation at break(Before aging): ≥150%
    • Tensile strength(After aging): ≥4.0N/mm2
    • Elongation at break(After aging): ≥120%

    Product specification

    No of Cores Section Conductor Structure Nominal Insulation thickness Nominal Wire OD
    mm2 No./mm mm mm
    1 0.75 24/0.20 2.0 5.15
    1 1.0 32/0.20 2.0 5.35
    1 1.5 30/0.25 2.2 6.0
    1 2.0 41/0.25 2.2 6.3
    1 2.5 49/0.25 2.4 6.8
    1 4 56/0.30 2.4 7.5
    1 6 84/0.30 2.6 8.5
    1 10 84/0.40 2.6 9.8
    1 16 126/0.40 2.8 11.4
    1 25 196/0.40 2.8 12.9
    1 35 276/0.40 2.8 14.2
    1 50 396/0.40 3.0 16.7
    1 70 360/0.50 3.0 18.4
    1 95 475/0.50 3.2 20.9
    1 120 608/0.50 3.2 22.4
    1 150 756/0.50 3.5 25.0
    1 185 925/0.50 3.5 27.0
    1 240 1221/0.50 3.5 30.0
