Applications

• Cable trays
• Conveyors
• Power distribution apparatus: switchgear, transformers, motor control centers
• Dust collectors/baghouses
• Cooling towers
• Warehouses/rack storage
• Mines
• Pipelines
• Bridges, piers, marine vessels
• Refrigerated storage
• Tank farms
• Aircraft hangars
• Computer rooms
Ideally suited to industrial high risk hazards as well as many types of commercial applications, Caledonian Linear Heat Detector has unique advantages over other types of detectors, especially when difficult installation factors or severe environmental conditions are present.
When used with a caledonian Firesystem Control Panel, the Detector will activate a display, showing the location of an overheat or fire condition anywhere along its length. The Detector also meets intrinsically safe standards and is FM Approved for Class I, II, or III, Div. 1, Applicable Groups A, B, C,D, E, F & G hazardous areas, when the appropriate control panel option is ordered.

Specifications

The caledonian heat detection cable consists of four distinct types of cable. Each designation identifies a specific outer jacket material which has unique characteristics that have been selected to accommodate the widest range of installation environments.
All specifications are subject to change without notice.

CCLV– Type CCLV consists of a durable flame retardant vinyl outer jacket. This series is best described as multi-purpose and is well suited to a wide range of both commercial and industrial applications. The outer jacket provides good all-around performance for most installations. It features low moisture absorption, resistance to many common chemicals, and excellent flexibility at low temperatures.

CCLVN– Type CCLVN utilizes a dual jacket consisting of an inner layer of vinyl with an outer film of black weather resistant 612 nylon. This cable is specifically designed for industrial applications such as conveyors, where abrasion resistance is of major importance. In general, the outer nylon sheath substantially improves the cable’s resistance to abrasion, some acids, aggressive salts, oils and petroleum products while maintaining good electrical and mechanical properties

CCLP– The CCLP series contains an extruded flame retardant jacket of polypropylene elastomer with a special UV stabilizer added to enhance weathering performance. It is intended for a wide range of industrial applications and is characterized by high resiliency, good abrasion resistance, excellent weathering properties and exceptional high temperature performance. CCLP provides better overall performance at higher ambient temperatures than either CCLV or CCLVN.

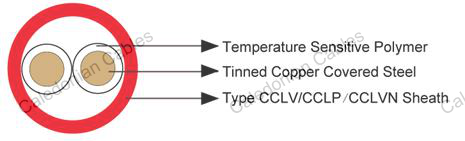

Cable Construction

Conductor：Tinned copper covered steel
Insulation：Temperature sensitive polymer
Sheath:Flame retardant outer sheath CCLV, CCLP,CCLVN.
Physical and Thermal Properties
Alarm Temperature Range: +45°C /113F to +185°C /365F
AmbientTemperature Range: -40°C / -40F to +125°C /+257F
Minimum Bending Radius: 20×OD
Electrical Properties
Operating Voltage：24V DC
