Multicore cable with improved fire performance and very high resistance to temperature designed for internal wiring in lamps, heating appliances and distribution boxes in apparatus, mechanical and plant engineering, etc. Used for fixed and flexible application in dry, humid and wet rooms.

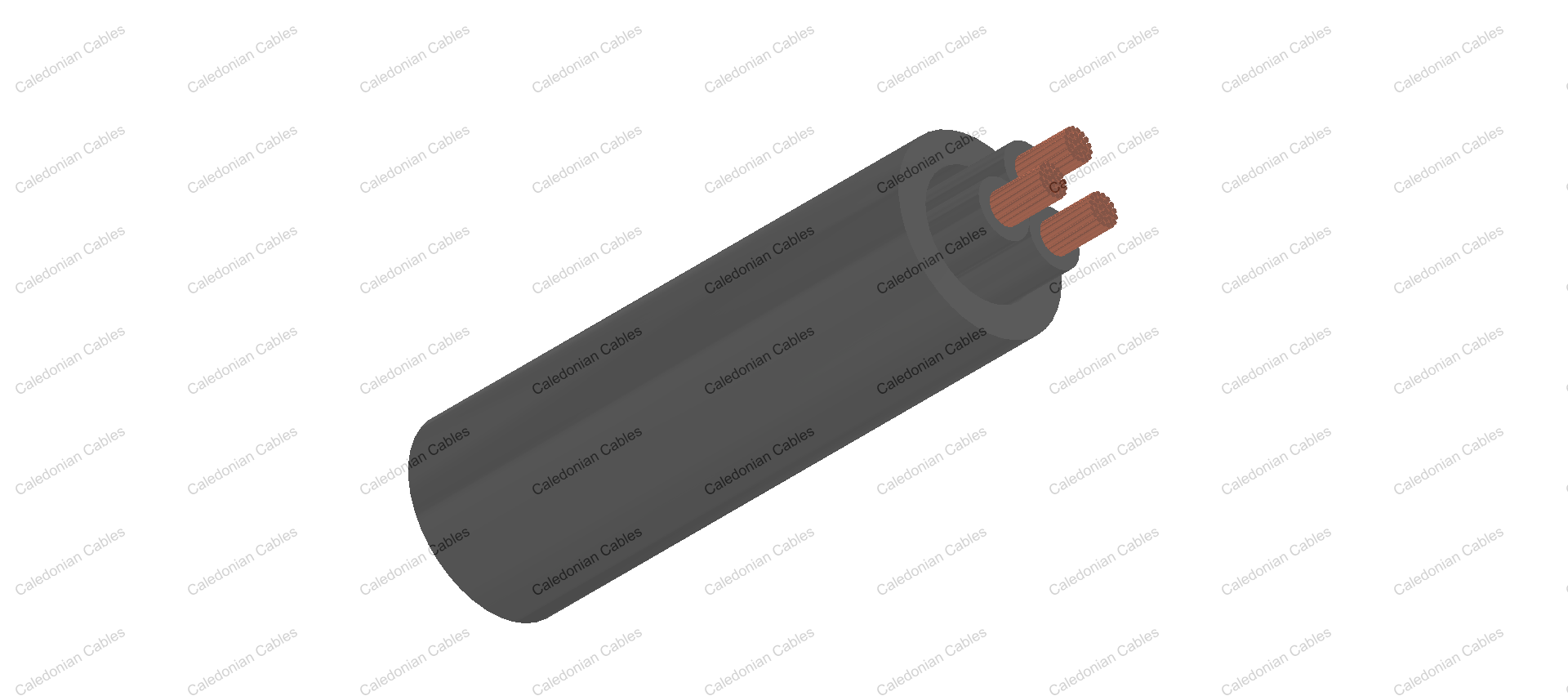

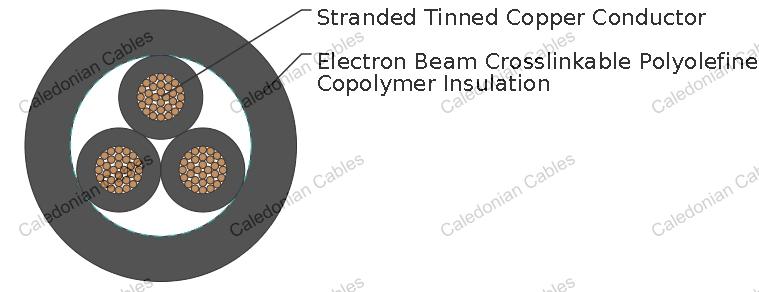

Conductors : Class 5 stranded tinned copper to IEC60228/VDE 0295.
Insulation : Electron beam crosslinkable polyolefine copolymer.
Sheath : Electron beam crosslinkable polyolefine copolymer.
| Nominal Conductor Cross Section | mm² | 0.50 | 0.75 | 1.0 | 1.5 | 2.5 | 4.0 | 6.0 | 10 | 16 | 25 | 35 | 50 | 70 | 95 |
| Maximum Conductor Resistance | Ω/km | 40.1 | 26.7 | 20.0 | 13.7 | 8.21 | 5.09 | 3.39 | 1.95 | 1.24 | 0.795 | 0.565 | 0.393 | 0.277 | 0.21 |
| Voltage Rating | KV | 300/500V (≤1mm²); 450/750V (≥1.5mm²) | |||||||||||||
Minimum Bending Radius : 4xOD (Static); 6xOD (Flexing)
Temperature Range : -55℃ ~+145℃ (Static); -40℃ ~+120℃ (Flexing)
Short Circuit Temperature : +280℃
| No. of cores& Nominal Conductor Cross Sectional Area | Number and Nominal Diameter of Strands | Nominal Insulation Thickness | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|
| No.×mm² | No./mm | mm | mm | kg/km |
| 2×0.5 | 19/0.18 | 0.5 | 5.1 | 38 |
| 3G0.5 | 19/0.18 | 0.5 | 5.5 | 46 |
| 4×(G)0.5 | 19/0.18 | 0.5 | 5.9 | 55 |
| 5G0.5 | 19/0.18 | 0.5 | 6.7 | 68 |
| 6G0.5 | 19/0.18 | 0.5 | 7.1 | 77 |
| 7G0.5 | 19/0.18 | 0.5 | 7.8 | 93 |
| 8G0.5 | 19/0.18 | 0.5 | 8.6 | 102 |
| 10G0.5 | 19/0.18 | 0.5 | 9.4 | 130 |
| 12G0.5 | 19/0.18 | 0.5 | 9.4 | 125 |
| 14G0.5 | 19/0.18 | 0.5 | 10.0 | 145 |
| 16G0.5 | 19/0.18 | 0.5 | 10.7 | 166 |
| 2×0.75 | 24/0.20 | 0.6 | 5.9 | 52 |
| 3G0.75 | 24/0.20 | 0.6 | 6.2 | 61 |
| 4×(G)0.75 | 24/0.20 | 0.6 | 6.9 | 75 |
| 5G0.75 | 24/0.20 | 0.6 | 7.7 | 94 |
| 6G0.75 | 24/0.20 | 0.6 | 8.3 | 107 |
| 7G0.75 | 24/0.20 | 0.6 | 9.1 | 127 |
| 8G0.75 | 24/0.20 | 0.6 | 10.2 | 144 |
| 10G0.75 | 24/0.20 | 0.6 | 11.1 | 186 |
| 14G0.75 | 24/0.20 | 0.6 | 11.7 | 203 |
| 16G0.75 | 24/0.20 | 0.6 | 12.5 | 233 |
| 1×1 | 32/0.20 | 0.6 | 3.9 | 25 |
| 2×1 | 32/0.20 | 0.6 | 6.3 | 50 |
| 3G1 | 32/0.20 | 0.6 | 6.8 | 67 |
| 4G1 | 32/0.20 | 0.6 | 7.4 | 87 |
| 5G1 | 32/0.20 | 0.6 | 8.4 | 107 |
| 6G1 | 32/0.20 | 0.6 | 8.9 | 124 |
| 7G1 | 32/0.20 | 0.6 | 10.2 | 152 |
| 8G1 | 32/0.20 | 0.6 | 11.0 | 177 |
| 10G1 | 32/0.20 | 0.6 | 12.1 | 222 |
| 14G1 | 32/0.20 | 0.6 | 12.7 | 252 |
| 16G1 | 32/0.20 | 0.6 | 13.6 | 290 |
| 19G1 | 32/0.20 | 0.6 | 15.1 | 338 |
| 21G1 | 32/0.20 | 0.6 | 16.0 | 380 |
| 24G1 | 32/0.20 | 0.6 | 17.1 | 437 |
| 25G1 | 32/0.20 | 0.6 | 17.1 | 468 |
| 27G1 | 32/0.20 | 0.6 | 17.1 | 497 |
| 30G1 | 32/0.20 | 0.6 | 17.7 | 514 |
| 33G1 | 32/0.20 | 0.6 | 18.9 | 582 |
| 37G1 | 32/0.20 | 0.6 | 20.3 | 714 |
| 1×1.5 | 30/0.25 | 0.6 | 4.3 | 32 |
| 2×1.5 | 30/0.25 | 0.6 | 7.8 | 89 |
| 3G1.5 | 30/0.25 | 0.6 | 9.1 | 106 |
| 4×(G)1.5 | 30/0.25 | 0.6 | 9.1 | 123 |
| 5G1.5 | 30/0.25 | 0.6 | 10.1 | 156 |
| 7G1.5 | 30/0.25 | 0.6 | 12.1 | 224 |
| 10G1.5 | 30/0.25 | 0.6 | 15.0 | 314 |
| 12G1.5 | 30/0.25 | 0.6 | 15.0 | 346 |
| 14G1.5 | 30/0.25 | 0.6 | 15.4 | 366 |
| 16G1.5 | 30/0.25 | 0.6 | 16.8 | 415 |
| 19G1.5 | 30/0.25 | 0.6 | 18.3 | 486 |
| 21G1.5 | 30/0.25 | 0.6 | 19.7 | 562 |
| 24G1.5 | 30/0.25 | 0.6 | 21.1 | 644 |
| 25G1.5 | 30/0.25 | 0.6 | 21.7 | 693 |
| 27G1.5 | 30/0.25 | 0.6 | 21.7 | 731 |
| 30G1.5 | 30/0.25 | 0.6 | 21.8 | 760 |
| 33G1.5 | 30/0.25 | 0.6 | 22.6 | 831 |
| 37G1.5 | 30/0.25 | 0.6 | 24.8 | 1032 |
| 1×2.5 | 48/0.25 | 0.7 | 5.0 | 45 |
| 2×2.5 | 48/0.25 | 0.7 | 9.1 | 102 |
| 3G2.5 | 48/0.25 | 0.7 | 9.9 | 145 |
| 4G2.5 | 48/0.25 | 0.7 | 10.9 | 189 |
| 5G2.5 | 48/0.25 | 0.7 | 12.2 | 235 |
| 6G2.5 | 48/0.25 | 0.7 | 13.2 | 288 |
| 7G2.5 | 48/0.25 | 0.7 | 14.6 | 344 |
| 8G2.5 | 48/0.25 | 0.7 | 15.7 | 379 |
| 10G2.5 | 48/0.25 | 0.7 | 17.7 | 482 |
| 12G2.5 | 48/0.25 | 0.7 | 18.7 | 483 |
| 14G2.5 | 48/0.25 | 0.7 | 19.0 | 572 |
| 16G2.5 | 48/0.25 | 0.7 | 20.1 | 651 |
| 19G2.5 | 48/0.25 | 0.7 | 20.7 | 765 |
| 21G2.5 | 48/0.25 | 0.7 | 23.7 | 857 |
| 24G2.5 | 48/0.25 | 0.7 | 25.8 | 984 |
| 25G2.5 | 48/0.25 | 0.7 | 25.8 | 1121 |
| 27G2.5 | 48/0.25 | 0.7 | 25.8 | 1069 |
| 30G2.5 | 48/0.25 | 0.7 | 26.7 | 1175 |
| 33G2.5 | 48/0.25 | 0.7 | 28.0 | 1301 |
| 37G2.5 | 48/0.25 | 0.7 | 30.6 | 1599 |
| 1×4 | 56/0.30 | 0.8 | 5.6 | 62 |
| 2×4 | 56/0.30 | 0.8 | 10.2 | 161 |
| 3G4 | 56/0.30 | 0.8 | 10.9 | 217 |
| 4G4 | 56/0.30 | 0.8 | 12.8 | 268 |
| 5G4 | 56/0.30 | 0.8 | 14.2 | 334 |
| 6G4 | 56/0.30 | 0.8 | 14.9 | 398 |
| 7G4 | 56/0.30 | 0.8 | 16.4 | 458 |
| 8G4 | 56/0.30 | 0.8 | 17.6 | 523 |
| 10G4 | 56/0.30 | 0.8 | 20.1 | 674 |
| 12G4 | 56/0.30 | 0.8 | 20.1 | 688 |
| 14G4 | 56/0.30 | 0.8 | 21.5 | 805 |
| 1×6 | 81/0.30 | 0.9 | 6.1 | 83 |
| 2×6 | 81/0.30 | 0.9 | 11.6 | 213 |
| 3G6 | 81/0.30 | 0.9 | 12.4 | 279 |
| 4G6 | 81/0.30 | 0.9 | 13.8 | 341 |
| 5G6 | 81/0.30 | 0.9 | 15.8 | 494 |
| 6G6 | 81/0.30 | 0.9 | 16.7 | 519 |
| 7G6 | 81/0.30 | 0.9 | 18.3 | 616 |
| 1×10 | 78/0.40 | 1.0 | 7.7 | 136 |
| 2×10 | 78/0.40 | 1.0 | 14.7 | 351 |
| 3G10 | 78/0.40 | 1.0 | 15.7 | 457 |
| 4G10 | 78/0.40 | 1.0 | 17.5 | 590 |
| 5G10 | 78/0.40 | 1.0 | 19.6 | 746 |
| 6G10 | 78/0.40 | 1.0 | 21.7 | 875 |
| 7G10 | 78/0.40 | 1.0 | 23.7 | 1024 |
| 1×16 | 119/0.40 | 1.1 | 9.1 | 204 |
| 2×16 | 119/0.40 | 1.1 | 17.7 | 530 |
| 3G16 | 119/0.40 | 1.1 | 19.3 | 707 |
| 4G16 | 119/0.40 | 1.1 | 21.5 | 919 |
| 5G16 | 119/0.40 | 1.1 | 23.9 | 1148 |
| 6G16 | 119/0.40 | 1.1 | 26.2 | 1369 |
| 7G16 | 119/0.40 | 1.1 | 28.9 | 1569 |
| 1×25 | 182/0.40 | 1.3 | 10.9 | 308 |
| 2×25 | 182/0.40 | 1.3 | 21.3 | 792 |
| 3G25 | 182/0.40 | 1.3 | 22.7 | 977 |
| 4G25 | 182/0.40 | 1.3 | 25.4 | 1299 |
| 5G25 | 182/0.40 | 1.3 | 28.1 | 1630 |
| 6G25 | 182/0.40 | 1.3 | 31.1 | 1964 |
| 7G25 | 182/0.40 | 1.3 | 34.5 | 2351 |
| 1×35 | 266/0.40 | 1.3 | 12.1 | 414 |
| 2×35 | 266/0.40 | 1.3 | 23.7 | 1050 |
| 3G35 | 266/0.40 | 1.3 | 25.5 | 1325 |
| 4G35 | 266/0.40 | 1.3 | 28.4 | 1747 |
| 5G35 | 266/0.40 | 1.3 | 31.3 | 2173 |
| 1×50 | 378/0.40 | 1.6 | 14.9 | 589 |
| 2×50 | 378/0.40 | 1.6 | 29.3 | 1471 |
| 3G50 | 378/0.40 | 1.6 | 31.5 | 3133 |
| 4G50 | 378/0.40 | 1.6 | 35.3 | 2514 |
| 5G50 | 378/0.40 | 1.6 | 39.1 | 3133 |
| 1×70 | 348/0.50 | 1.6 | 17.1 | 800 |
| 2×70 | 348/0.50 | 1.6 | 33.7 | 1982 |
| 3G70 | 348/0.50 | 1.6 | 36.4 | 2585 |
| 4G70 | 348/0.50 | 1.6 | 40.3 | 3390 |
| 5G70 | 348/0.50 | 1.6 | 44.5 | 4233 |
| 1×95 | 444/0.50 | 1.8 | 19.2 | 1054 |
| 2×95 | 444/0.50 | 1.8 | 37.5 | 2565 |
| 3G95 | 444/0.50 | 1.8 | 40.0 | 3326 |
| 4G95 | 444/0.50 | 1.8 | 45.3 | 4451 |
| 5G95 | 444/0.50 | 1.8 | 50.7 | 5602 |
